LensTip.com

Lens review

Samyang AF 24 mm f/1.8 FE

7 September 2021
Maciej Latałło

5. Chromatic and spherical aberration

Chromatic aberration

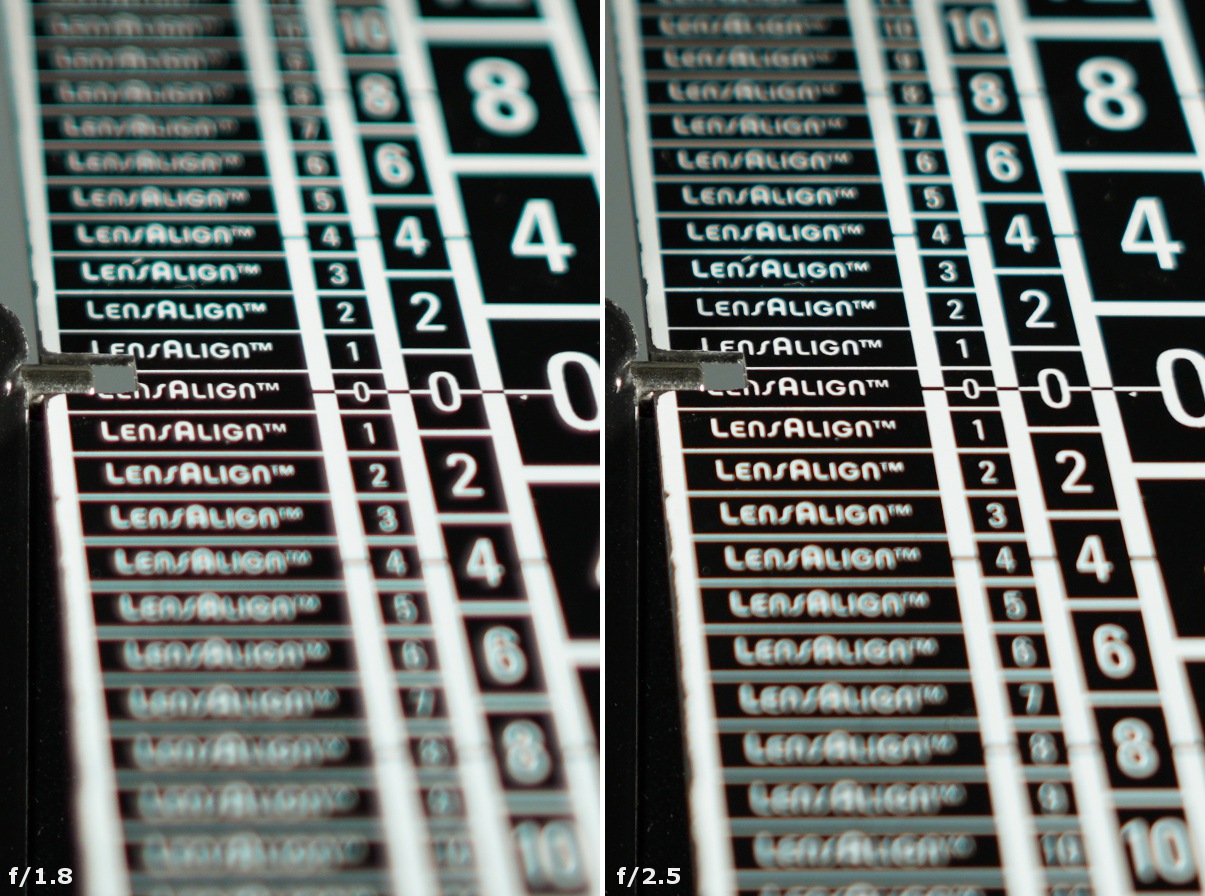

The Samyang AF 24 mm f/1.8 FE still experiences some problems in this area. They mainly concern longitudinal chromatic aberration, which can be noticed without any problems by f/1.8 and on stopping down the aperture by 1 EV as well. Taking into account the number of special elements in the construction of this lens, especially two made of low dispersion glass, this kind of performance let us down a bit.

Samyang AF 24 mm f/1.8 FE - Chromatic and spherical aberration

What about lateral chromatic aberration correction? A graph below presents the results for both types of detectors.

Samyang AF 24 mm f/1.8 FE - Chromatic and spherical aberration


On the edge of full frame this aberration increases on stopping down the aperture from f/1.8 to f/5.6, ranging from practically zero to 0.03%. As any result below 0.04% we qualify as a very low level, here we have no reasons to complain.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

In previous chapter we mentioned the fact that on the edge of the APS-C sensor you deal with a higher level of chromatic aberration. It increases on the edge of full frame as well with stopping down the lens but this time it ranges from 0.03% to over 0.07%. It is not a level you can call bothersome so also in this case our assessment remains positive.

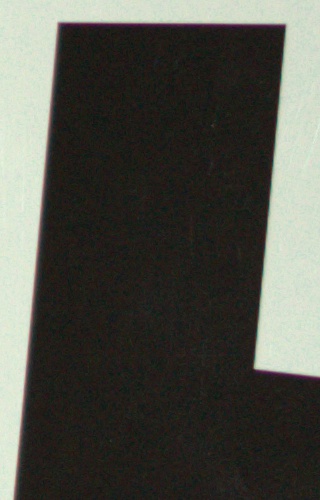

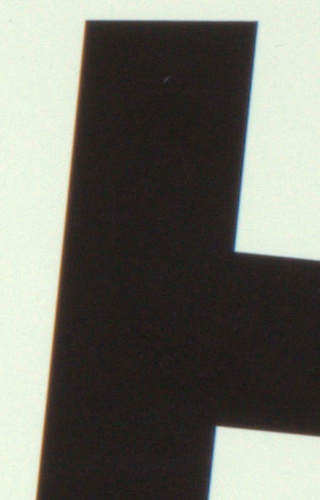

A7R III, RAW, FF, f/1.8 A7R III, RAW, APS-C, f/16.0
Samyang AF 24 mm f/1.8 FE - Chromatic and spherical aberration Samyang AF 24 mm f/1.8 FE - Chromatic and spherical aberration

Spherical aberration

It would be difficult to notice any distinct focus shift in first photos of this chapter so we think the lens doesn't have any problems with that.

When you look at out-of-focus circles produced before and behind the focal point you see their appearance is far from perfect; still, there are no distinct differences between them. To sum up you can say the tested lens doesn't experience any serious problems with correction of spherical aberration.

A7R III, f/1.8, before A7R III, f/1.8, after
Samyang AF 24 mm f/1.8 FE - Chromatic and spherical aberration Samyang AF 24 mm f/1.8 FE - Chromatic and spherical aberration
