5. Chromatic and spherical aberration

Chromatic aberration

The optical construction of the Fujinon 1.4/33 features as many as three elements made of low dispersion glass and images, shown below, prove these elements perform as they should. It would be difficult to notice any colouring in out-of-focus images even at the maximum relative aperture. It indicates that the lens corrects longitudinal chromatic aberration properly well.

Fujifilm Fujinon XF 33 mm f/1.4 R LM WR - Chromatic and spherical aberration

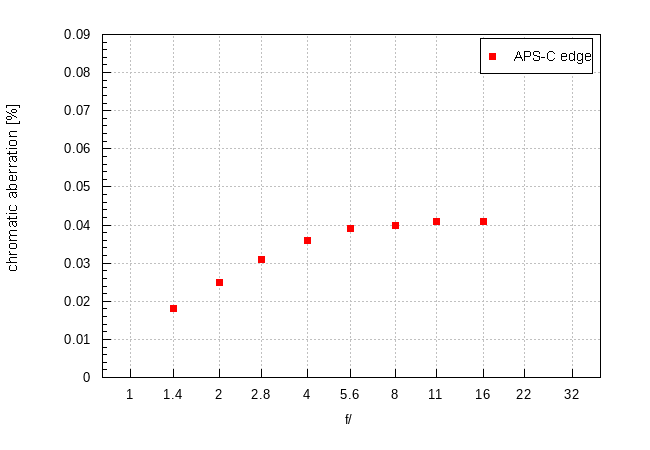

Lateral chromatic aberration can be described in similar terms. Let's glance at a graph below.

Fujifilm Fujinon XF 33 mm f/1.4 R LM WR - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


The aberration increases with stopping down the aperture but its values are within a range we describe as very low. It seems you won't have any problems whatsoever with this variant of chromatic aberration.

Fujifilm X-T2, RAW, f/1.4 Fujifilm X-T2, RAW, f/11.0
Fujifilm Fujinon XF 33 mm f/1.4 R LM WR - Chromatic and spherical aberration Fujifilm Fujinon XF 33 mm f/1.4 R LM WR - Chromatic and spherical aberration

Spherical aberration

In first photos of this chapter you can notice a very slight focus shift towards greater distances on stopping down the aperture by 1 EV. The effect is not very conspicuous but it might indicate that spherical aberration isn't corrected perfectly well.

It is also confirmed by the appearance of defocused circles of light we got before and behind the focal point – even if differences between them aren't that big they aren't identical either.

Fujifilm X-T2, f/1.4, before Fujifilm X-T2, f/1.4, after
Fujifilm Fujinon XF 33 mm f/1.4 R LM WR - Chromatic and spherical aberration Fujifilm Fujinon XF 33 mm f/1.4 R LM WR - Chromatic and spherical aberration
