Lens review

Fujifilm Fujinon XF 33 mm f/1.4 R LM WR

23 December 2021
Maciej Latałło

8. Vignetting

Let's check the vignetting performance of the tested lens both on JPEG and RAW files developped by thrid-party software.

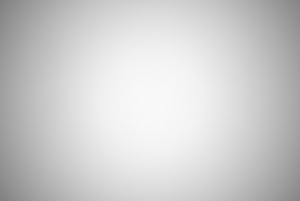

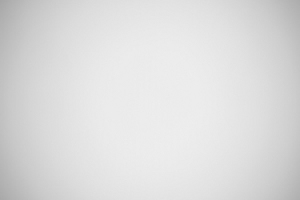

X-E1, JPEG, f/1.4 X-E1, RAW, f/1.4
Fujifilm Fujinon XF 33 mm f/1.4 R LM WR - Vignetting Fujifilm Fujinon XF 33 mm f/1.4 R LM WR - Vignetting

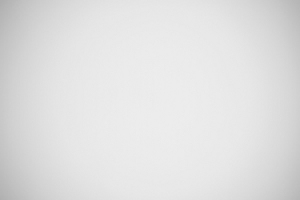

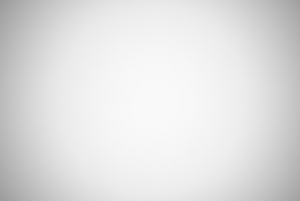

X-E1, JPEG, f/2.0 X-E1, RAW, f/2.0
Fujifilm Fujinon XF 33 mm f/1.4 R LM WR - Vignetting Fujifilm Fujinon XF 33 mm f/1.4 R LM WR - Vignetting

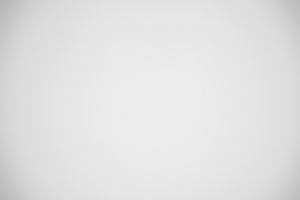

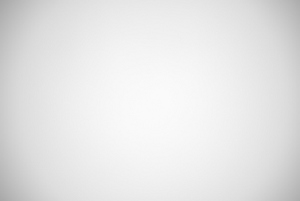

X-E1, JPEG, f/2.8 X-E1, RAW, f/2.8
Fujifilm Fujinon XF 33 mm f/1.4 R LM WR - Vignetting Fujifilm Fujinon XF 33 mm f/1.4 R LM WR - Vignetting


It's clear that on JPEG files vignetting is corrected automatically and you cannot switch it off. As a result you see very moderate values – by f/1.4 brightness loss in frame corners amounts to 27% (−0.92 EV) and it decreases to 24% (−0.78 EV) on stopping down the aperture to f/2.0. By f/2.8 this aberration drops to 22% (−0.71 EV), and by f/4.0 it is already 14% (−0.45 EV). In case of f/5.6 and higher apertures you deal with a level of 10% (−0.32 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

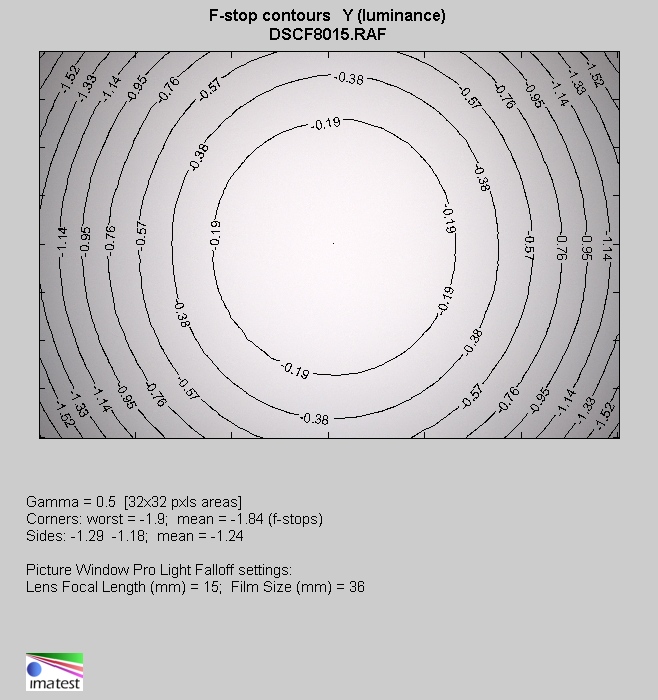

The real situation can only be perceived on RAW files. In this case, at the maximum relative aperture, vignetting is 47% (−1.84 EV). It's a lot but if you take into account the aperture and angle of view of this lens you can say the Fujinon doesn't fare weaker than its rivals. What's more, this result is, within margin of error, practically the same as the result of its predecessor.

It's a bit surprising that vignetting decreases so slowly on stopping down. By f/2.0 you deal with a level of 36% (−1.30 EV), and by f/2.8 the aberration, described in this chapter, drops to 31% (−1.08 EV). By the f/4.0 aperture we got a result of 25% (−0.83 EV), and by f/5.6 and higher apertures vignetting remains more or less the same, keeping close to 22% (−0.72 EV).

Fujifilm X-T2, RAW, f/1.4
Fujifilm Fujinon XF 33 mm f/1.4 R LM WR - Vignetting
