LensTip.com

Lens review

Sony FE 24-105 mm f/4 G OSS

11 January 2023
Maciej Lata³³o

6. Distortion

When you attach the Sony FE 24-105 mm f/4 G OSS to a camera, an option of distortion correction control gets disabled in its menu. It's quite obvious that optics specialists meant the software to do the job of optics and the camera forces automatic correction of this aberration.

It also means additional work for the testers. We have to check distortion levels not only on the APS-C sensor and on full frame but also for corrected JPEG files and uncorrected RAW files. We get four combinations that have to be checked at different focal lengths.

Let's start with the easiest case – the smaller APS-C sensor plus corrected JPEG files. Below you can find thumbnails of images we got on such a combination at 24, 35, 50, 70, and 105 mm.


Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

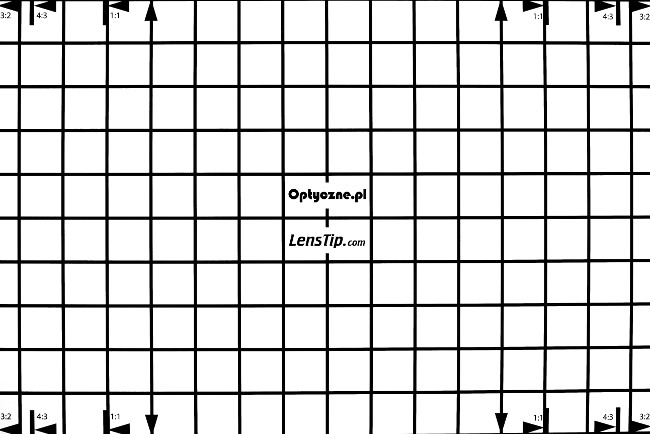

Sony A7R III, APS-C, JPEG, 24 mm
Sony FE 24-105 mm f/4 G OSS - Distortion

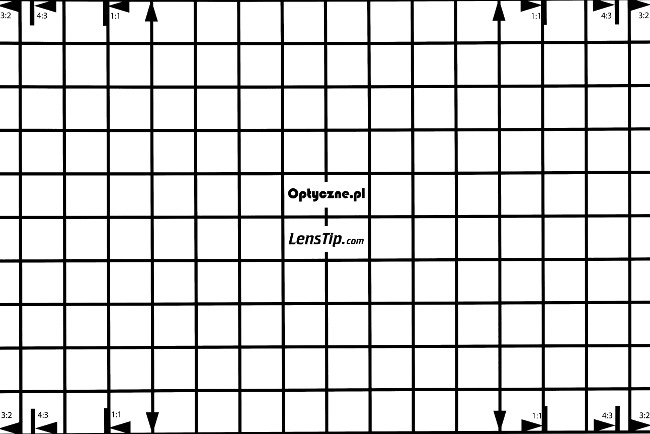

Sony A7R III, APS-C, JPEG, 35 mm
Sony FE 24-105 mm f/4 G OSS - Distortion

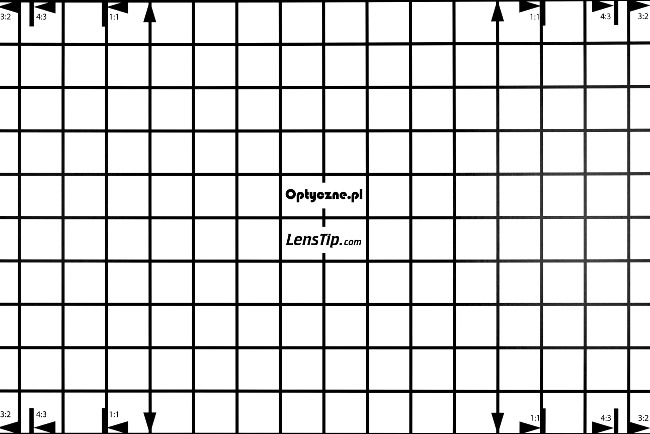

Sony A7R III, APS-C, JPEG, 50 mm
Sony FE 24-105 mm f/4 G OSS - Distortion

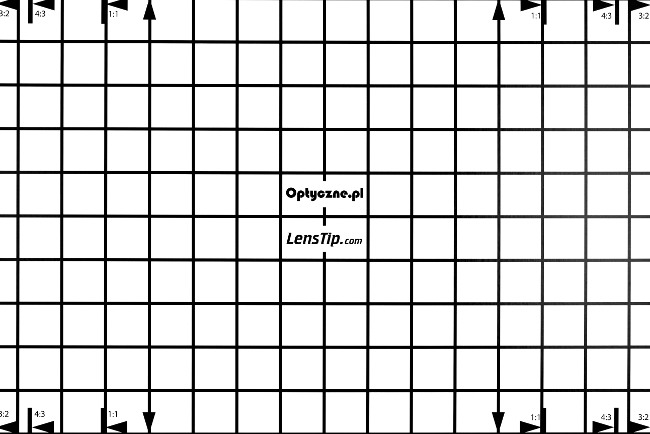

Sony A7R III, APS-C, JPEG, 70 mm
Sony FE 24-105 mm f/4 G OSS - Distortion

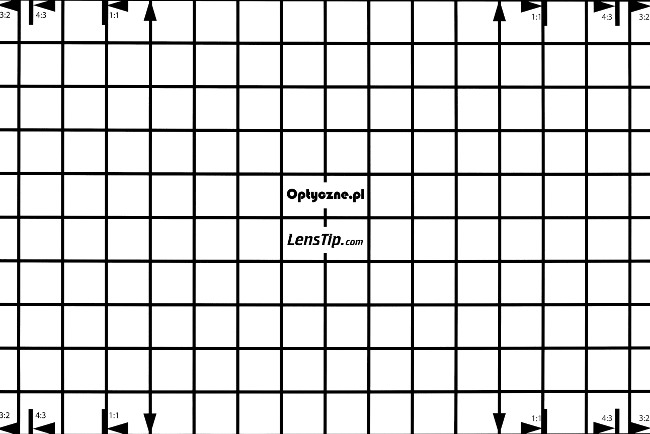

Sony A7R III, APS-C, JPEG, 105 mm
Sony FE 24-105 mm f/4 G OSS - Distortion

In this case distortion won't be any problem – all results are low.From the minimum to the maximum focal length they respectively amount to: −0.57%, +0.32%, +0.18%, +0.05%, −0.07%. Very slight chances to notice distortion you get only at 24 mm and from 50 to 105 mm the results are, by and large, zero.

Now let's check how the situation changes when you pass to uncorrected RAW files.

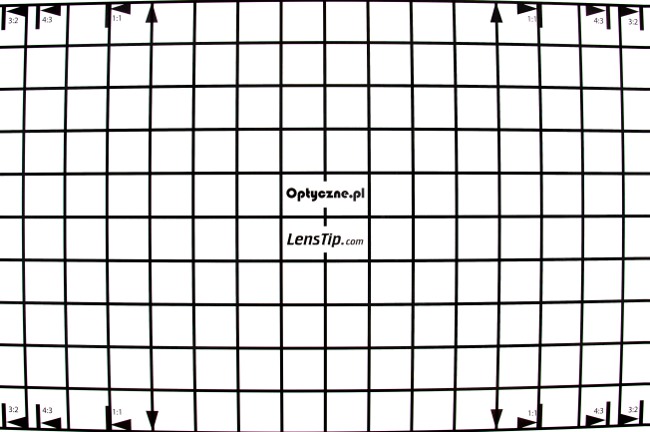

Sony A7R III, APS-C, RAW, 24 mm
Sony FE 24-105 mm f/4 G OSS - Distortion

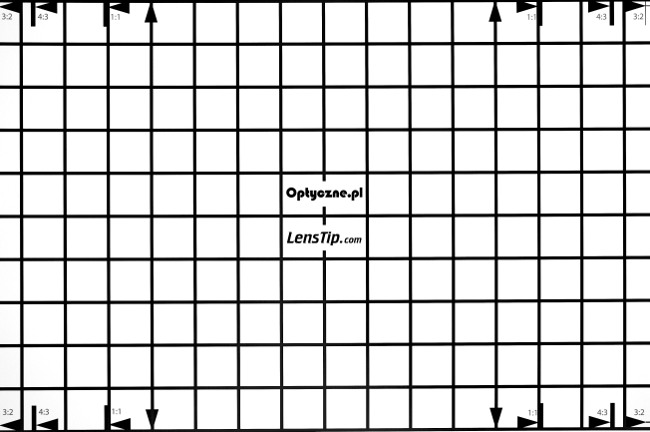

Sony A7R III, APS-C, RAW, 35 mm
Sony FE 24-105 mm f/4 G OSS - Distortion

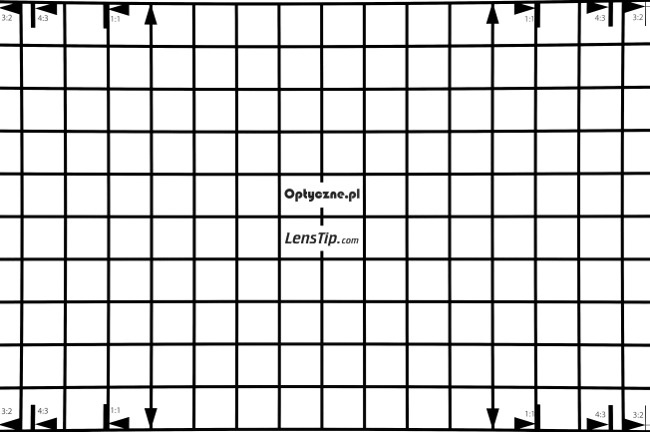

Sony A7R III, APS-C, RAW, 50 mm
Sony FE 24-105 mm f/4 G OSS - Distortion

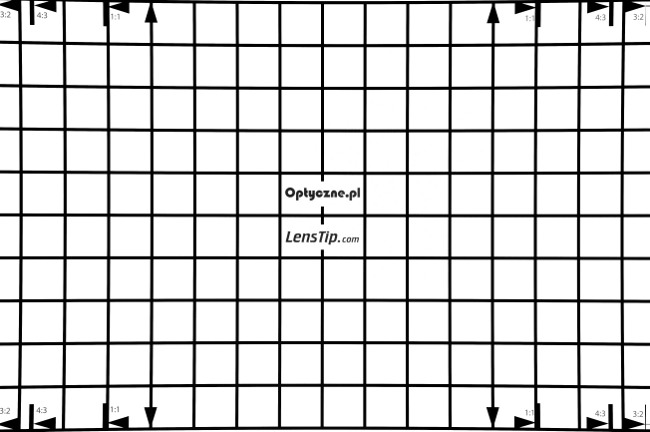

Sony A7R III, APS-C, RAW, 70 mm
Sony FE 24-105 mm f/4 G OSS - Distortion

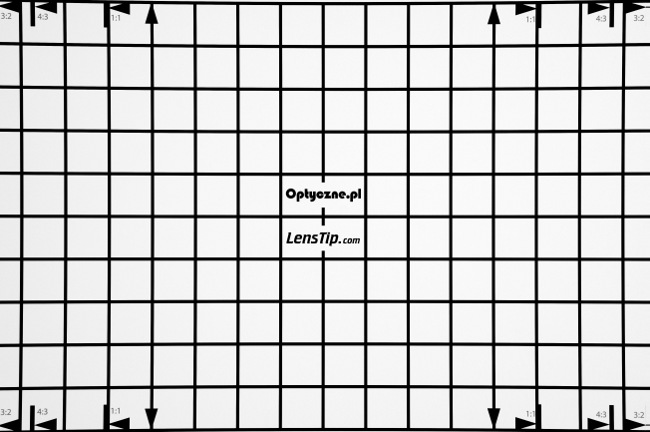

Sony A7R III, APS-C, RAW, 105 mm
Sony FE 24-105 mm f/4 G OSS - Distortion

This time the chances to notice distortion increase noticeably - you won't get any problem with observing it at the shortest focal length with a result of −2.94%, a quite high level taking the detector size into account. Fortunately by 35 mm geometric deformatons get to practically zero, reaching just +0.14%. Then they start to increase once again but they turn into the pincushion variety. By 50 mm you see a result of +1.12%, and by 70 mm +1.48%. The maximum focal length shows a slight decrease of distortion to a level of +1.31%.

Now let's check how the situation changes when you progress to full frame. We are going to start our analysis with corrected JPEG files.

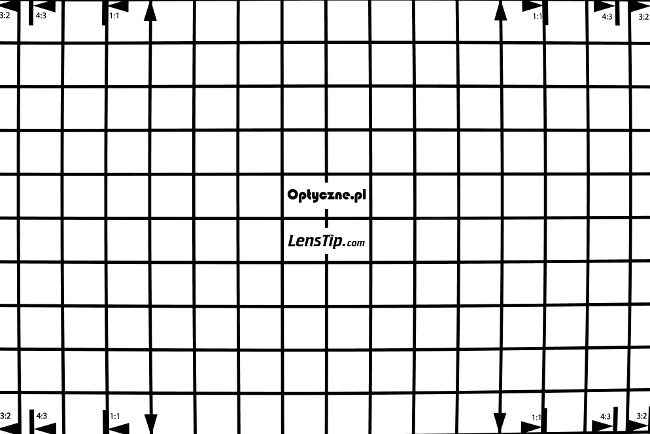

Sony A7R III, FF, JPEG, 24 mm
Sony FE 24-105 mm f/4 G OSS - Distortion

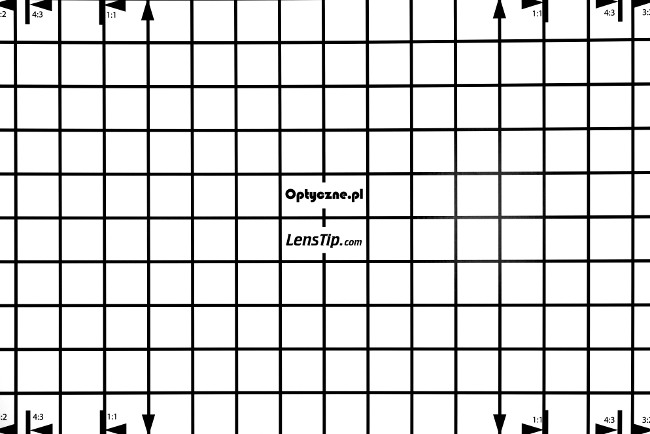

Sony A7R III, FF, JPEG, 35 mm
Sony FE 24-105 mm f/4 G OSS - Distortion

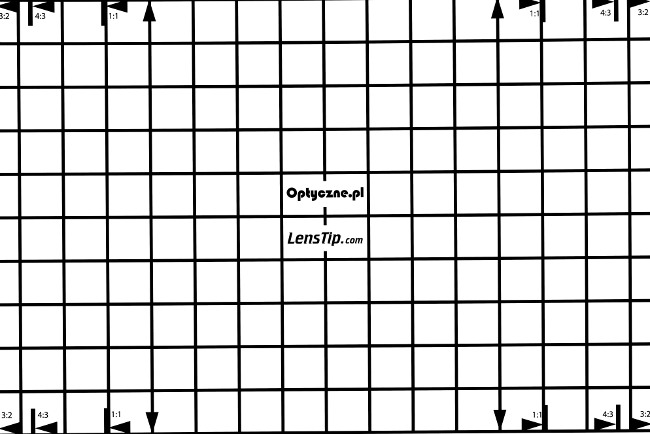

Sony A7R III, FF, JPEG, 50 mm
Sony FE 24-105 mm f/4 G OSS - Distortion

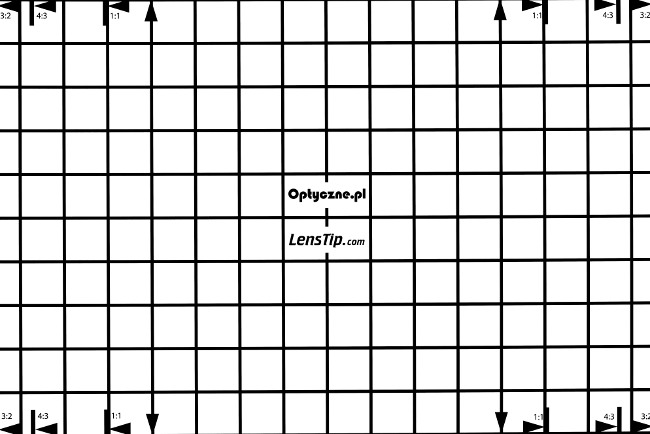

Sony A7R III, FF, JPEG, 70 mm
Sony FE 24-105 mm f/4 G OSS - Distortion

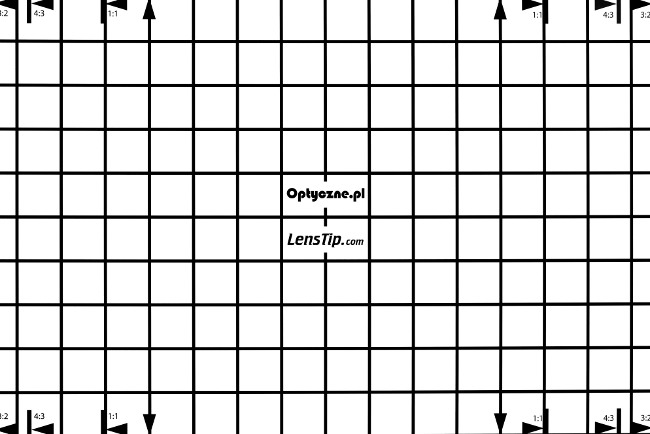

Sony A7R III, FF, JPEG, 105 mm
Sony FE 24-105 mm f/4 G OSS - Distortion

At the shortest focal length the software of the camera doesn't correct distortion completely because you can notice barrel deformations of −1.05%. At 35 mm they change into slight pincushion, reaching +0.58%. This pincushion decreases to +0.31% at 50 mm and at the 70 and 105 mm focal lengths you see a return of barrel but its level is very low; we got, respectively, −0.01% oraz −0.14%.

Finally, let's deal with deformations you can notice on full frame using uncorrected RAW files.

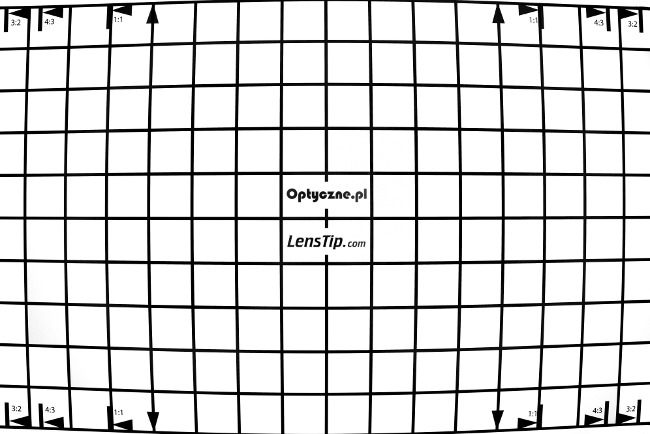

Sony A7R III, FF, RAW, 24 mm
Sony FE 24-105 mm f/4 G OSS - Distortion

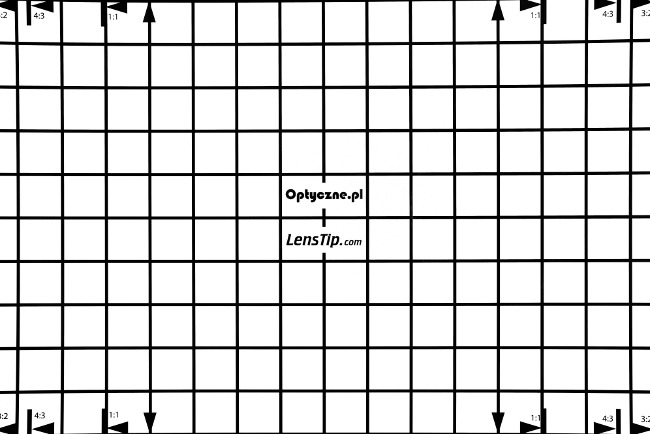

Sony A7R III, FF, RAW, 35 mm
Sony FE 24-105 mm f/4 G OSS - Distortion

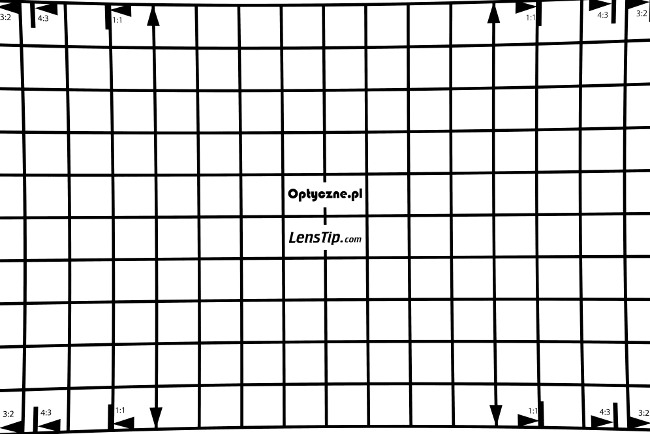

Sony A7R III, FF, RAW, 50 mm
Sony FE 24-105 mm f/4 G OSS - Distortion

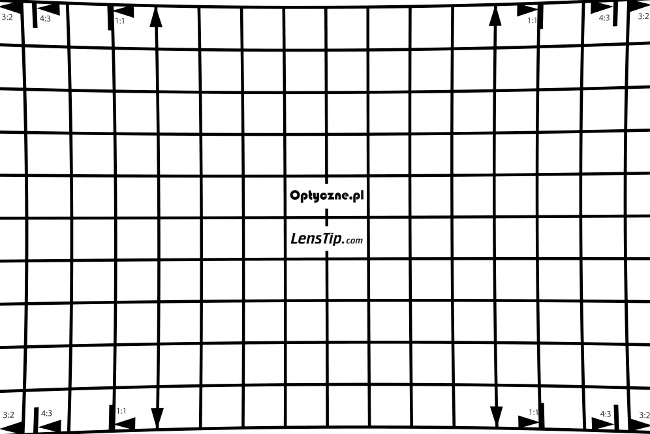

Sony A7R III, FF, RAW, 70 mm
Sony FE 24-105 mm f/4 G OSS - Distortion

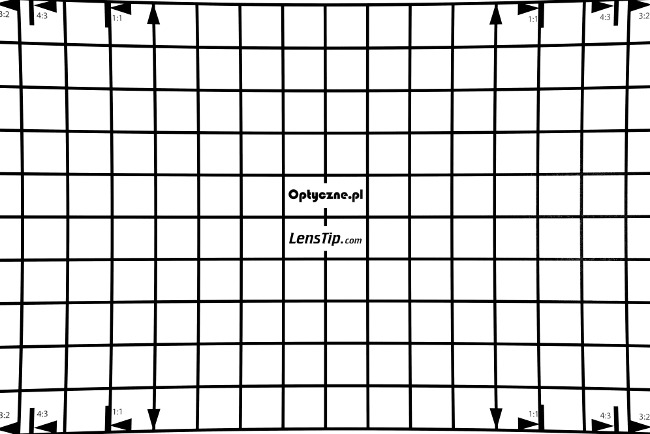

Sony A7R III, FF, RAW, 105 mm
Sony FE 24-105 mm f/4 G OSS - Distortion

In this case there are really a lot of problems. You can start from high barrel distortion, reaching as much as −4.59%, which you can see at 24 mm. With the increase of the focal length this barrel decreases, then gets to zero, and at 35 mm it becomes slight pincushion of +0.74%. This pincushion becomes a visible problem already at 50 mm, where it reaches as high as +2.73%, and at 70 mm it becomes really huge with a result of +3.41%. Fortunately at 105 mm distortion decreases slightly, amounting to just +3.01%.

The optics of the Sony FE 24-105 mm f/4 G OSS doesn't even try to correct distortion and, as a result, that aberration is clearly visible practically at all focal lengths apart from those close to 30-35 mm.
