LensTip.com

Lens review

OM System M.Zuiko Digital ED 90 mm f/3.5 Macro IS PRO

8 February 2023
Maciej Latałło

5. Chromatic and spherical aberration

Chromatic aberration

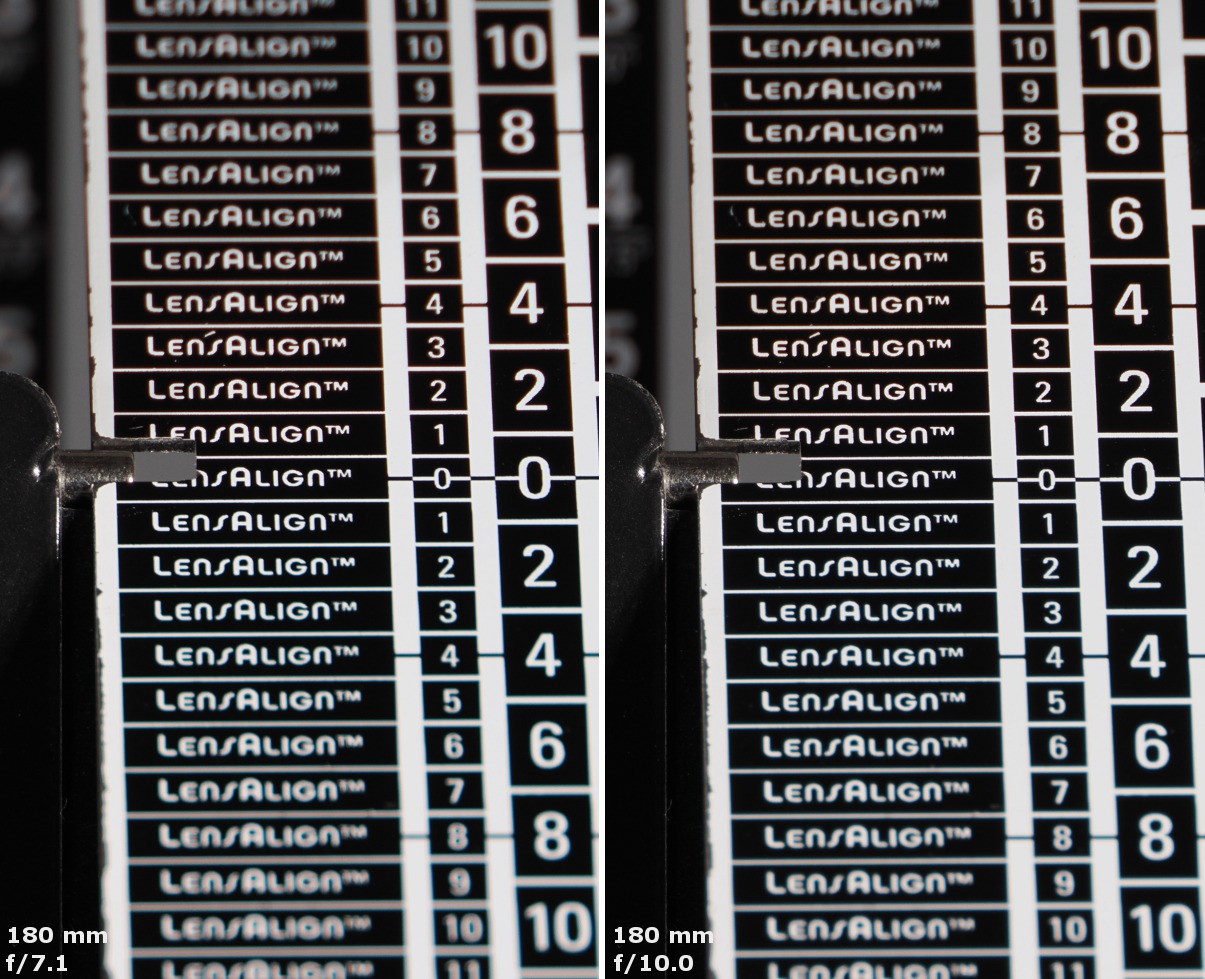

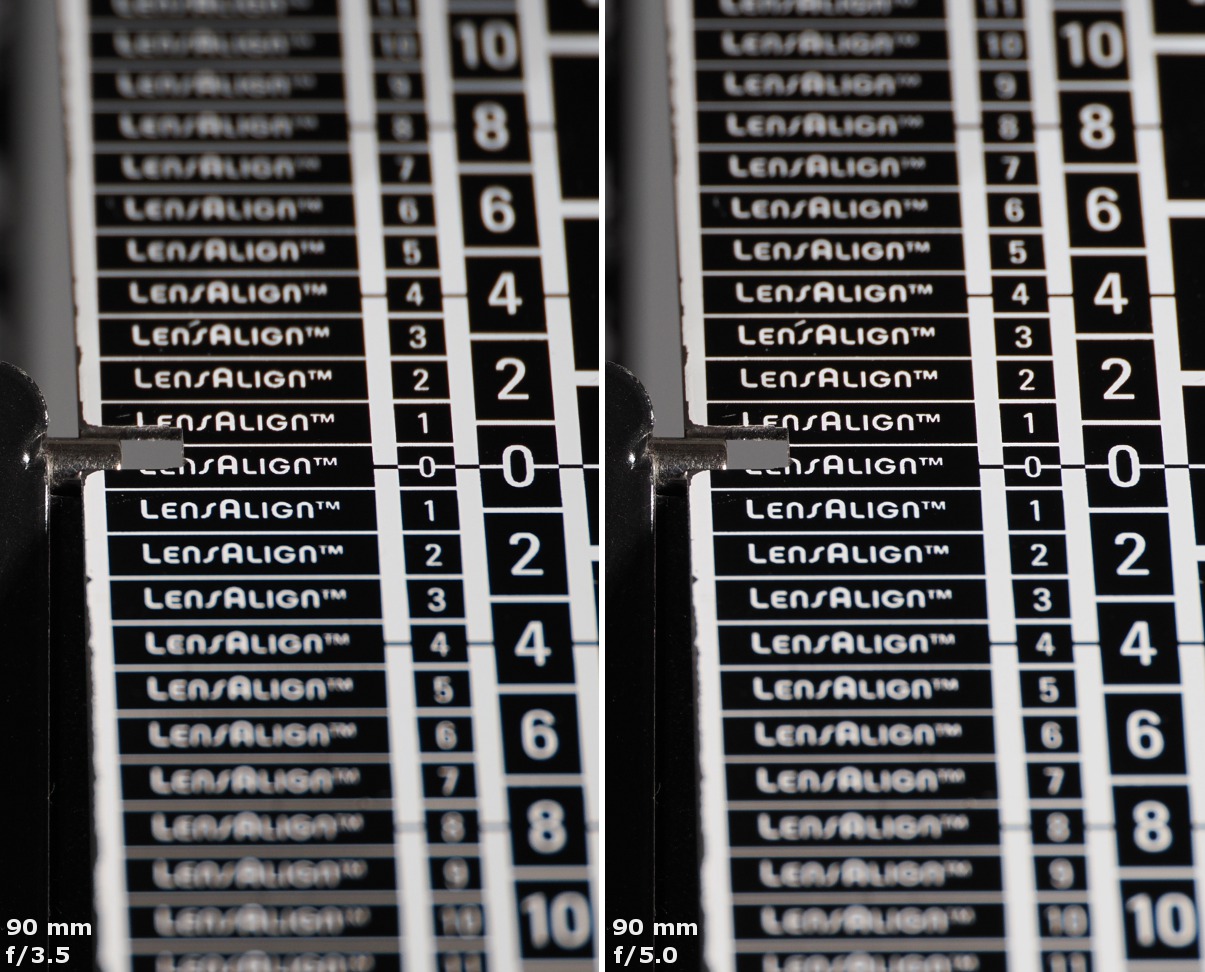

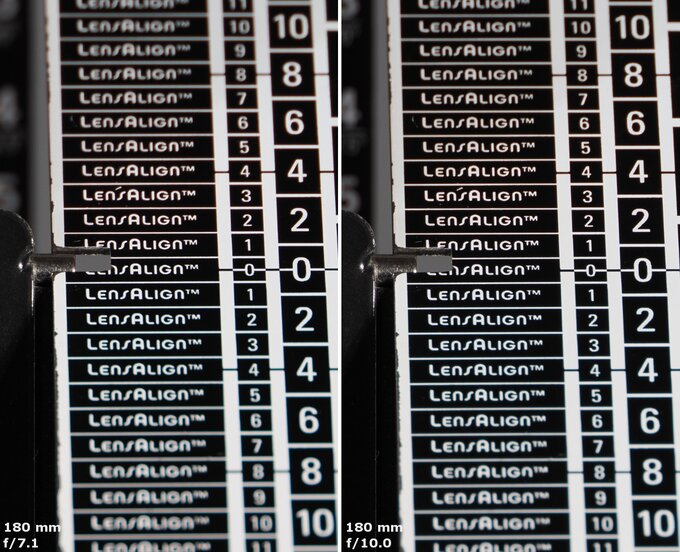

The tested lens itself doesn't have practically any problems with longitudinal chromatic aberration but it does appear after attaching the MC-20 teleconverter. 'Colouring' makes itself bothtersome, with images before the focus getting blue-green and these behind the focus becoming orange-red.

OM System M.Zuiko Digital ED 90 mm f/3.5 Macro IS PRO - Chromatic and spherical aberration

OM System M.Zuiko Digital ED 90 mm f/3.5 Macro IS PRO - Chromatic and spherical aberration

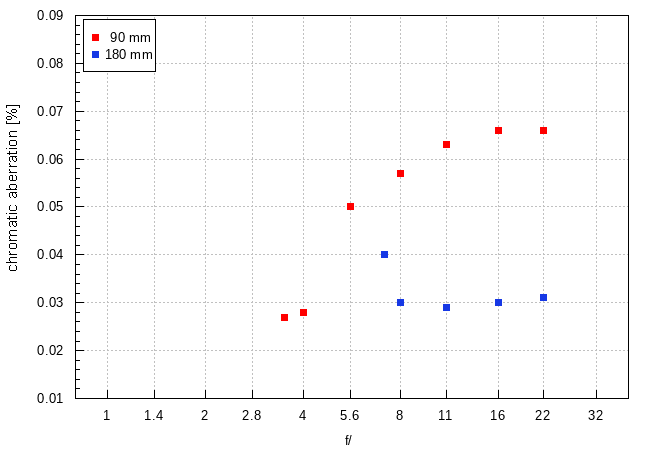

In case of lateral chromatic aberration you see the reverse process. Let's glance at a graph below.

Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

OM System M.Zuiko Digital ED 90 mm f/3.5 Macro IS PRO - Chromatic and spherical aberration


This time, after attaching the converter, the aberration decreases slightly but it should be mentioned that its level didn't seem bothersome even before. The aberration increased quickly from less than 0.03% near the maximum relative aperture to over 0.06% at apertures from f/11 onwards. As you see, even these highest values still fit a range we consider to be low.

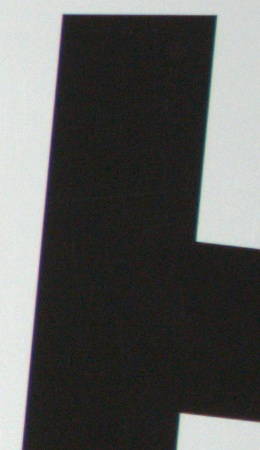

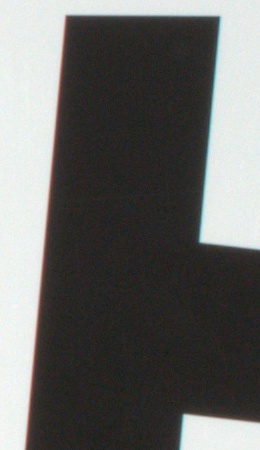

Olympus E-M5 II, RAW, f/3.5 Olympus E-M5 II, RAW, f/16.0
OM System M.Zuiko Digital ED 90 mm f/3.5 Macro IS PRO - Chromatic and spherical aberration OM System M.Zuiko Digital ED 90 mm f/3.5 Macro IS PRO - Chromatic and spherical aberration


Spherical aberration

The tested lens doesn't have any problems with spherical aberration, no matter whether you use it on its own or with the teleconverter. We didn't notice any focus shift; circles of out-of-focus points of light were perhaps not exactly the same but the differences between them we found quite inconspicuous.

E-M5 II, 90 mm, f/3.5, before E-M5 II, 90 mm, f/3.5, after
OM System M.Zuiko Digital ED 90 mm f/3.5 Macro IS PRO - Chromatic and spherical aberration OM System M.Zuiko Digital ED 90 mm f/3.5 Macro IS PRO - Chromatic and spherical aberration

E-M5 II, 180 mm (TC), f/7.1, before E-M5 II, 180 mm (TC), f/7.1, after
OM System M.Zuiko Digital ED 90 mm f/3.5 Macro IS PRO - Chromatic and spherical aberration OM System M.Zuiko Digital ED 90 mm f/3.5 Macro IS PRO - Chromatic and spherical aberration
