LensTip.com

Lens review

Tokina AT-X M35 PRO DX 35 mm f/2.8

9 May 2009
Arkadiusz Olech

8. Vignetting



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

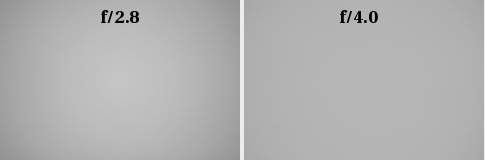

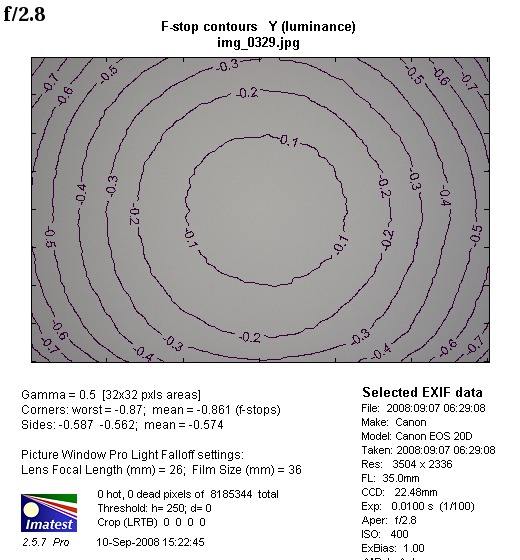

Using the maximum aperture makes the luminance loss at the corners of the frame visible. It amounts 26% (-0.86 EV), which is an average value in this grade of equipment. Fortunately, the problem virtually disappears as we stop down to F/4.0. That’s where vignetting falls to the negligible level of 8% and is impossible to spot in real-life photos.

Tokina AT-X M35 PRO DX 35 mm f/2.8 - Vignetting

Tokina AT-X M35 PRO DX 35 mm f/2.8 - Vignetting
