8. Vignetting

This aberration is hard to avoid in ultra-wide lenses and particularly in fast ones. Take Canon 10-22 mm, which produced a score of 47% at 10 mm. Nikkor 12-24 on the other hand, shows the largest ‘vignette’ at its maximum focal length, namely 38% at 24 mm.

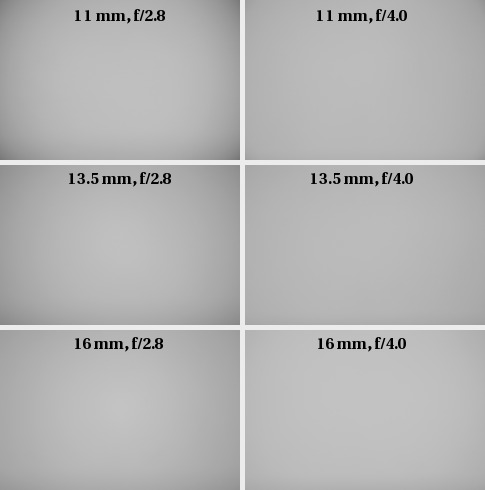

Tokina AT-X 116 PRO DX AF 11-16 mm f/2.8 - Vignetting


How does Tokina perform, compared to these? At the focal length of 11 mm and maximum aperture, the luminance loss in the corners reaches 36% (-1,29 EV). At F/4.0, the vignetting amounts 19%, 13% at F/5.6 and finally, at F/8, it nears 10%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

In the middle of the range, the situation improves noticeably. Corner darkening at maximum aperture amounts 27% (-0,92 EV). It becomes virtually invisible (12%) at F/4.0 so there’s no need to stop down any further.

The vignetting is smallest at maximum focal length where for maximum aperture it reaches 20% (-0.66 EV). Again, stopping down by 1 EV causes no forther problems with this aberration (12%).

While Tokina’s vignetting is hard to miss, it still outperforms its competitors in this category, being the fastest one.

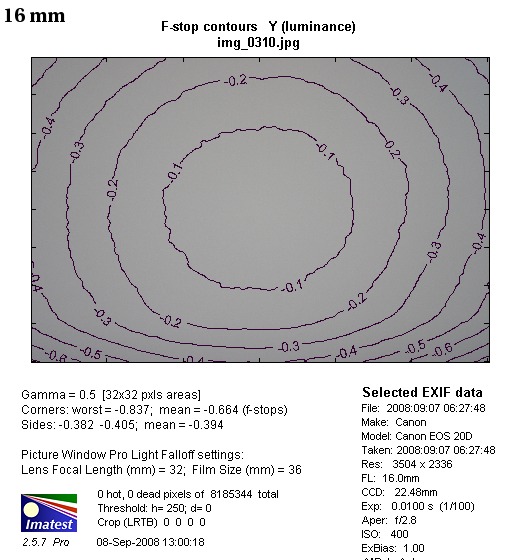

Tokina AT-X 116 PRO DX AF 11-16 mm f/2.8 - Vignetting


Tokina AT-X 116 PRO DX AF 11-16 mm f/2.8 - Vignetting
