Lens review

Sigma 18-125 mm f/3.8-5.6 DC OS HSM

4 September 2009
Arkadiusz Olech

6. Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

As far as distortion is concerned, it’s hard not to expect it in a lens of these parameters, dimensions and price. It’s worth to emphasize that here Sigma performs much better than the competitors. Nikkors were weak in this category, showing a “barrel” at 18 mm of values from -4.6% to -5.0%, and at longer focal lengths a “pincushion” of a visible level of 2%. Sony 16-105 mm performed better, showing distortion of -4.67% at the wide angle, but at longer focal lengths didn’t cause any troubles recording results from 1.0% to 1.4%.

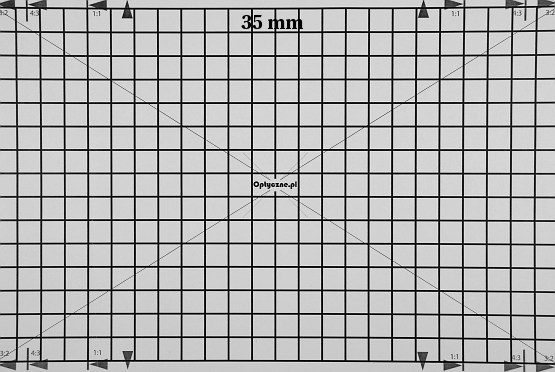

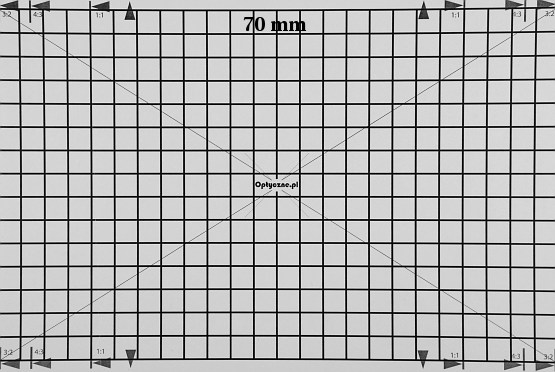

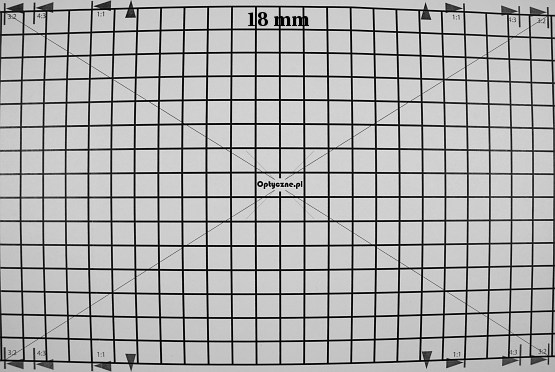

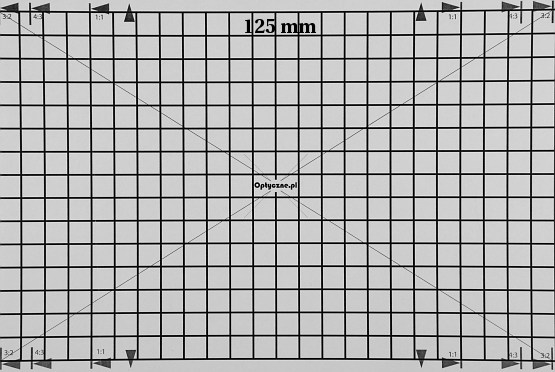

As we already mentioned, Sigma 18-125 mm OS comes out the best here. At the shortest focal length we can see a distinct barrel distortion, whose level was measured to be -4.25%. Together with increasing the focal length the aberration decreases very fast, changes sign and at 35 mm is pincushion with little troublesome value of 0.78%. Then the distortion is bigger, but still at an acceptable level of 1.37% at 70 mm and 1.19% at 125 mm.


Sigma 18-125 mm f/3.8-5.6 DC OS HSM - Distortion

Sigma 18-125 mm f/3.8-5.6 DC OS HSM - Distortion

Sigma 18-125 mm f/3.8-5.6 DC OS HSM - Distortion

Sigma 18-125 mm f/3.8-5.6 DC OS HSM - Distortion
