LensTip.com

Lens review

Sigma 70-200 mm f/2.8 II EX APO DG Macro HSM

15 September 2009
Arkadiusz Olech

6. Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Geometric aberrations at the edge of the frame, in this lens class, have never been a problem. You can remember that Nikkor 80-200 mm f/2.8 showed distortion in the range from -0.18% at the shortest focal length to 0.88% at the longest. With Nikkor 70-200 mm VR we had a range from -0.54 to 0.87%, with Canon 70-200 mm f/2.8 IS from -0.39% to 0.54%, and with the older Sigma from -0.47% to 0.80%.

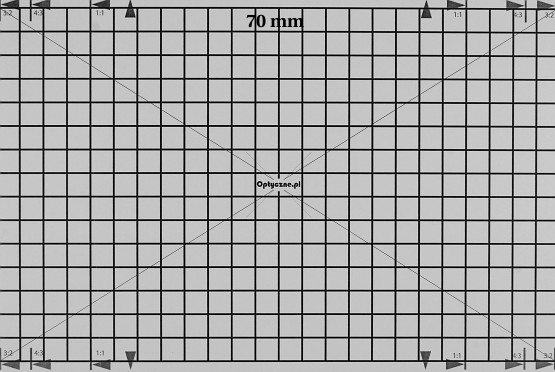

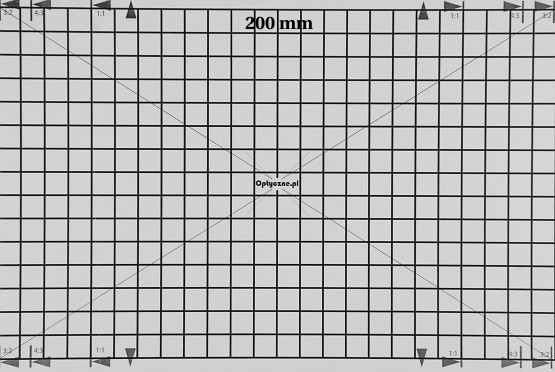

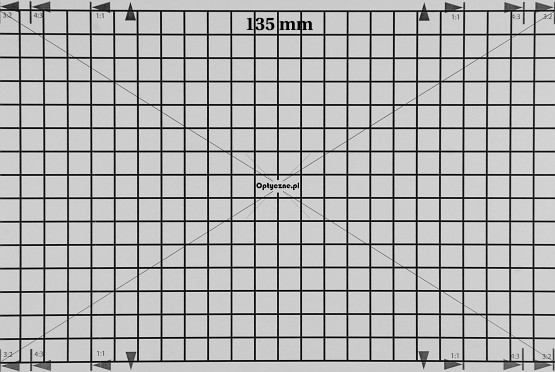

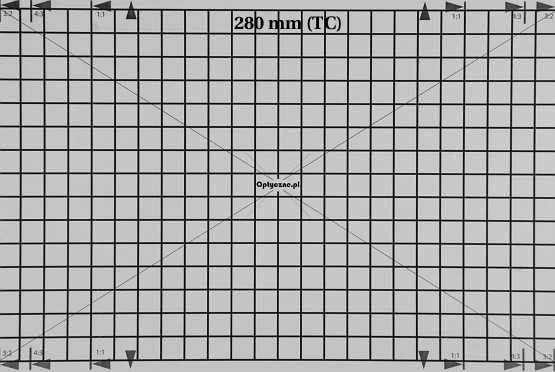

The successor doesn’t diverge much from the results recorded by the lenses listed above. At the shortest focal length we’re dealing with a barrel distortion of a minimum -0.24% value, which changes the sign and increases to 0.64% at 135 mm, to reach a maximum 0.94% value at 200 mm. After adding the converter aberrations lower slightly to 0.82%.


Sigma 70-200 mm f/2.8 II EX APO DG Macro HSM - Distortion

Sigma 70-200 mm f/2.8 II EX APO DG Macro HSM - Distortion

Sigma 70-200 mm f/2.8 II EX APO DG Macro HSM - Distortion

Sigma 70-200 mm f/2.8 II EX APO DG Macro HSM - Distortion
