Lens review

Tokina AT-X 535 PRO DX AF 50-135 mm f/2.8

22 September 2007
Arkadiusz Olech

4. Image resolution

When we look at MTF50 function chart which we get by analyzing center of the image (using RAW files from Canon 20D camera and analyzed by Imatest) we can say that we would like to see such a view always. It is almost ideal, only at 135 mm f/2.8 image could be better although even here it scores 30 lpmm which is good result.

This chart is an example of how zoom lenses should be made. High scores in all focal lengths, 40 lpmm level achieved and exceeded for wide range of steps and even for f/2.8. What else can we add? We can compare this with scores of Sigma 50-150 mm. Sigma can only compete with Tokina at 50 mm. For longer focal lengths it scores slightly lower and at the end it is significantly worse. To defend Sigma 50-150 mm we can add that it was harder to design and build because it has wider focal length range - 150 mm is 11% more than 135 mm.

Tokina AT-X 535 PRO DX AF 50-135 mm f/2.8 - Image resolution



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

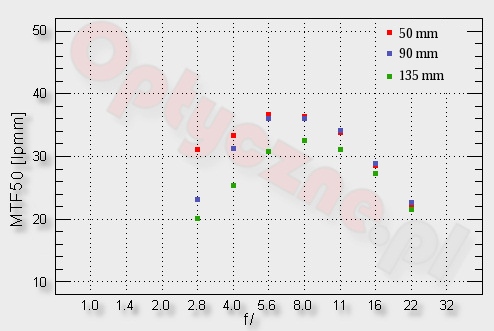

At the edge of the image, for focal length 50-90 mm Tokina can be compared even to good quality prime lenses such as 1.4/50 or 1.8/85 (Nikon or Canon brand). At 135 mm focal length scores are lower but still can exceed 30 lpmm which is considered good. So again, Tokina deserved our praise and defeated Sigma, which achieved similar scores only for 50 mm focal length.

Tokina AT-X 535 PRO DX AF 50-135 mm f/2.8 - Image resolution


Summarizing: if one can live without f/1.8-2.0 light then he can save some money and instead of buying 1.8/50, 1.8/85, 2.0/100 or 2.8/135 prime lenses he can buy Tokina 50-135 mm which has almost the same image sharpness. It may sound shocking and we were very curious how Tokina performs in our other test categories.
