LensTip.com

Lens review

Tokina AT-X 535 PRO DX AF 50-135 mm f/2.8

22 September 2007
Arkadiusz Olech

8. Vignetting

Tokina 50-135 f/2.8 is a tele zoom designed especially for small APS-C/DX detectors. We were curious how it performs in our next category: vignetting.

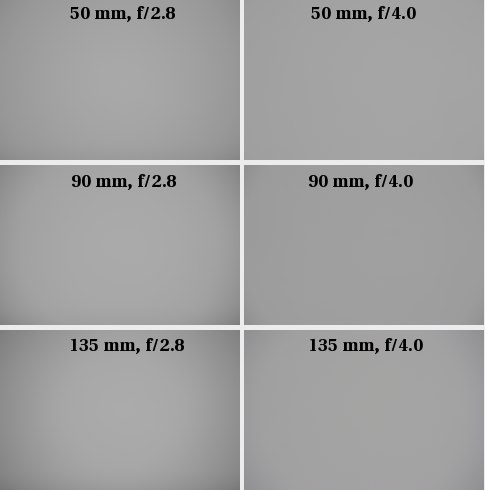

Tokina AT-X 535 PRO DX AF 50-135 mm f/2.8 - Vignetting

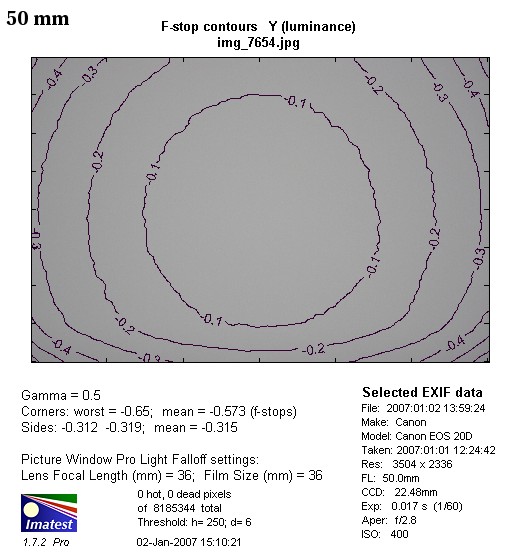

The situation is good at 50 mm. Here, at f/2.8, light falloff in corners is 18% (-0.57 f-stops) and when we stop down aperture to f/4 it lowers to 5% - a level which is insignificant.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Situation is worse for longer focal lengths but never reaches level that would make us complain about it. At 90 mm, f/2.8 vignetting is 18% ( -0.75 f-stops). And again, if we stop down aperture to f/4 it almost disappears (10%).

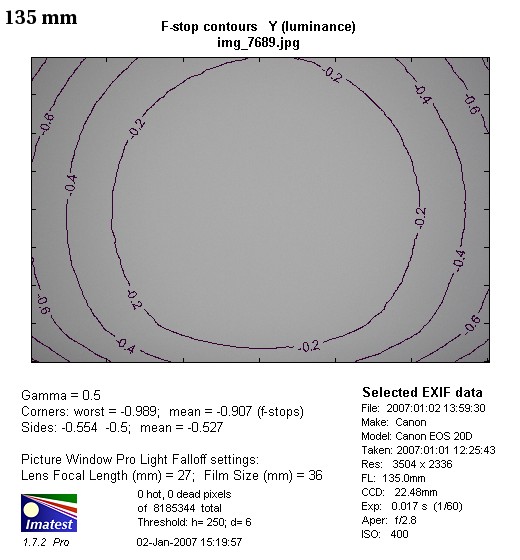

At 135 mm, f/2.8 light falloff in corners is 27% ( -0.91 f-stops). Here stopping down aperture to f/4 did not fix the problem and vignetting was still noticeable at level of 12%. However it almost disappeared (6%) when we stopped down to f/5.6.

In this category Tokina again won with Sigma, which at maximum aperture scored between 24% - 33%.

Tokina AT-X 535 PRO DX AF 50-135 mm f/2.8 - Vignetting

Tokina AT-X 535 PRO DX AF 50-135 mm f/2.8 - Vignetting
