Sigma 120-400 mm f/4.5-5.6 APO DG OS HSM

20 October 2009
Arkadiusz Olech

6. Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

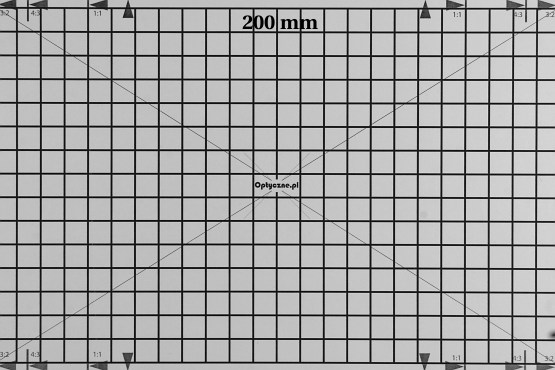

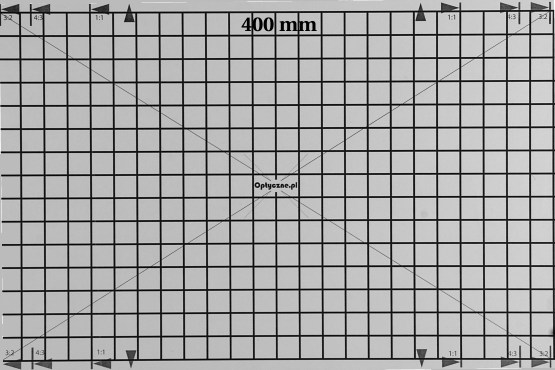

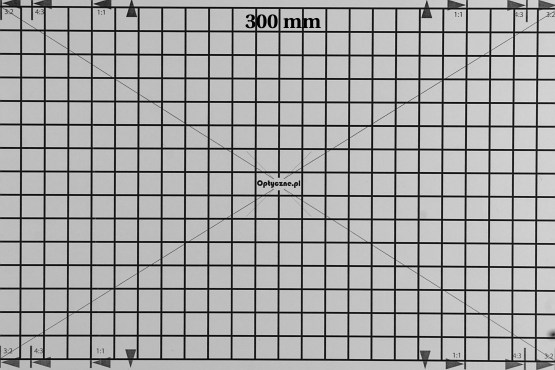

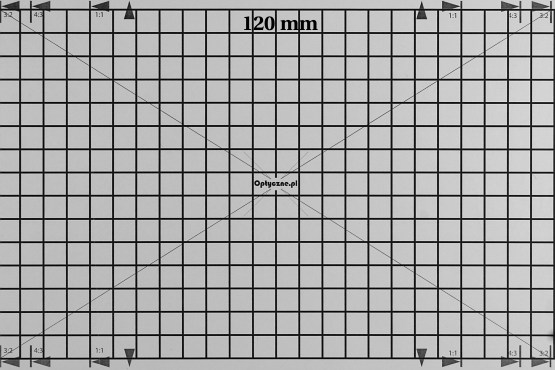

With distortion, similarly to chromatic aberration, there are no problems at any focal length. Geometric distortions at the edge of the frame do rise with the focal length, but even at 400 mm they’re small. Precise values at 120, 200, 300 and 400 mm amount to 0.14%, 0.32%, 0.38% and 0.43% respectively.

In this category Canon comes out very similarly, and Tokina slightly worse.

Sigma 120-400 mm f/4.5-5.6 APO DG OS HSM - Distortion

Sigma 120-400 mm f/4.5-5.6 APO DG OS HSM - Distortion

Sigma 120-400 mm f/4.5-5.6 APO DG OS HSM - Distortion

Sigma 120-400 mm f/4.5-5.6 APO DG OS HSM - Distortion
