LensTip.com

Lens review

Olympus Zuiko Digital 11-22 mm f/2.8-3.5

4 December 2009
Arkadiusz Olech

7. Coma and astigmatism



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

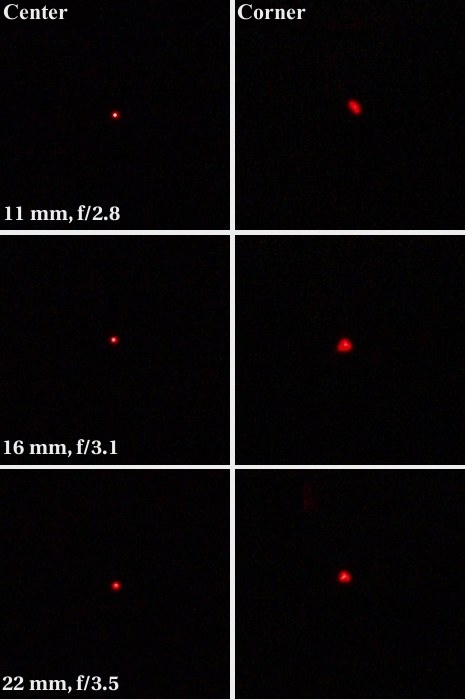

Looking at the following crops, taken from the frame centre and corner and showing the circular diode image, we can see that the coma is bothersome at all focal lengths and it contributes towards the worsening of the image quality at the edge.

Olympus Zuiko Digital 11-22 mm f/2.8-3.5 - Coma and astigmatism

The same thing is true when it comes to the astigmatism, which average value for all focal lengths amounts to 9%. You can notice, though, that in the middle of the range the value is the lowest (only 5%) and it increases significantly at the extreme ends (11%).
