6. Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

For such wide angles of view the geometric deformations are not huge. What’s interesting we deal here with the barrel distortion throughout the whole focal range. At 11 mm it reaches –2.66%, at 16 mm it decreases to –0.72% and by 22 mm it stops at –0.26%.

It’s the first category in which the ZD 11-22 mm fares significantly better than the ZD 12-60 mm which, at the widest angle, had the distortion level at – 3.54 %.

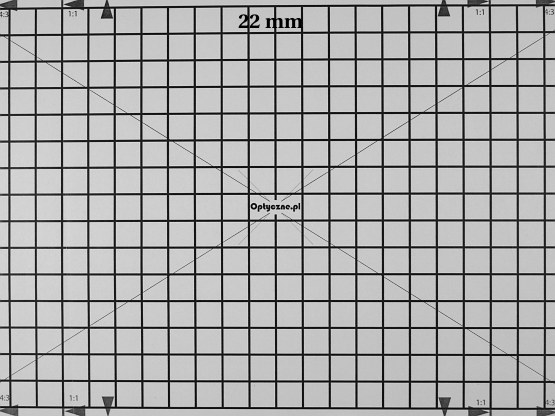

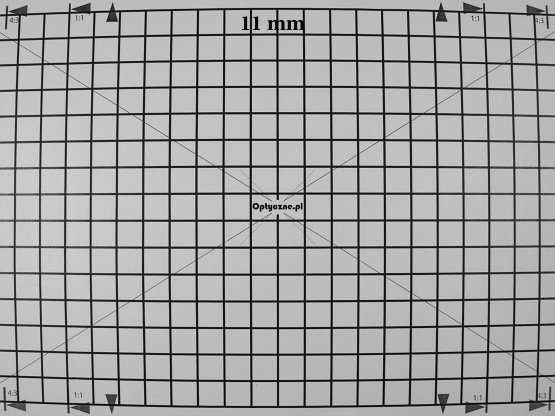

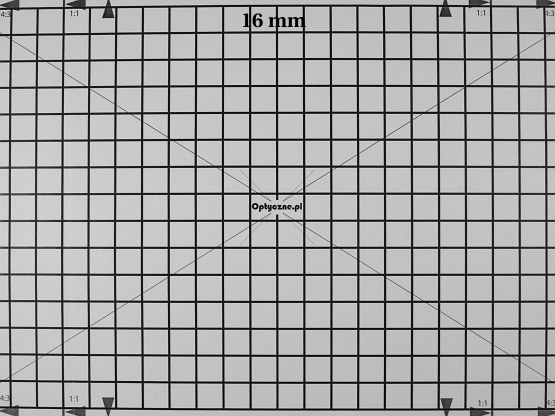

Olympus Zuiko Digital 11-22 mm f/2.8-3.5 - Distortion

Olympus Zuiko Digital 11-22 mm f/2.8-3.5 - Distortion

Olympus Zuiko Digital 11-22 mm f/2.8-3.5 - Distortion
