Olympus Zuiko Digital 11-22 mm f/2.8-3.5

4 December 2009
Arkadiusz Olech

8. Vignetting

Lack of vignetting was supposed to be one of the 4/3rds system advantages, ensuring wide angles of view and good fastness in the same time. The ZD 11-22 mm gives us a perfect opportunity to check how Olympus keeps its promises.

Olympus Zuiko Digital 11-22 mm f/2.8-3.5 - Vignetting

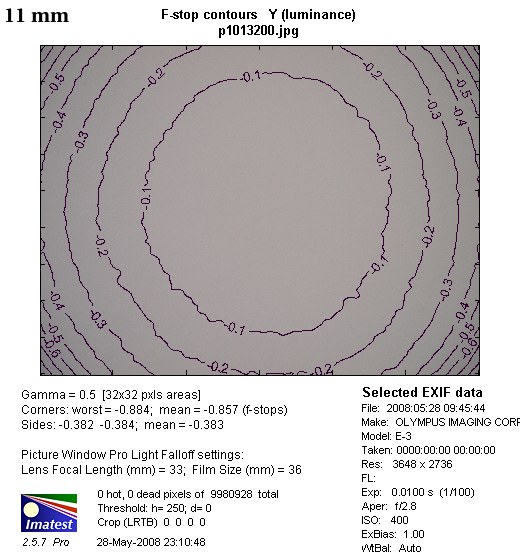

For the combination of the shortest focal length and maximum relative aperture the light fall-off, measured by us in the frame corners, amounted to 26% (-0.89 EV). This value is not perhaps very low but in the 90 degrees field of view lenses class it is still one of better results. The advantage of the 4/3rds system is clear here, especially that, on stopping down the lens to f/4.0 the aberration disappears almost completely, reaching just 12%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

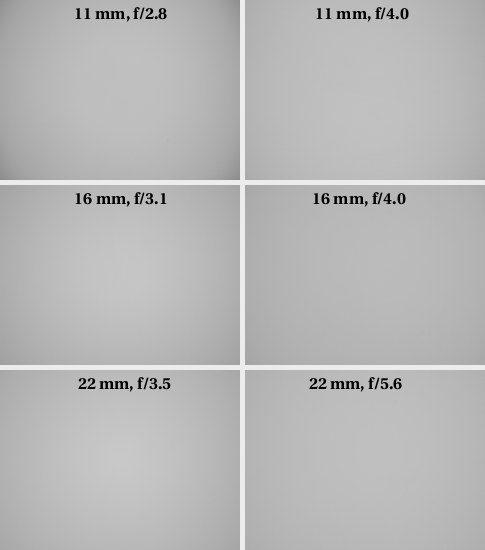

The results are even better for longer focal lengths. At 16 mm and by f/3.1 the brightness loss amounted to 17% (-0.55 EV). On stopping down the lens to f/4.0 we don’t have to bother ourselves with the vignetting at all (10%).

The identical value of 17% we get at the maximum focal length and by f/3.5. On stopping down to f/4.0 the vignetting decreases to 11% and by f/5.6 it amounts to just 8%.

In this category the lens deserves our praise for sure.


Olympus Zuiko Digital 11-22 mm f/2.8-3.5 - Vignetting


Olympus Zuiko Digital 11-22 mm f/2.8-3.5 - Vignetting
