LensTip.com

Lens review

Tokina AT-X DX AF 16.5-135 mm f/3.5-5.6

3 February 2010
Arkadiusz Olech

7. Coma and astigmatism



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

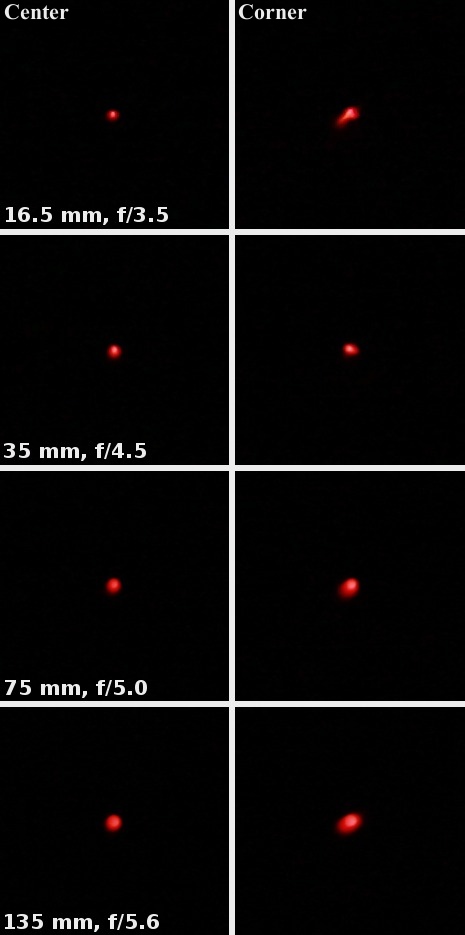

As you can see in the crops presented below, the coma is quite well corrected only near 35 mm. In other ranges this aberration is visible but, fortunately, not huge. It does contribute to the worsening of the frame edge image quality though.

Tokina AT-X DX AF 16.5-135 mm f/3.5-5.6 - Coma and astigmatism

Astigmatism is something which plagues the Tokina even more. We don’t know whether a significant focusing backlash in the middle of the range makes the optical elements more loosely fitting and their movements - not so precise but, looking at the results in this category, it is quite probable,. The average difference between vertical and horizontal MTF50 function values amounted to 15% here, brushing already against a high level…
