Tokina AT-X DX AF 16.5-135 mm f/3.5-5.6

3 February 2010
Arkadiusz Olech

8. Vignetting

Zoom lenses with a wide focal lengths’ range and a wide angle of view have always had many problems with vignetting. The Nikkors performed very badly here, having the vignetting level of 50% at the shortest focal lengths. It was better in the case of other devices but not much better because the results reaching 40% were not rare at all.

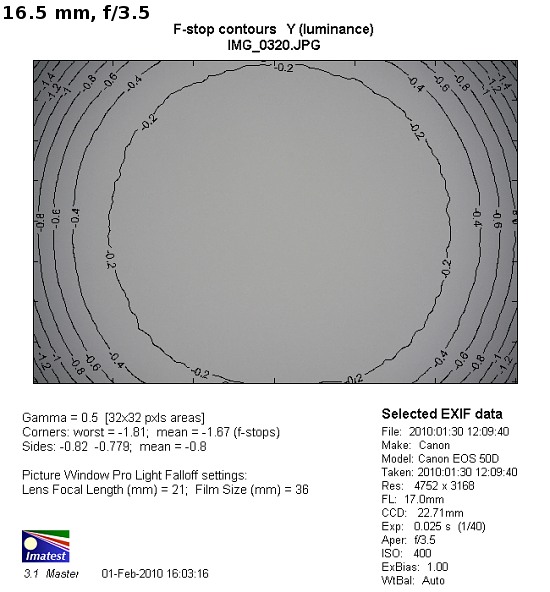

Tokina AT-X DX AF 16.5-135 mm f/3.5-5.6 - Vignetting


The Tokina 16.5–135 mm is not an exception to the rule. For the most difficult combination of wide angle and f/3.5 aperture we notice the light fall-off in the frame corners as big as 44% (-1.68 EV). By f/4.0 this value decreases to 31% and by f/5.6 – to 24%. Further stopping down doesn’t influence the vignetting at all because by f/8.0 the vignetting amounts to 23% and by f/11 it reaches 22%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Fortunately, the situation ameliorates a lot in the middle of the focal lengths’ range. At 35 mm and wide open the brightness loss in the frame corners is 17% (-0.53 EV). By f/5.6 it decreases to 14% and by f/8.0 it amounts to just 12%.

At 75 mm focal length the lens performs just a tad worse. At the maximum aperture the vignetting reaches 20% (-0.66 EV) and it decreases to 12% by f/5.6. Using the f/8.0 aperture eliminates the problem completely (9%).

The vignetting slightly increases at the maximum focal length. By f/5.6 it amounts to 26% (-0.86 EV). Fortunately on stopping down by 1 EV the problem disappears completely (10%).

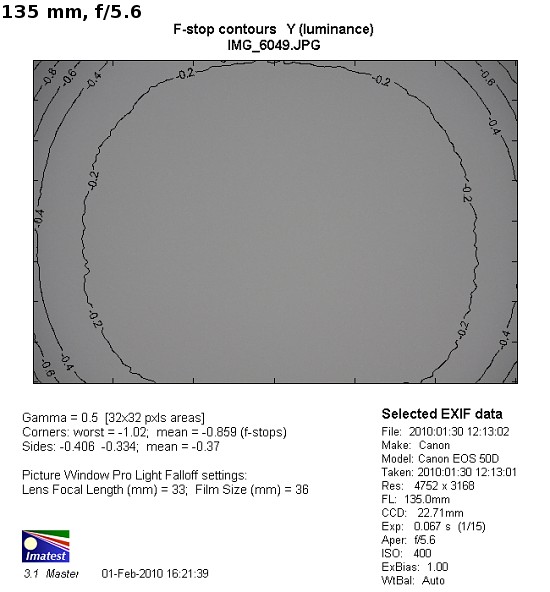

Tokina AT-X DX AF 16.5-135 mm f/3.5-5.6 - Vignetting

Tokina AT-X DX AF 16.5-135 mm f/3.5-5.6 - Vignetting

Tokina AT-X DX AF 16.5-135 mm f/3.5-5.6 - Vignetting

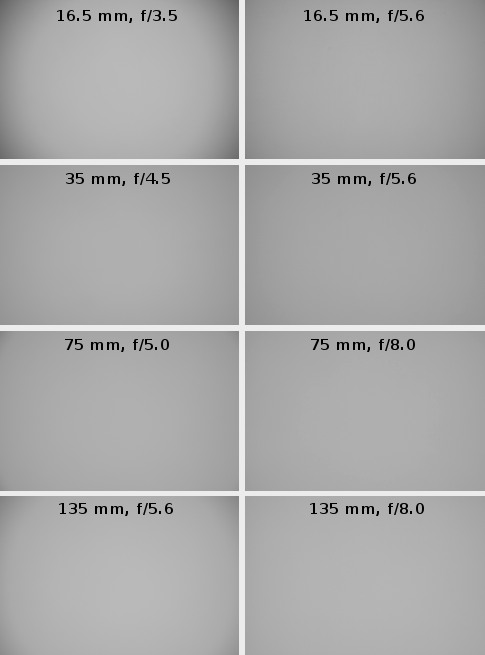

Tokina AT-X DX AF 16.5-135 mm f/3.5-5.6 - Vignetting
