LensTip.com

Lens review

Tokina AT-X DX AF 16.5-135 mm f/3.5-5.6

3 February 2010
Arkadiusz Olech

6. Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

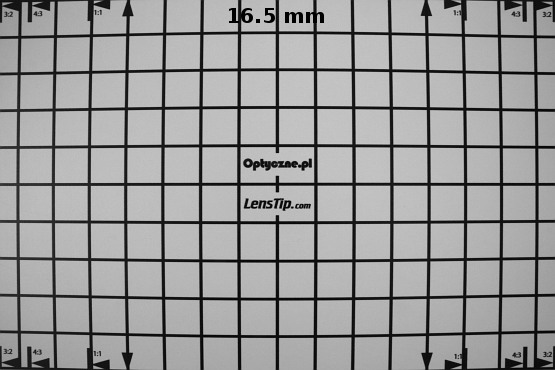

The distortion is a category in which the Tokina’s performance is beyond reproach. Zoom lenses with a similar range on wide angle can show barrel distortion reaching even –5%. The Tokina, with its result of –3.30% fares really well here.

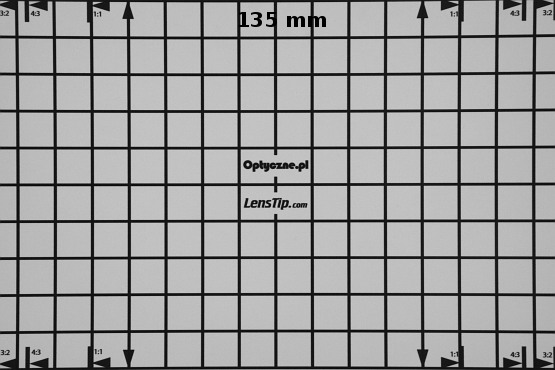

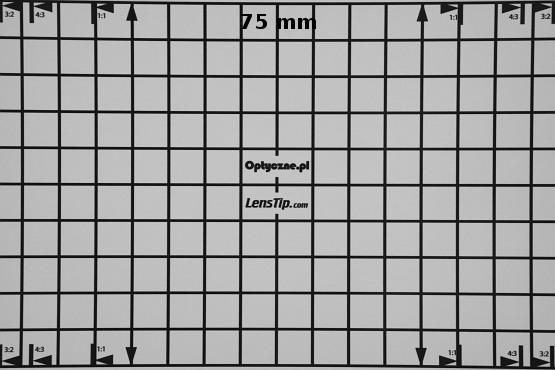

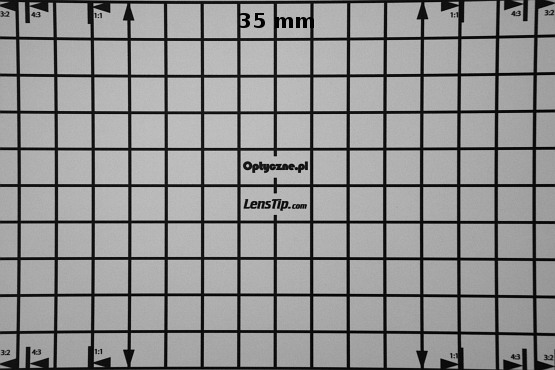

With the increase of the focal length the distortion decreases with lightning speed and changes the sign. At 24 mm it becomes pincushion and reaches 0.49%. It’s still not a problem - a bit harder part begins later. You must pay for the lower wide angle distortion level than in the case of competitors and the problems with a complete correction of the “pincushion” at the longer end are the price. At 35 mm the distortion amounts already to 1.59%, at 75 mm it decreases to 1.33% and at 135 mm – to 1.11%.


Tokina AT-X DX AF 16.5-135 mm f/3.5-5.6 - Distortion

Tokina AT-X DX AF 16.5-135 mm f/3.5-5.6 - Distortion

Tokina AT-X DX AF 16.5-135 mm f/3.5-5.6 - Distortion

Tokina AT-X DX AF 16.5-135 mm f/3.5-5.6 - Distortion
