LensTip.com

Lens review

Canon EF 24-105 mm f/4L IS USM

1 May 2010
Arkadiusz Olech

8. Vignetting

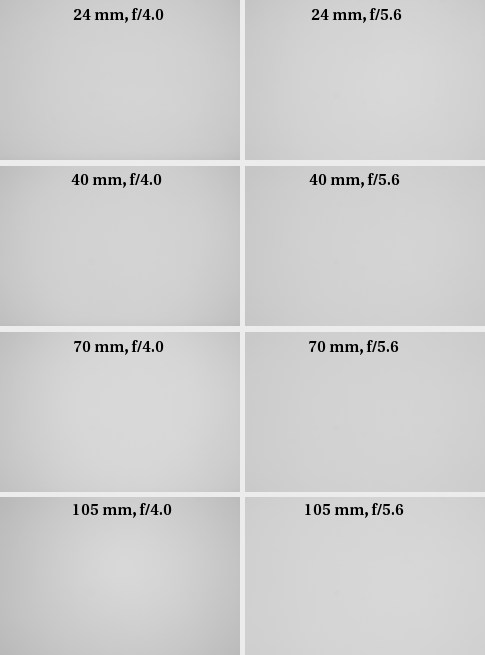

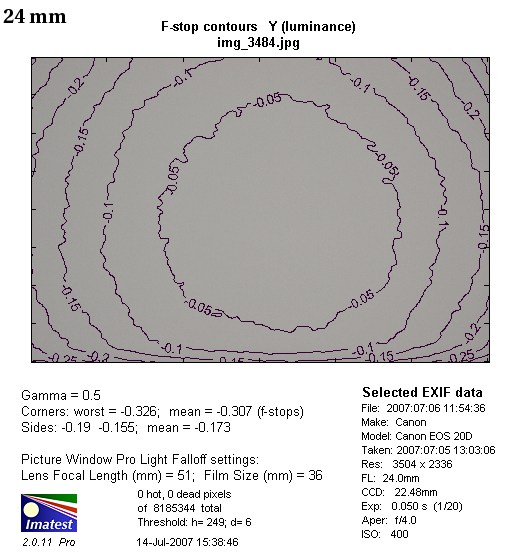

When you join a full frame design and a smaller APS-C sensor camera you can get very good vignetting results. In the 24-70 mm range and at maximum focal length the brightness loss in the frame corner is always 10% (-0.31 aperture value) and on stopping down to f/5.6 it decreases to an imperceptible level of 5-7%.

Canon EF 24-105 mm f/4L IS USM - Vignetting




Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

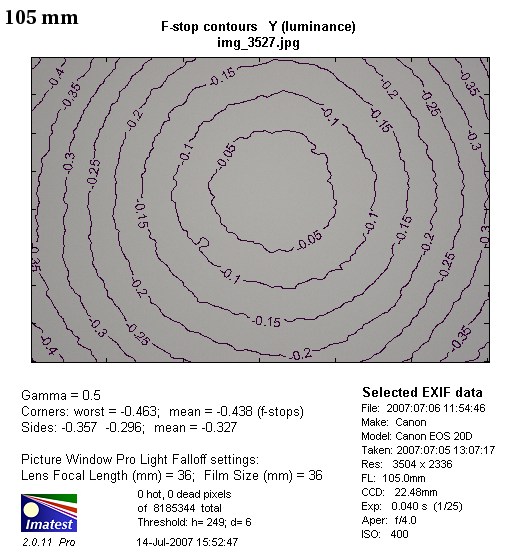

The highest vignetting can be observed at 105 mm because there, by f/4.0, the light fall-off in the corners amounts to 14% (-0.44 EV), which is also a good result in and of itself. Applying f/5.6 aperture eliminates the problem practically completely (4%).

Canon EF 24-105 mm f/4L IS USM - Vignetting

Canon EF 24-105 mm f/4L IS USM - Vignetting
