LensTip.com

Lens review

Tokina AT-X 840 AF D 80-400 mm f/4.5-5.6

15 May 2010
Arkadiusz Olech

8. Vignetting

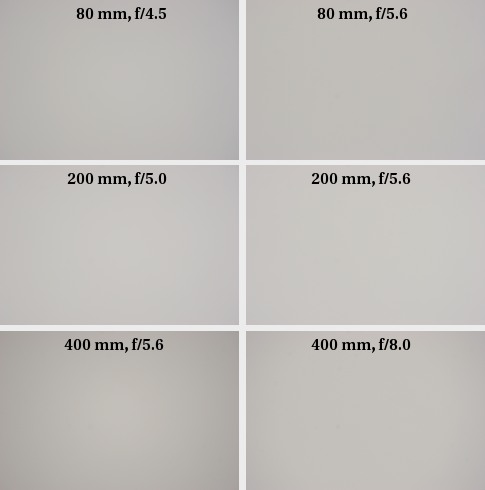

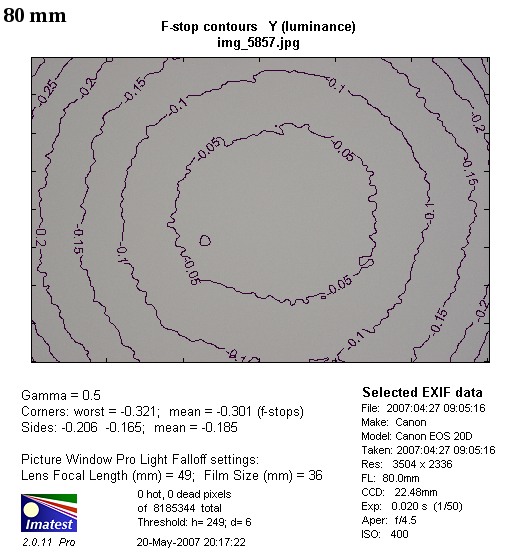

In this category we return to praising. Fast aperture telephoto zoom lenses with small dimensions often have problems with vignetting, especially at maximum focal length. This rule doesn’t concern the Tokina, tested here. In the 80-300 mm range the light fall-off in the frame corners won’t be bothersome practically in any conditions. At 80 mm even wide open the vignetting amounts to just 10% (-0.30 aperture value). On stopping down to f/5.6 we see the problem decrease to a marginal level of 3%.

Tokina AT-X 840 AF D 80-400 mm f/4.5-5.6 - Vignetting

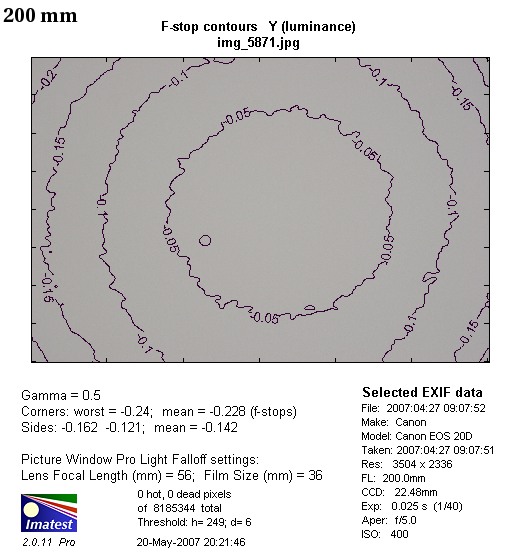

Although it’s difficult to imagine, at 200 mm the results are even better – at the maximum aperture the vignetting reaches just 8% (-0.23 aperture value). At 300 mm the situation is only slightly worse – by f/5.0 the light fall-off in the frame corners amounts to 12% (-0.37 EV). It’s enough to stop down the lens a bit to f/5.6 and the vignetting is just 9%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

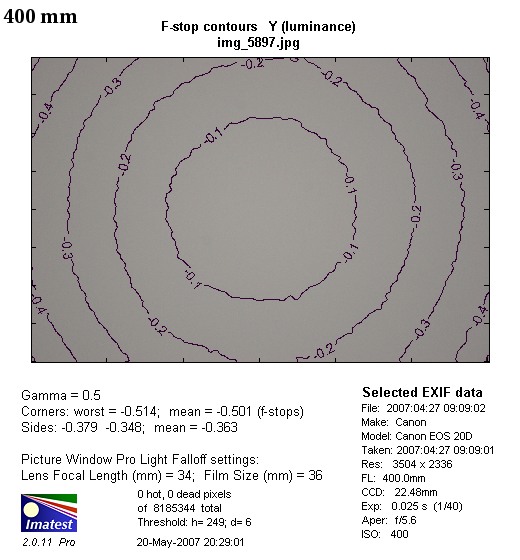

We get the biggest chances to spot the vignetting for the combination of 400 mm focal length and f/5.6 aperture where it reaches 16% (-0.50 EV). This level is still considered to be low. On stopping down by one stop we se the brightness loss decrease to practically zero because by f/8 it amounts to just 8%.

Tokina AT-X 840 AF D 80-400 mm f/4.5-5.6 - Vignetting

Tokina AT-X 840 AF D 80-400 mm f/4.5-5.6 - Vignetting

Tokina AT-X 840 AF D 80-400 mm f/4.5-5.6 - Vignetting
