LensTip.com

Lens review

Panasonic Leica DG Macro-Elmarit 45 mm f/2.8 ASPH. M.O.I.S.

25 February 2011
Arkadiusz Olech

7. Coma and astigmatism



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

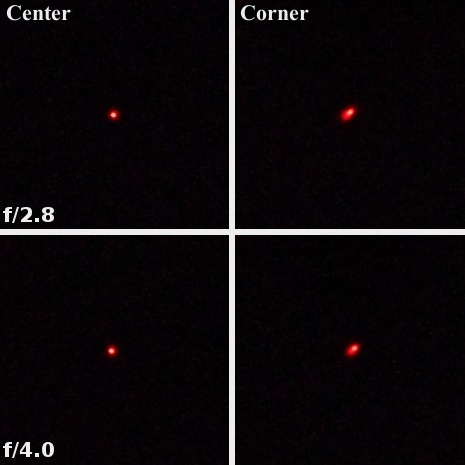

In the crops below you can see that coma is one of the reasons of the worse image quality on the very edge of the frame. The diode put in the frame corner is distinctly deformed. What’s more the situation doesn’t change significantly even on stopping down by 1 EV.

Panasonic Leica DG Macro-Elmarit 45 mm f/2.8 ASPH. M.O.I.S. - Coma and astigmatism

Astigmatism is less bothersome as its level, understood as the difference between horizontal and vertical MTF50 function values, we determined as less than 6%.
