Lens review

Canon EF 70-300 mm f/4-5.6 L IS USM

28 October 2011
Arkadiusz Olech

6. Distortion

A chart, presented below, shows what distortion results the tested lens got in pictures taken with both the EOS 1Ds MkIII and the EOS 50D camera.


70 mm
135 mm
200 mm
300 mm
APS-C/DX
−0.58%
0.50%
0.73%
0.76%
FF
−1.61%
1.29%
1.84%
1.87%


For comparison we also present a similar chart with the results of the Tamron 70-300 mm VC, tested by us not so long ago.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


70 mm
135 mm
200 mm
300 mm
APS-C/DX
−0.10%
0.80%
0.82%
0.81%
FF
−0.09%
2.12%
2.05%
1.89%


You can see a noticeable difference in approach implemented by the designers of these two lenses. Tamron optics specialists decided to correct distortion almost perfectly at 70 mm and increase its level at longer focal end. In the case of the Canon at the shortest focal length there is a visible “barrel” but the results at longer focal lengths are a bit better than those of the Tamron.

What is important, though, when it comes to the absolute values, the distortion is lower than 2% everywhere so it never becomes a bothersome issue.

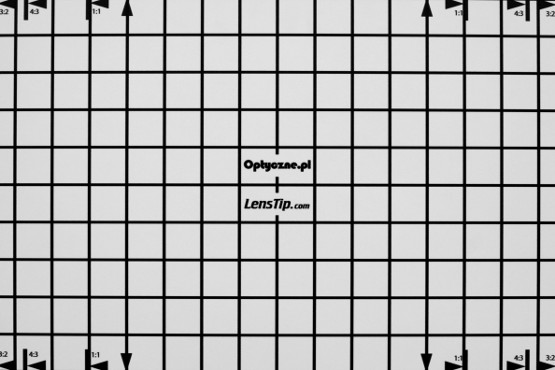

Canon 50D, 70 mm
Canon EF 70-300 mm f/4-5.6 L IS USM - Distortion

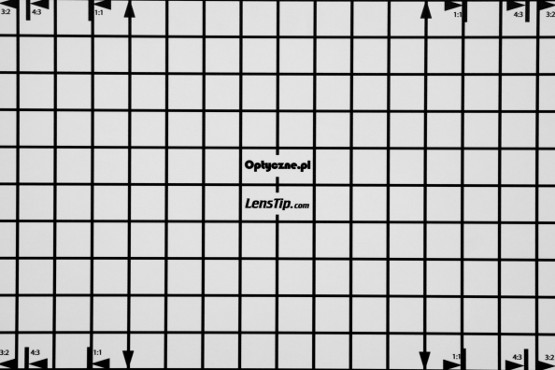

Canon 50D, 135 mm
Canon EF 70-300 mm f/4-5.6 L IS USM - Distortion

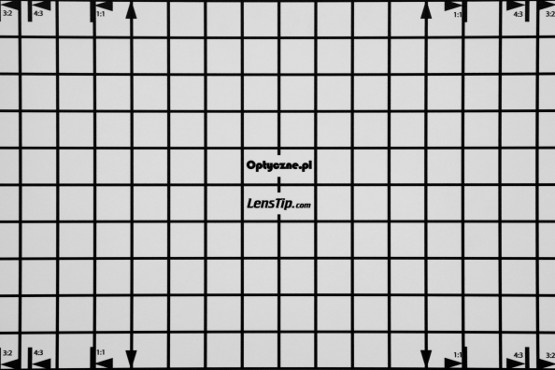

Canon 50D, 200 mm
Canon EF 70-300 mm f/4-5.6 L IS USM - Distortion

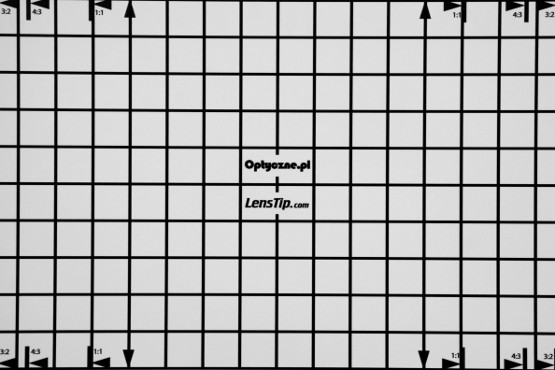

Canon 50D, 300 mm
Canon EF 70-300 mm f/4-5.6 L IS USM - Distortion

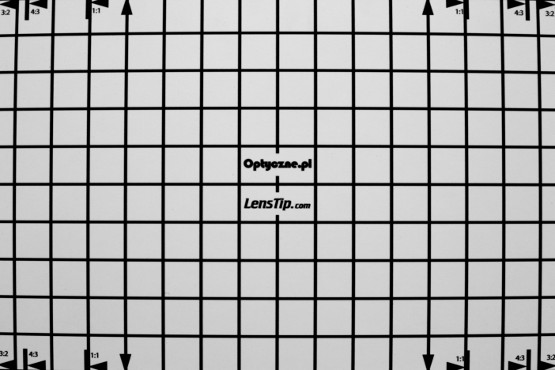

Canon 1Ds MkIII, 70 mm
Canon EF 70-300 mm f/4-5.6 L IS USM - Distortion

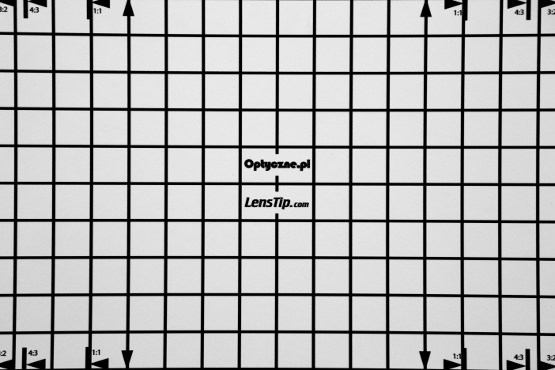

Canon 1Ds MkIII, 135 mm
Canon EF 70-300 mm f/4-5.6 L IS USM - Distortion

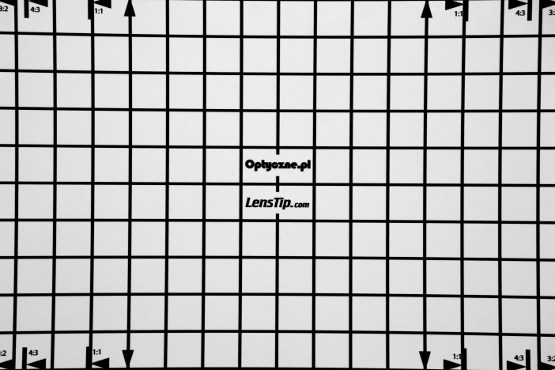

Canon 1Ds MkIII, 200 mm
Canon EF 70-300 mm f/4-5.6 L IS USM - Distortion

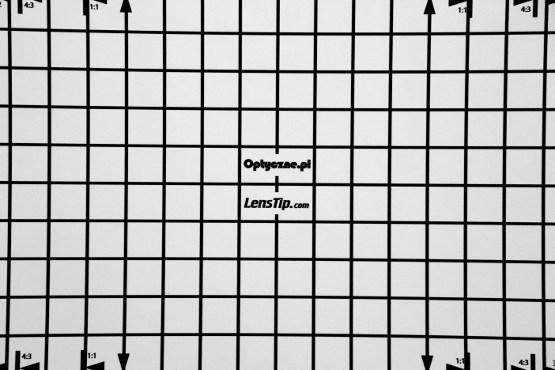

Canon 1Ds MkIII, 300 mm
Canon EF 70-300 mm f/4-5.6 L IS USM - Distortion
