LensTip.com

Lens review

Sigma 12-24 mm f/4.5-5.6 II DG HSM

27 December 2011
Arkadiusz Olech

6. Distortion

On a small sensor of the Nikon D200 the distortion won’t give us any reasons to complain. At 12, 18 and 24 mm focal length it is respectively -0.45%, 1.13% and 1.57%. Taking into account the angles of view these are very good results although, what’s interesting, a bit worse than those of the predecessor.

It isn’t difficult to guess that the most deformation problems you will encounter on full frame. At the widest angle of view you deal with a noticeable “barrel” which value we determined as –2.67%. What’s important in this case a slightly moustache-like nature of this aberration can be noticed. The lines on the very edge of the frame start to bend in the opposite direction. It becomes even more pronounced in the middle of the focal range where, on full frame, the official result amounts to –0.17%. Supposedly not a high value but it stems from averaging the results across the frame. If you look more closely and remind yourself the situation on the D200, it turns out that in the middle of the frame there is a “pincushion” with a value distinctly higher than 1% and on the edge – “barrel” distortion exceeding the level of –1%. Pincushion distortion increases with the rise of the focal length value and at 24 mm it reaches a visible level of 2.13%.

It should be additionally remembered here that keeping straight lines with such extremely wide angles of view is very difficult and can be achieved only at the expense of significant oversharpness. If you value your life don’t even try taking photos of your partner while her face is situated in the corners of the frame.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


Nikon D200, 12 mm
Sigma 12-24 mm f/4.5-5.6 II DG HSM - Distortion
Nikon D200, 18 mm
Sigma 12-24 mm f/4.5-5.6 II DG HSM - Distortion

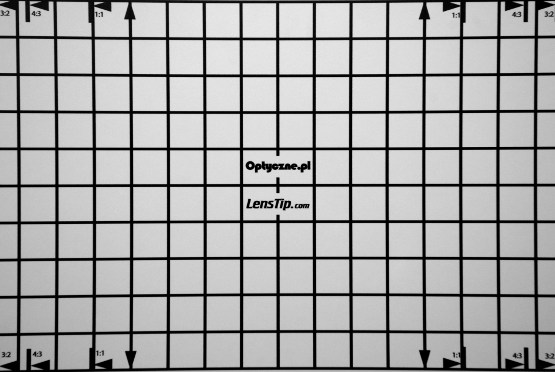

Nikon D200, 24 mm
Sigma 12-24 mm f/4.5-5.6 II DG HSM - Distortion

Nikon D3x, 12 mm
Sigma 12-24 mm f/4.5-5.6 II DG HSM - Distortion

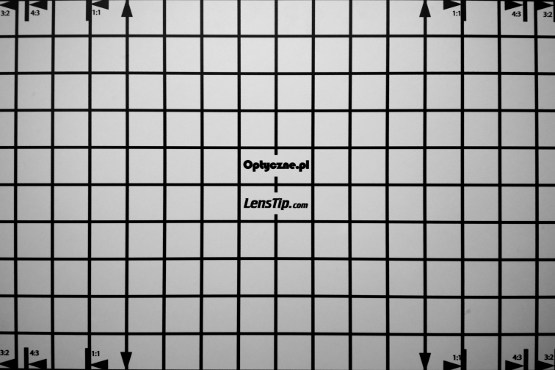

Nikon D3x, 18 mm
Sigma 12-24 mm f/4.5-5.6 II DG HSM - Distortion

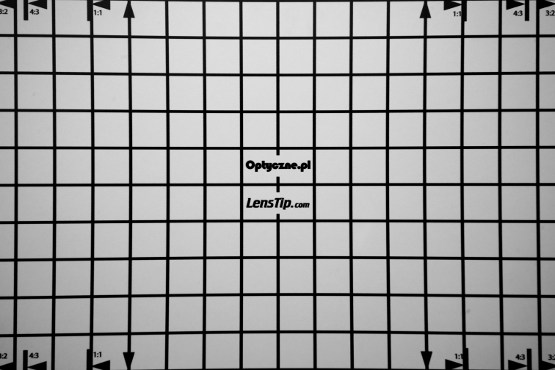

Nikon D3x, 24 mm
Sigma 12-24 mm f/4.5-5.6 II DG HSM - Distortion
