Olympus M.Zuiko Digital 12-50 mm f/3.5-6.3 ED EZ

16 March 2012
Arkadiusz Olech

6. Distortion

The idea behind the Micro Four Thirds system is such that the distortion doesn’t have to be corrected by optics because the software can do that job. It entails constructing lenses with wider fields of view because the images after the distortion correction are cropped. In order to keep the angle of view as stated in the specifications the original field must be a bit bigger.

Such a solution has its advantages. When you give up correcting one optical aberration you can correct the others far more efficiently. How does the Olympus 12-50 mm fare? Let’s deal with JPEG files first.

At the widest angle even the software didn’t manage to correct the distortion completely. At 12 mm focal length you get noticeable barrel distortion which value we described as –2.25%. When you progress to longer focal lengths the problems disappear. Both in the middle of the focal length range and on its longer end the distortion is by and large zero. Officially the values are 0.02% and 0.11% respectively but, within the margin of error, they are zero.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Raw files are quite another matter. At the widest angle of view we deal with huge barrel amounting to –6.87%. Of course it decreased with the raise of focal length because at 19 mm it is –1.2%. It becomes zero near 26 mm (the official result there being –0.10%) and turns into a slight “pincushion” at longer focal lengths. At the maximum focal length the result gets to 0.97%.

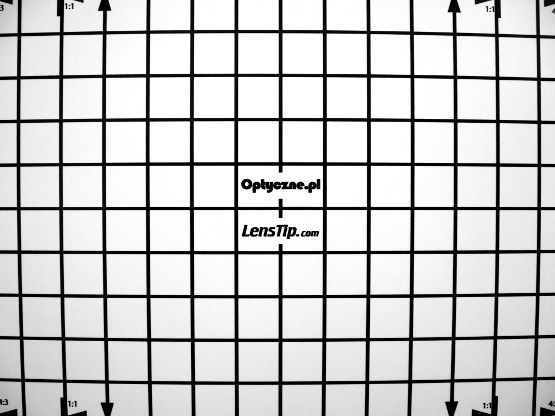

Olympus E-PL1, 12 mm, JPEG
Olympus M.Zuiko Digital 12-50 mm f/3.5-6.3 ED EZ - Distortion

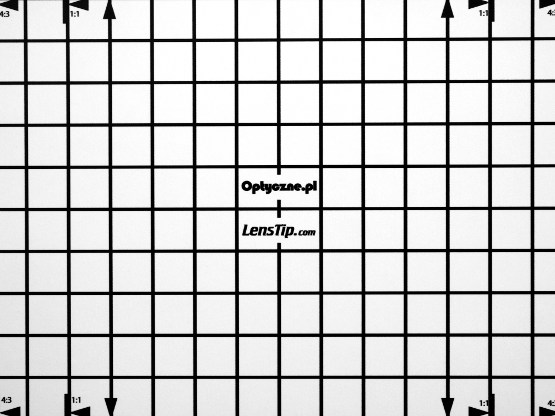

Olympus E-PL1, 26 mm, JPEG
Olympus M.Zuiko Digital 12-50 mm f/3.5-6.3 ED EZ - Distortion

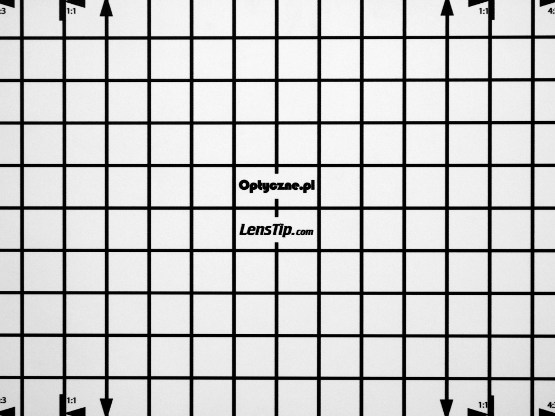

Olympus E-PL1, 50 mm, JPEG
Olympus M.Zuiko Digital 12-50 mm f/3.5-6.3 ED EZ - Distortion

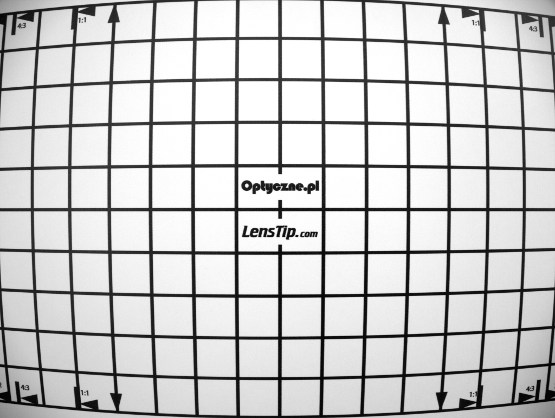

Olympus E-PL1, 12 mm, RAW
Olympus M.Zuiko Digital 12-50 mm f/3.5-6.3 ED EZ - Distortion

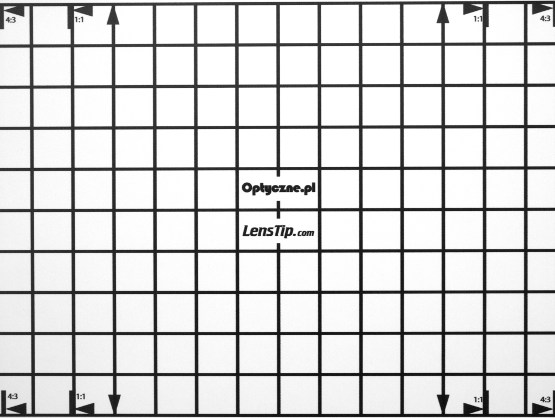

Olympus E-PL1, 26 mm, RAW
Olympus M.Zuiko Digital 12-50 mm f/3.5-6.3 ED EZ - Distortion

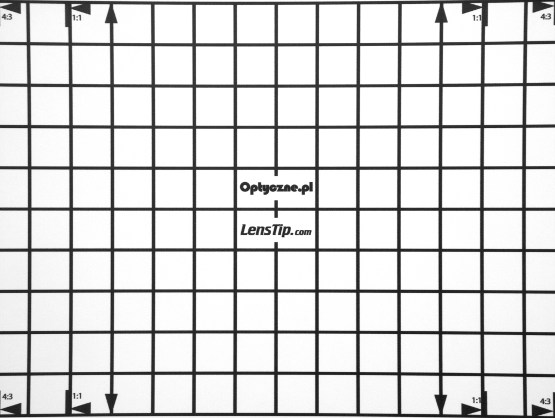

Olympus E-PL1, 50 mm, RAW
Olympus M.Zuiko Digital 12-50 mm f/3.5-6.3 ED EZ - Distortion
