LensTip.com

Lens review

Panasonic G X VARIO PZ 14-42 mm f/3.5-5.6 ASPH. P.O.I.S.

11 June 2012
Arkadiusz Olech

8. Vignetting

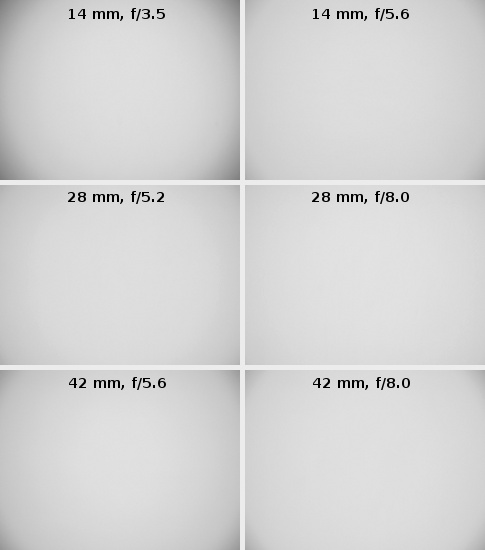

Concentration on small dimensions of a lens almost always ends up in noticeable vignetting problems. The Panasonic 14-42 mm, tested here, is not an exception to this rule. When you look at thumbnails, posted below, you can become convinced of it.

Panasonic G X VARIO PZ 14-42 mm f/3.5-5.6 ASPH. P.O.I.S. - Vignetting

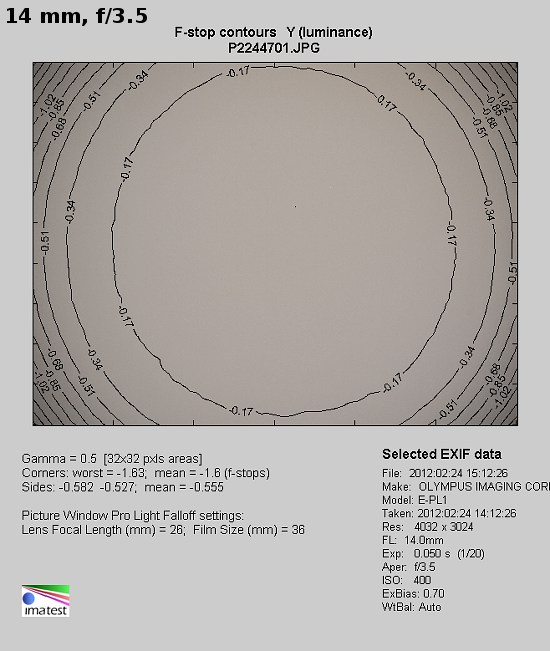

At the difficult combination of the wide angle and the maximum relative aperture the light fall-off in the frame corners reaches 42% (-1.6 EV). It’s worth remembering that if you want to use a non-corrected RAW file you will have a field of view even wider than the normal 75 degrees so you should take into account the fact that the vignetting might amount to 53% (-2.18 EV). The stopping down of the aperture helps to reduce that problem but even if you do so the vignetting doesn’t disappear completely. By f/4.0 the brightness loss in the corners gets to 38% (-1.38 EV) and by f/5.6 it is still 21% (-0.67 EV). Small vignetting you can see only by f/8 and f/11 where it reaches respectively 14% and 12%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

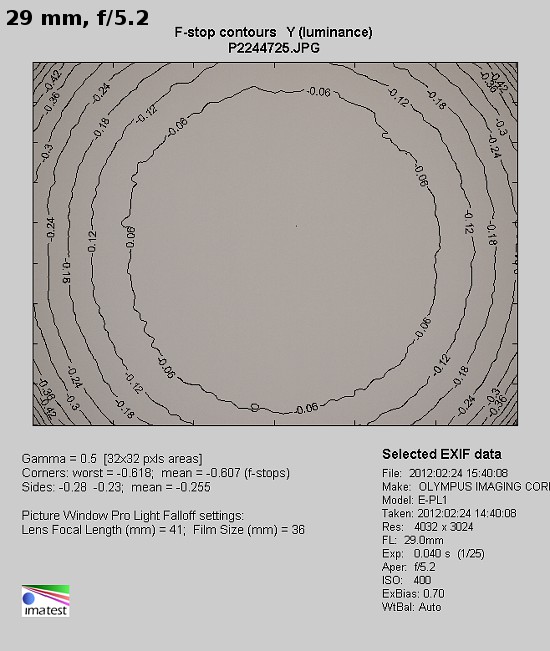

In the middle of the focal range the vignetting won’t be bothersome almost at all. Even at the maximum relative aperture (f/5.2) that aberration is difficult to notice, amounting to 19% (-0.61 EV). On stopping down to f/8.0 you see it decrease further to the value of 12% (-0.36 EV).

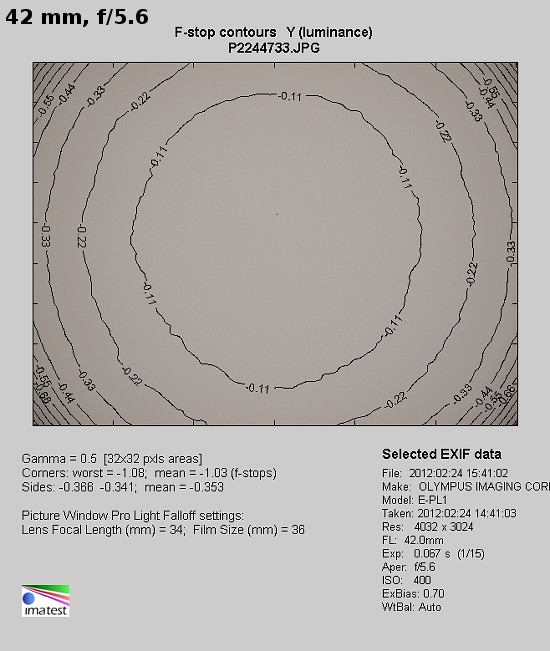

Another vignetting increase we see at the maximum focal length. Using the f/5.6 aperture we must take into account the fact that the light fall-off in the frame corners will reach 30% (-1.03 EV) and in RAW files it will be additionally by 2% higher. Stopping down the aperture to f/8 makes this problem decrease to 22% (-0.73 EV). Using f/11 aperture allows you to reduce the vignetting to the level of 17% (-0.54 EV).


Panasonic G X VARIO PZ 14-42 mm f/3.5-5.6 ASPH. P.O.I.S. - Vignetting

Panasonic G X VARIO PZ 14-42 mm f/3.5-5.6 ASPH. P.O.I.S. - Vignetting

Panasonic G X VARIO PZ 14-42 mm f/3.5-5.6 ASPH. P.O.I.S. - Vignetting
