LensTip.com

Lens review

Canon EF 24 mm f/2.8 IS USM

17 October 2012
Arkadiusz Olech

8. Vignetting

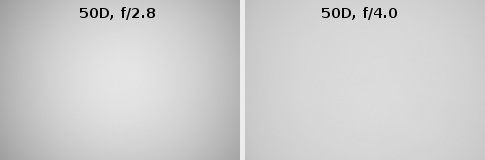

With a bit of goodwill you can consider the vignetting on the Canon’s 50D sensor to be moderate. The thumbnails below show it very well.

Canon EF 24 mm f/2.8 IS USM - Vignetting


At the maximum relative aperture the brightness loss in the frame corners amounts to 29% (-0.98 EV). The problem becomes marginal already by f/4.0 because the vignetting decreases there to 11% (-0.33 EV). Further stopping down influences the value of this aberration only very slightly.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

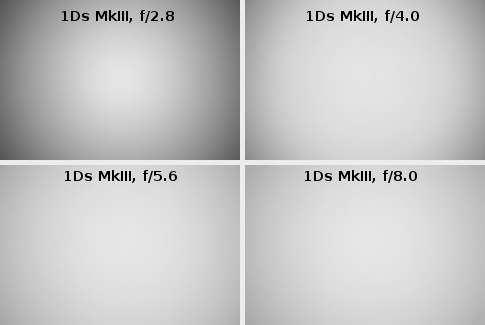

Let’s progress to the performance on full frame now.

Canon EF 24 mm f/2.8 IS USM - Vignetting

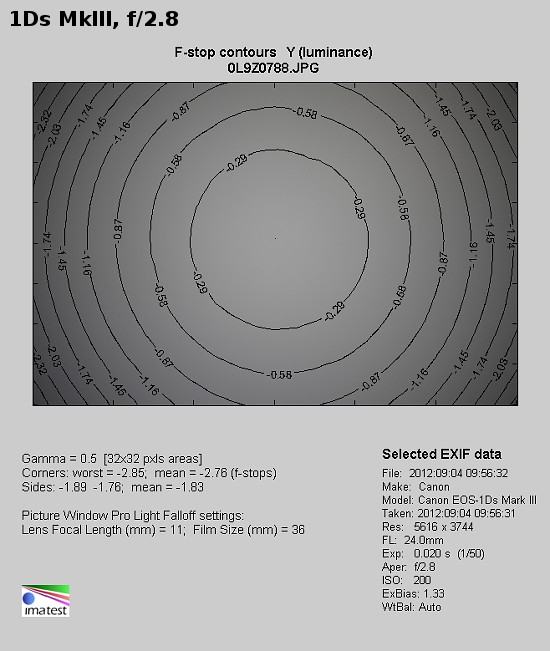

It would be difficult not to notice that the vignetting at the maximum relative aperture is huge. The result we got is 62% (-2.76 EV). Taking into account an average fastness of this lens such a result is really weak. By f/4.0 the vignetting is also high reaching 39% (-1.45 EV) there. A moderate level of that aberration is only achieved by f/5.6 where our measurements showed 26% (-0.87 EV). On further stopping down you can’t make the vignetting decrease by more than 1%.

Canon EF 24 mm f/2.8 IS USM - Vignetting
