LensTip.com

Lens review

Tokina AT-X PRO FX SD 17-35 mm f/4 (IF)

16 September 2013
Arkadiusz Olech

6. Distortion

If you happen to own a reflex camera with an APS-C/DX sensor, the distortion of the Tokina 17-35 mm won’t be problematic at all – the highest level of that aberration we got at the widest angle of view and it amounted to –1.16%. It is a moderate result at most. At longer focal lengths the distortion is imperceptible. At 24 mm there are still slight barrel deformations of –0.16% which change into equally slight pincushion variation (0.19%) at 35 mm focal length.

On full frame the distortion level is higher – for obvious reasons. Fortunately you have a chance to perceive it only at 17 mm focal length where you still have to tackle –3.64% barrel. Such a level is not exceptionally high because many zoom lenses near 17-18 mm focal length can feature distortion of even –5%, but certainly it might be noticed in photos. The problem decreases swiftly with the increase of the focal length. At 24 mm the barrel deformations diminish to –0.70% and then they change the sign and, at 35 mm focal length, you already deal with slight pincushion of 0.26%.

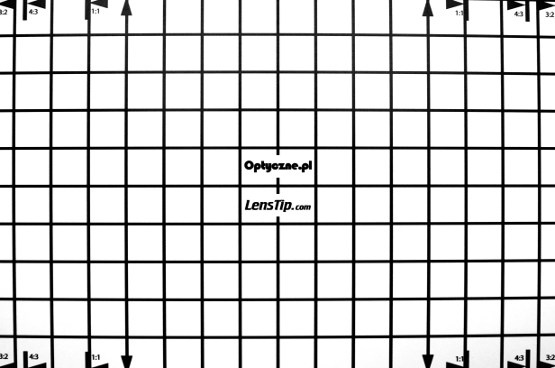

Nikon D7000, 17 mm
Tokina AT-X PRO FX SD 17-35 mm f/4 (IF)  - Distortion

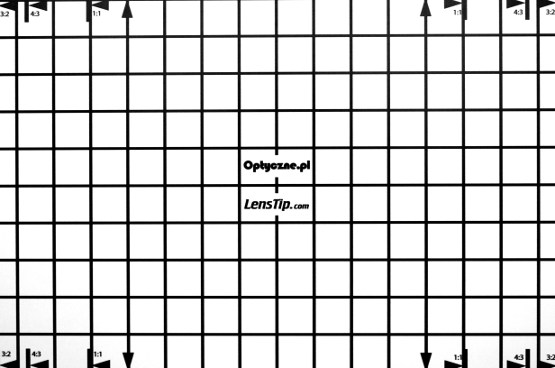

Nikon D7000, 24 mm
Tokina AT-X PRO FX SD 17-35 mm f/4 (IF)  - Distortion

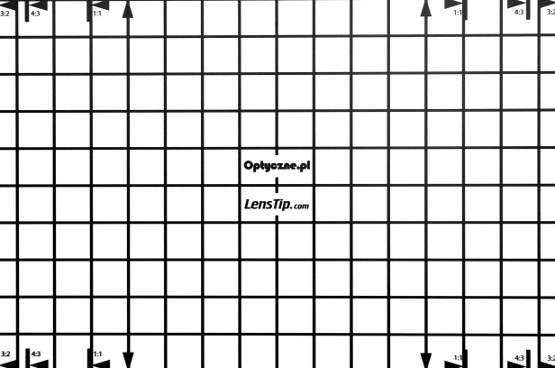

Nikon D7000, 35 mm
Tokina AT-X PRO FX SD 17-35 mm f/4 (IF)  - Distortion


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

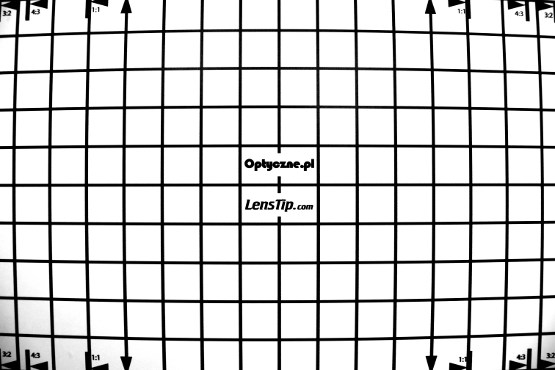

Nikon D3x, 17 mm
Tokina AT-X PRO FX SD 17-35 mm f/4 (IF)  - Distortion

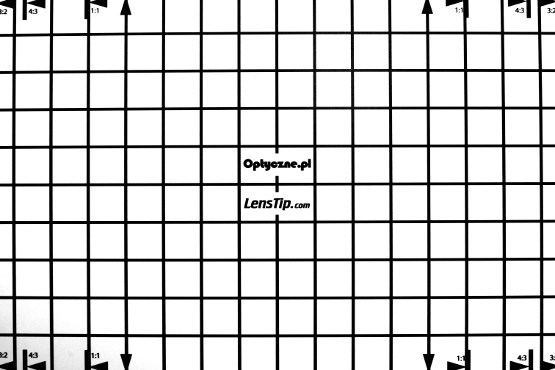

Nikon D3x, 24 mm
Tokina AT-X PRO FX SD 17-35 mm f/4 (IF)  - Distortion

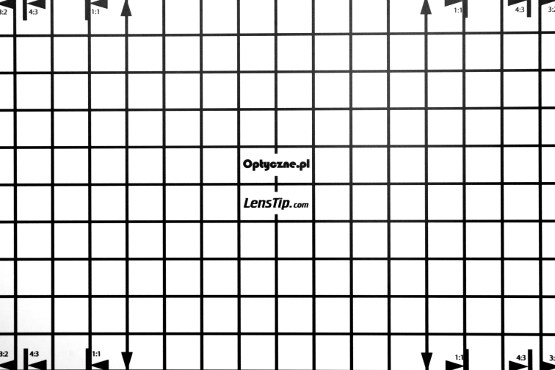

Nikon D3x, 35 mm
Tokina AT-X PRO FX SD 17-35 mm f/4 (IF)  - Distortion
