LensTip.com

Lens review

Tokina AT-X PRO FX SD 17-35 mm f/4 (IF)

16 September 2013
Arkadiusz Olech

8. Vignetting

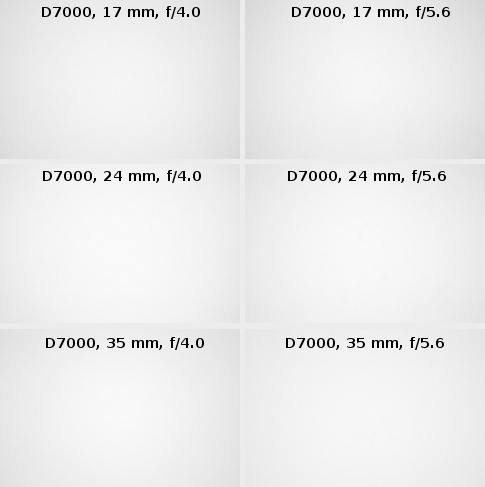

On a small APS-C/DX sensor the Tokina 17-35 mm corrects the vignetting in a splendid way; it’s enough you glance at the thumbnails below to see it clearly.

Tokina AT-X PRO FX SD 17-35 mm f/4 (IF)  - Vignetting


The measurements show an interesting thing, though. The vignetting correction is so good that the level of that aberration doesn’t depend almost at all on the aperture used. At the shortest focal length, no matter whether you employ f/4.0, f/5.6 or f/8.0, the brightness loss in the corners always amounts to about 11-12% (-0.35 EV). In the middle of the focal range the situation is similar. At every aperture the vignetting is just 9% (-0.28 EV). Only at 35 mm we managed to notice the influence of the relative aperture – by f/4.0 the vignetting got to 15% (-0.47 EV), it decreased to 11% (-0.33 EV) by f/5.6 and by f/8.0 it was just 10% (-0.31 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

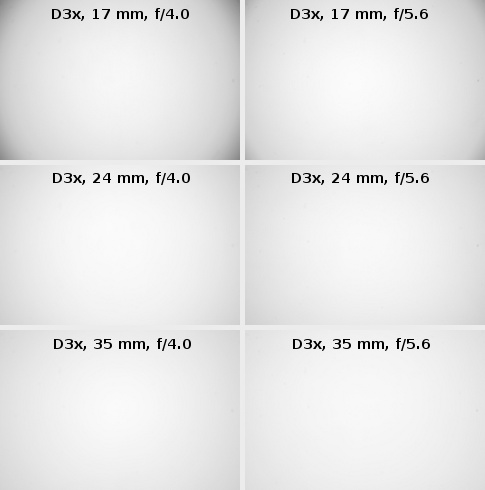

Let’s check now how the Tokina 17-35 mm f/4.0 performs on full frame in this category.

Tokina AT-X PRO FX SD 17-35 mm f/4 (IF)  - Vignetting

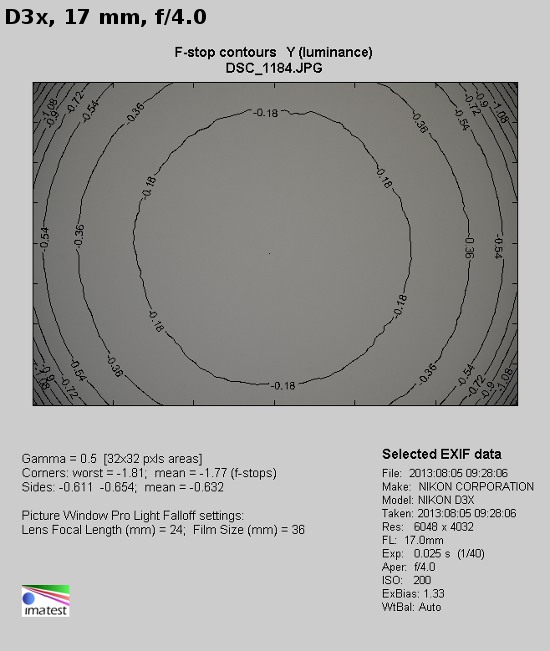

Here the biggest and, in fact, the only problems can be found at the wide angle. By f/4.0 the vignetting amounts to 46% (-1.77 EV) and we can consider such a level to be high. The stopping down helps to reduce that aberration but it not especially effective. By f/5.6 the light fall-off is 32% (-1.11 EV) and by f/8.0 it reaches 27 % (-0.90 EV). By f/11 aperture and higher the vignetting gets to 22% (-0.74 EV).

The middle of the range and 35 mm focal length fare exceedingly well, even on full frame. At 24 mm and by f/4.0 the vignetting is just 18% (-0.57 EV). After employing f/5.6 it decreases to 16% (-0.51 EV) and stays on that level for higher apertures as well. The maximum focal length is similar – by f/4.0 the vignetting amounts to 15% (0.47 EV) and it decreases to 11% (-0.33 EV) by f/5.6. Further stopping down makes it drop to 10% (-0.31 EV).

Tokina AT-X PRO FX SD 17-35 mm f/4 (IF)  - Vignetting

Tokina AT-X PRO FX SD 17-35 mm f/4 (IF)  - Vignetting
