Lens review

Fujifilm Fujinon XF 23 mm f/1.4 R

19 March 2014
Arkadiusz Olech

8. Vignetting

The Fujifilm X system cameras correct vignetting in JPEG files so we always test JPEG and RAW files at the same time. The Fujinon’s 1.4/23 level of that aberration can be assessed by glancing at thumbnails, shown below.

JPEG RAW
f/1.4 f/1.4
Fujifilm Fujinon XF 23 mm f/1.4 R - Vignetting Fujifilm Fujinon XF 23 mm f/1.4 R - Vignetting
f/2.0 f/2.0
Fujifilm Fujinon XF 23 mm f/1.4 R - Vignetting Fujifilm Fujinon XF 23 mm f/1.4 R - Vignetting
f/2.8 f/2.8
Fujifilm Fujinon XF 23 mm f/1.4 R - Vignetting Fujifilm Fujinon XF 23 mm f/1.4 R - Vignetting


As long as you work with JPEG files the vignetting shouldn’t bother you at all. At the maximum relative aperture it amounts to 27% (-0.90 EV) and is moderate. After stopping down to f/2.0 it decreases slightly to 22% (-0.73 EV) and when you pass to f/2.8 it becomes imperceptible, reaching just 14% (-0.42 EV). On further stopping down you see only slight improvement – the vignetting gets lower by just 2%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

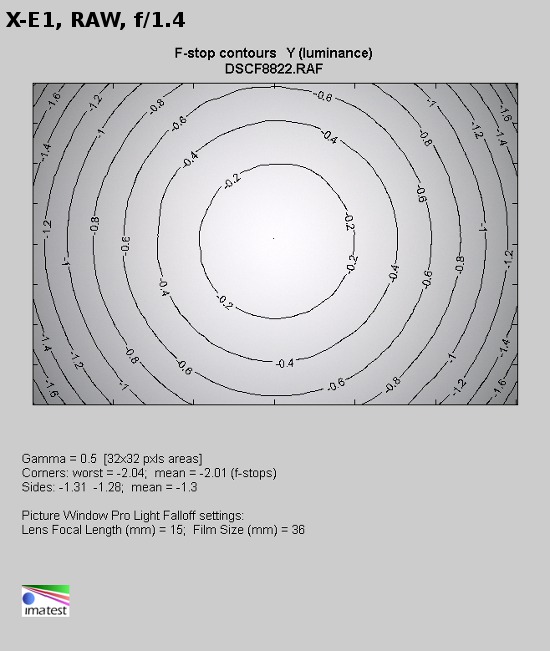

The RAW files are just another matter. The vignetting is distinct here, reaching at the maximum relative aperture as high as 50% (-2.01 EV). A noticeable decrease of that aberration is observed on stopping down to f/2.0 - the brightness loss falls to 35% (-1.27 EV). By f/2.8 and f/4.0 you deal with moderate level of vignetting, with the light fall-off in the corners being respectively 23% (-0.77 EV) and 21% (-0.67 EV). Further stopping down doesn’t bring any measurable effects.

Perhaps the results of the Fujinon 1.4/23 are not exactly impressive in this category but still you should remember that such an angle of view and f/1.4 aperture rise the standards quite significantly. It’s also worth remembering that most of full frame constructions of this type fare even worse, having 50-70% of vignetting at the maximum relative aperture.

Fujifilm Fujinon XF 23 mm f/1.4 R - Vignetting
