8. Vignetting

Vignetting was the biggest slip-up of the extremely well done Zeiss Apo Sonnar 2/135 and its only flaw– that’s why we were very curious what the Makro-Planar 2/100 might show in this category. First let’s check the results on the APS-C/DX.

Carl Zeiss Makro-Planar T* 100 mm f/2 ZF.2/ZE - Vignetting


You have some chances to notice any vignetting only at the maximum relative aperture and even there its level is moderate, amounting to 21% (-0.67 EV). The problem disappears completely on stopping down to f/2.8, with the brightness loss decreasing to an imperceptible value of 6% (-0.19 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Let’s check now the performance on full frame by looking at thumbnails, shown below.

Carl Zeiss Makro-Planar T* 100 mm f/2 ZF.2/ZE - Vignetting

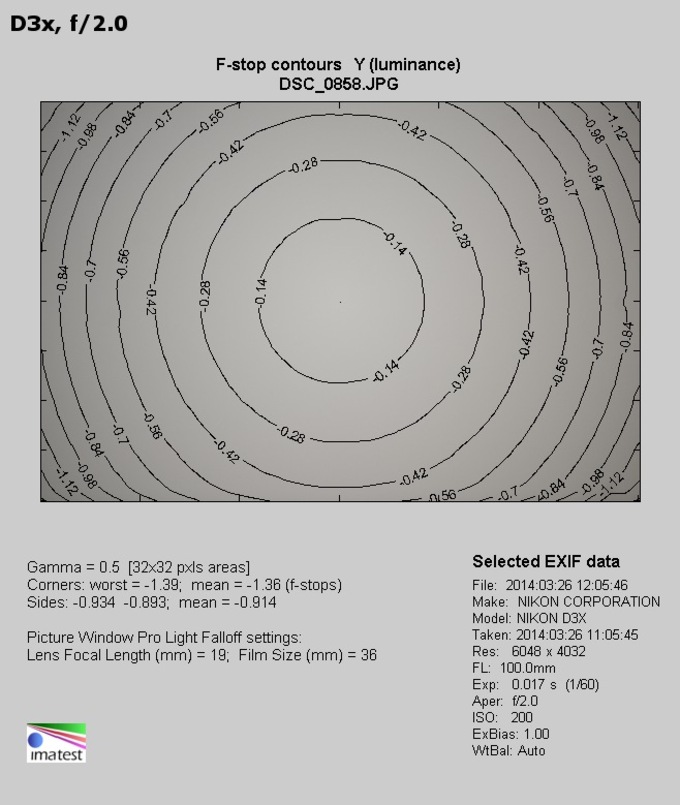

At the maximum relative aperture the vignetting gets to 38% (-1.36 EV). It is a quite significant result, exactly the same as that of the Apo Sonnar. On stopping down to f/2.8 the vignetting decreases to 22% (-0.71 EV) and it becomes imperceptible by f/4.0 where it reaches just 8% (-0.23 EV).

Carl Zeiss Makro-Planar T* 100 mm f/2 ZF.2/ZE - Vignetting
