Lens review

Samyang 12 mm f/2.0 NCS CS

28 May 2014
Arkadiusz Olech

8. Vignetting

The Fujifilm X system cameras correct the vignetting on JPEG files so we always test the vignetting on both JPEG and RAW files. In the case of the Samyang 2/12 the level of that aberration can be assessed while looking at thumbnails, shown below.

JPEG RAW
f/2.0 f/2.0
Samyang 12 mm f/2.0 NCS CS - Vignetting Samyang 12 mm f/2.0 NCS CS - Vignetting
f/2.8 f/2.8
Samyang 12 mm f/2.0 NCS CS - Vignetting Samyang 12 mm f/2.0 NCS CS - Vignetting
f/4.0 f/4.0
Samyang 12 mm f/2.0 NCS CS - Vignetting Samyang 12 mm f/2.0 NCS CS - Vignetting
f/5.6 f/5.6
Samyang 12 mm f/2.0 NCS CS - Vignetting Samyang 12 mm f/2.0 NCS CS - Vignetting


Already on JPEG files the vignetting makes itself felt. At the maximum relative aperture it amounts to 44% (-1.69 EV). By f/2.8 it is still clearly visible as its level reaches 32% (-1.13 EV). Only by stopping down the aperture to f/4.0 you can talk about moderate values as the vignetting is 26% (-0.87 EV). Further stopping down has little influence on the image quality in the frame corners because by f/5.6 the level of that aberration gets to 24% (-0.78 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

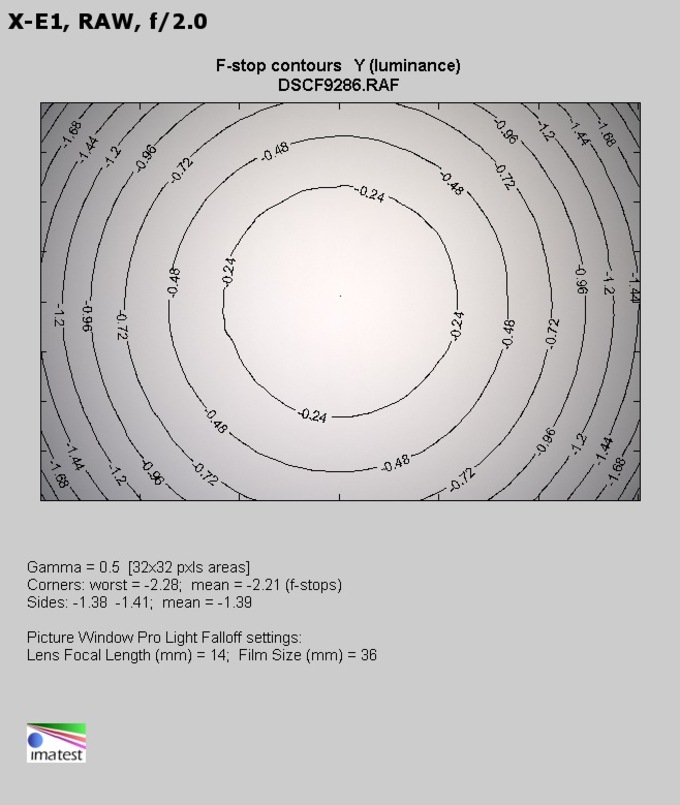

However, the problem becomes really serious for RAW files. At the maximum relative aperture the vignetting is as high as 54% (-2.21 EV). The stopping down helps but not as much as you would expect. By f/2.8 the brightness loss in the frame corners is 42% (-1.60 EV) and by f/4.0 it still amounts to 35% (-1.27 EV). By f/5.6 and higher aperture values the vignetting remains constant on a level of 32% (-1.12 EV).

Samyang 12 mm f/2.0 NCS CS - Vignetting
