LensTip.com

Lens review

Fujifilm Fujinon XF 50-140 mm f/2.8 R LM OIS WR

21 December 2014
Arkadiusz Olech

6. Distortion

In images saved as JPEG files you won’t be able to notice the distortion almost at all because the software of the camera is able to correct it very efficiently. At 50, 70, 90 and 140 mm we measured it as respectively: −0.02%, +0.03%, +0.09% and +0.09%.

If you want to see how the optics really deals with the distortion you have to develop RAW files using an independent program like e.g. dcraw. The results of such an operation show that the distortion level is noticeable. At 50 mm the problem is still slight because our measurements showed pincushion distortion of +0.51%; still that aberration increases with the increase of the focal lengths reaching +1.28% at 70 mm and +1.54% at 90 mm. At the maximum focal length the distortion is the highest, amounting to +1.95%.

In a case of an expensive, professional lens delegating the distortion correction to the software of the camera is not such a great idea. Some full frame 70-200 mm class rivals of the tested Fujinon proved that the optics is able to correct the distortion very efficiently, reducing it to even imperceptible levels.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

JPEG, 50 mm
Fujifilm Fujinon XF 50-140 mm f/2.8 R LM OIS WR  - Distortion
JPEG, 70 mm
Fujifilm Fujinon XF 50-140 mm f/2.8 R LM OIS WR  - Distortion
JPEG, 90 mm
Fujifilm Fujinon XF 50-140 mm f/2.8 R LM OIS WR  - Distortion
JPEG, 140 mm
Fujifilm Fujinon XF 50-140 mm f/2.8 R LM OIS WR  - Distortion

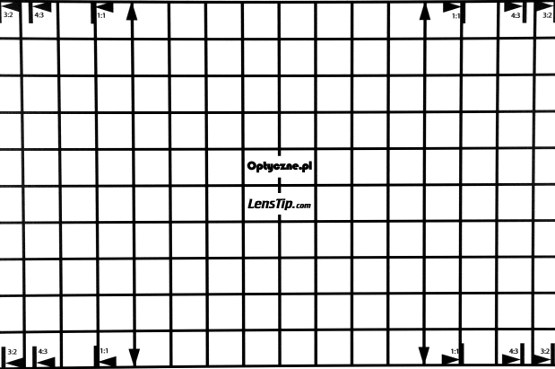

RAW, 50 mm
Fujifilm Fujinon XF 50-140 mm f/2.8 R LM OIS WR  - Distortion
RAW, 70 mm
Fujifilm Fujinon XF 50-140 mm f/2.8 R LM OIS WR  - Distortion
RAW, 90 mm
Fujifilm Fujinon XF 50-140 mm f/2.8 R LM OIS WR  - Distortion

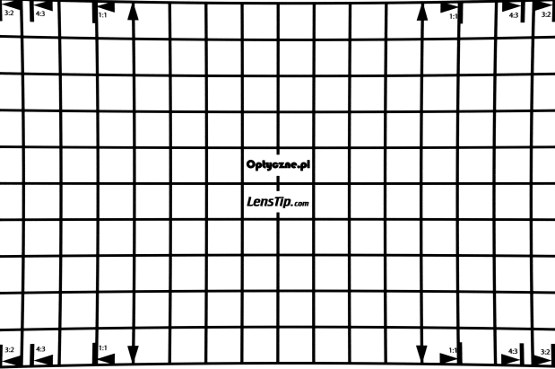

RAW, 140 mm
Fujifilm Fujinon XF 50-140 mm f/2.8 R LM OIS WR  - Distortion
