LensTip.com

Lens review

Fujifilm Fujinon XF 90 mm f/2 R LM WR

22 July 2015
Arkadiusz Olech

8. Vignetting

Let’s check what the level of light fall-off of the tested lens is, both in JPEG and in RAW files, developed by independent software.

X-E1, JPEG, f/2.0 X-E1, RAW, f/2.0
Fujifilm Fujinon XF 90 mm f/2 R LM WR - Vignetting Fujifilm Fujinon XF 90 mm f/2 R LM WR - Vignetting
X-E1, JPEG, f/2.8 X-E1, RAW, f/2.8
Fujifilm Fujinon XF 90 mm f/2 R LM WR - Vignetting Fujifilm Fujinon XF 90 mm f/2 R LM WR - Vignetting
X-E1, JPEG, f/4.0 X-E1, RAW, f/4.0
Fujifilm Fujinon XF 90 mm f/2 R LM WR - Vignetting Fujifilm Fujinon XF 90 mm f/2 R LM WR - Vignetting


When it comes to JPEG files the vignetting is very difficult to notice. Already at the maximum relative aperture it amounts to just 13% (−0.39 EV) and it decreases to an imperceptible level of 6% (−0.17 EV) on stopping down the aperture by 1 EV.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

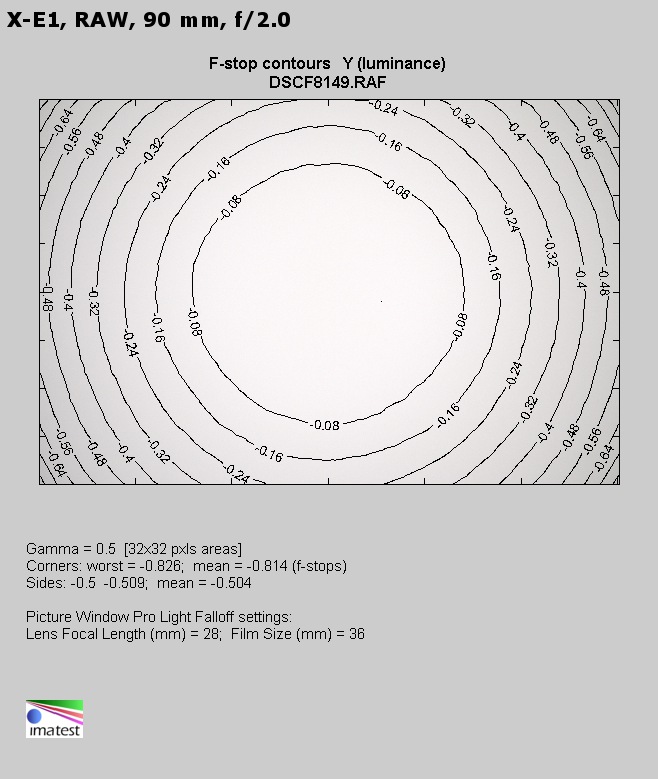

In RAW files the vignetting level is a bit higher. By f/2.0 it reaches a moderate value of 25% (−0.81 EV). The problem disappears almost completely by f/2.8, where we got a result of just 11% (−0.33 EV). On stopping down the aperture to f/4.0 you see the vignetting decrease to 5% (−0.14 EV).

Fujifilm Fujinon XF 90 mm f/2 R LM WR - Vignetting
