LensTip.com

Lens review

Fujifilm Fujinon XF 90 mm f/2 R LM WR

22 July 2015
Arkadiusz Olech

4. Image resolution

The resolution test of the Fujinon XF 90 mm f/2.0 R LM WR was based on RAW files from the Fujifilm X-E1 camera. Those files were developed by dcraw program with the 3-pass X-trans filter algorithm) and analyzed by the Imatest package.

Let’s remind here that the best fixed focal Fujifilm X system lenses tested that way can go as high as 73-75 lpmm and the decency level is situated near 42-43 lpmm. Now let’s see how the tested lens compares here. An appropriate graph with MTF50 values in the centre and on the edge of the frame is presented below.

Fujifilm Fujinon XF 90 mm f/2 R LM WR - Image resolution


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


When it comes to the frame centre already at the maximum relative aperture you get excellent results, reaching almost 72 lpmm. By f/2.8 the Fujinon’s 2/90 resolution increases to a record-breaking value of 78.5 ±0.6 lpmm. It’s enough to say that so far no other lens, tested on the Fujifilm sensors, has managed to fare so well. I think you don’t need any other commentary here.

When it comes to the edge of the frame you don’t have any reasons to complain either but it has to be said the edge is not as impressing. By the way there shouldn’t be so much of difference between the centre and the edge of the frame in a case of a telephoto lens of such a good quality.

At the end of the chapter, traditionally, we present crops of our resolution testing chart saved as JPEG files along with RAW files, used for the analysis above.

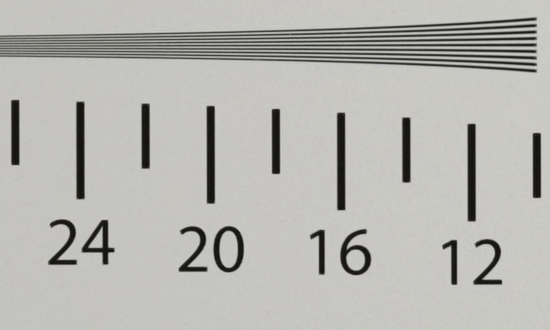

Fujifilm X-E1, JPEG, f/2.0
Fujifilm Fujinon XF 90 mm f/2 R LM WR - Image resolution

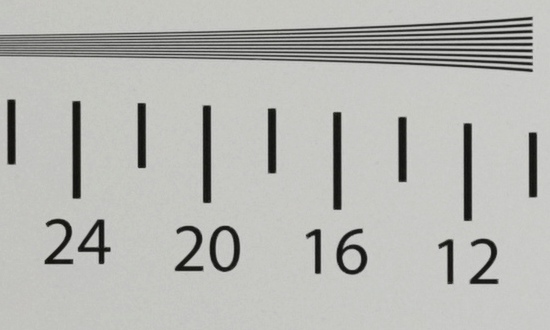

Fujifilm X-E1, JPEG, f/2.8
Fujifilm Fujinon XF 90 mm f/2 R LM WR - Image resolution
