LensTip.com

Lens review

Fujifilm Fujinon XF 90 mm f/2 R LM WR

22 July 2015
Arkadiusz Olech

6. Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The Fujifilm company is not especially consistent when it comes to the distortion correction. In some lenses they correct it as it should be done and in some that aberration is left to be dealt with by the camera’s software.

In the case of a telephoto lens with an angle of view amounting to 20 degrees the distortion correction is easy and we would be surprised if the producers didn’t do it properly. Our measurements taken in JPEG and RAW files show that you deal here with a low level of pincushion distortion which values are respectively +0.46% and +0.48%. These results are, within the margin of error, the same; it indicates that the distortion is corrected very efficiently by the optics itself and doesn’t need any support from the camera’s software.

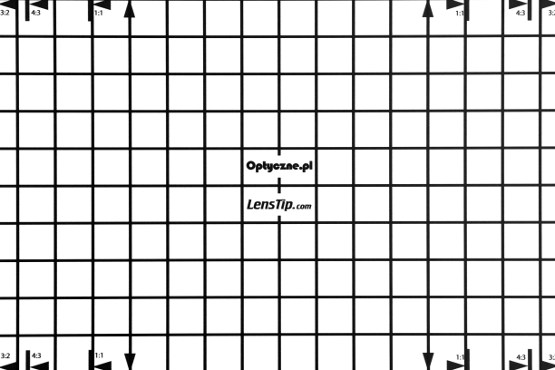

Fujifilm X-E1, JPEG
Fujifilm Fujinon XF 90 mm f/2 R LM WR - Distortion

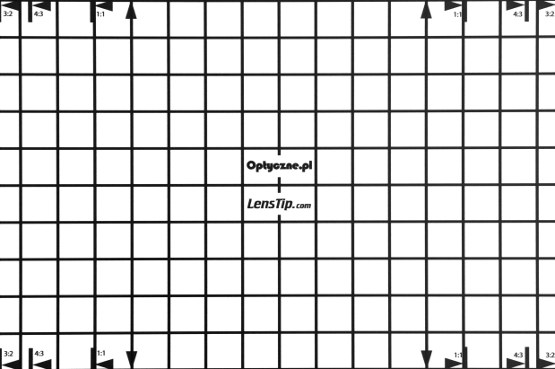

Fujifilm X-E1, RAW
Fujifilm Fujinon XF 90 mm f/2 R LM WR - Distortion
