LensTip.com

Lens review

Samyang 100 mm f/2.8 ED UMC MACRO

22 August 2015
Arkadiusz Olech

8. Vignetting

First let’s check how the Samyang 2.8/100 Macro performs on the smaller sensor of the Canon 50D; the appropriate thumbnails are presented below.

Canon 50D, f/2.8 Canon 50D, f/4.0
Samyang 100 mm f/2.8 ED UMC MACRO - Vignetting Samyang 100 mm f/2.8 ED UMC MACRO - Vignetting


Only by f/2.8 aperture you have slight chances of noticing the vignetting as that aberration amounts to 15% (−0.48 EV) there. When you stop down the aperture to f/4.0 the problem disappears completely with the light fall-off being just 4% (-0.12 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Now let’s see how the tested lens fares on full frame.

Canon 5D III, f/2.8 Canon 5D III, f/4.0
Samyang 100 mm f/2.8 ED UMC MACRO - Vignetting Samyang 100 mm f/2.8 ED UMC MACRO - Vignetting
Canon 5D III, f/5.6 Canon 5D III, f/8.0
Samyang 100 mm f/2.8 ED UMC MACRO - Vignetting Samyang 100 mm f/2.8 ED UMC MACRO - Vignetting

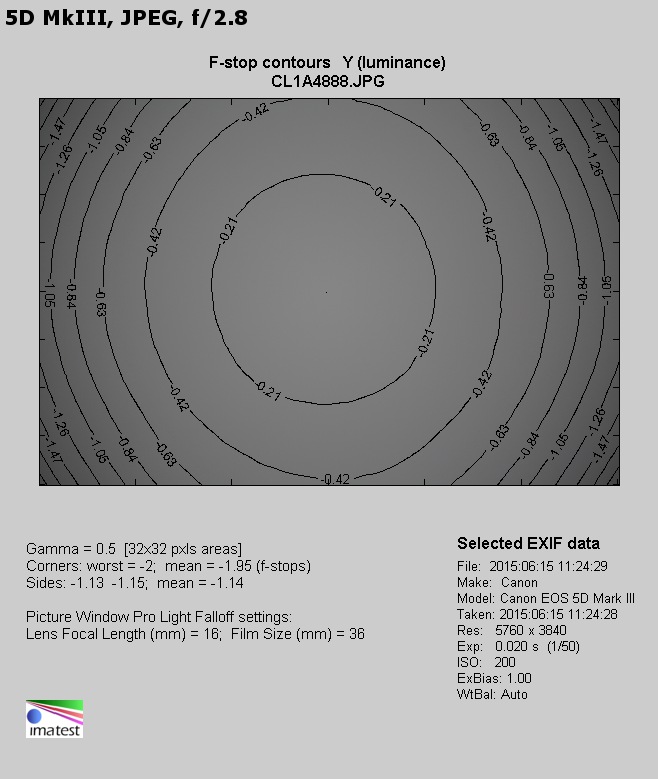

There are much more problems here. At the maximum relative aperture the brightness loss in the frame corners reaches a very high level of 49% (−1.95 EV). On stopping down the lens to f/4.0 you see that aberration decrease to a value of 24% (−0.80 EV), and by f/5.6 it goes down further to 14% (−0.45 EV). By f/8.0 all the problems disappear completely because the result amounts to just 9% (−0.27 EV).

In this category the Samyang couldn’t compete successfully with its direct rivals as well. The Tamron 2.8/90 VC, the Canon 2.8/100L and the Nikkor 2.8/105 VR had better results; only the Sigma 2.8/105 OS was weaker.

Samyang 100 mm f/2.8 ED UMC MACRO - Vignetting
