Fujifilm Fujinon XF 35 mm f/2 R WR

22 October 2015
Arkadiusz Olech

8. Vignetting

Let’s check how the lens performs in the vignetting category both in JPEG and RAW files, developed by independent software.

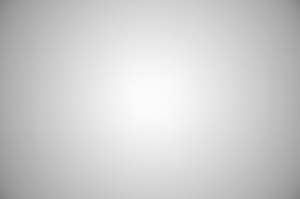

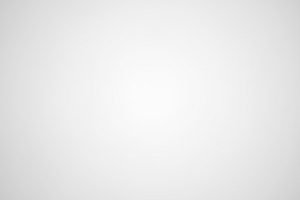

X-E1, JPEG, f/2.0 X-E1, RAW, f/2.0
Fujifilm Fujinon XF 35 mm f/2 R WR - Vignetting Fujifilm Fujinon XF 35 mm f/2 R WR - Vignetting

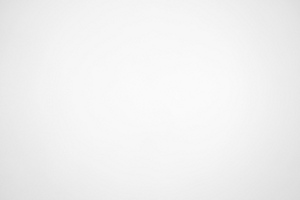

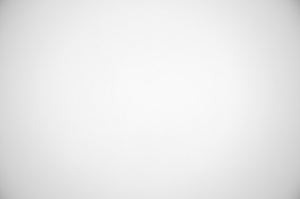

X-E1, JPEG, f/2.8 X-E1, RAW, f/2.8
Fujifilm Fujinon XF 35 mm f/2 R WR - Vignetting Fujifilm Fujinon XF 35 mm f/2 R WR - Vignetting

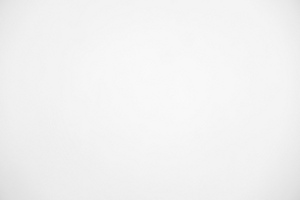

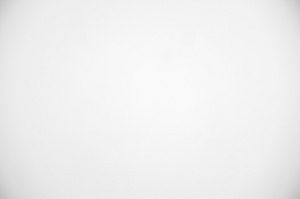

X-E1, JPEG, f/4.0 X-E1, RAW, f/4.0
Fujifilm Fujinon XF 35 mm f/2 R WR - Vignetting Fujifilm Fujinon XF 35 mm f/2 R WR - Vignetting


You don’t have to think about the vignetting at all while working with JPEG files. Already at the maximum relative aperture it amounts to just 18% (−0.57 EV) and on stopping down to f/2.8 it decreases to a level of 12% (−0.36 EV). What’s interesting, passing to the f/4.0 aperture makes that aberration decrease to 11% (−0.33 EV); only by employing f/5.6 you can see that problem disappear completely (7%).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

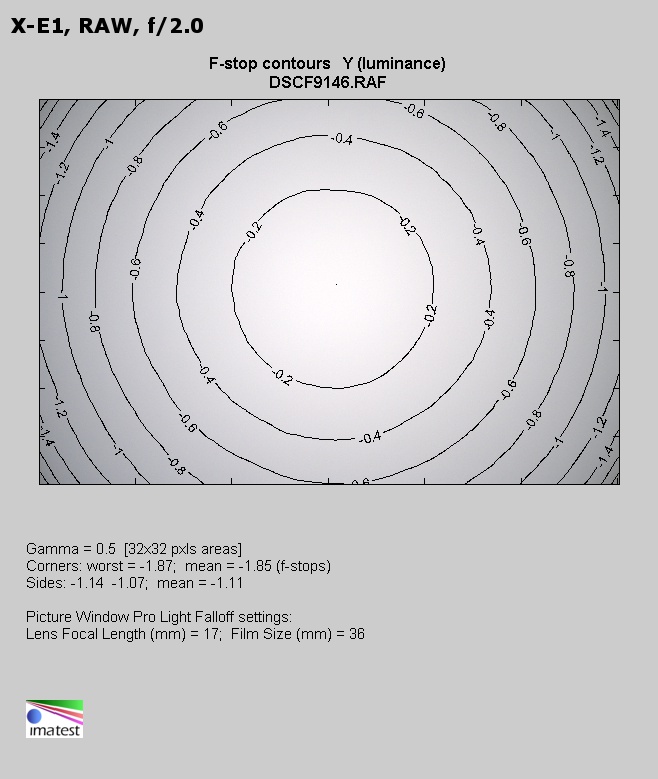

Still only the analysis of RAW files, developed by independent software, is able to show the whole truth about the vignetting performance of the lens’s optics. In that case there are much more problems and it is especially visible at the maximum relative aperture where that aberration reaches 47% (−1.85 EV). On the one hand it’s a lot, on the other the result is hardly a surprise. Good f/2.0 aperture fastness and small physical dimensions – it couldn’t have ended otherwise. You get nothing for nothing…

When you stop down the aperture to f/2.8 the vignetting decreases to 29% (−1.01 EV) and by f/4.0 it falls to a level of 22% (−0.73 EV). Further vignetting drop along with the stopping down is slight. By f/5.6 that aberration reaches 20% (−0.66 EV) and by f/8.0 it amounts to 18% (−0.56 EV). Some chance to notice the light fall-off you get even by f/11 where it gets to 14% (−0.46 EV).

Fujifilm Fujinon XF 35 mm f/2 R WR - Vignetting
