Lens review

Panasonic G Macro 30 mm f/2.8 ASPH. MEGA O.I.S.

17 March 2016
Arkadiusz Olech

8. Vignetting

Let’s glance at thumbnails below to assess the vignetting of the tested lens.

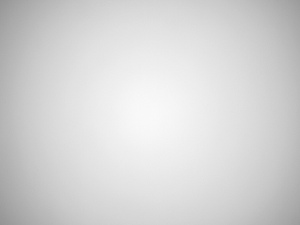

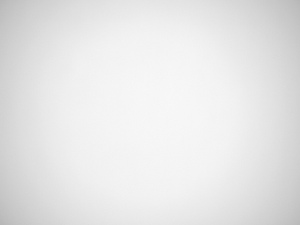

Olympus E-PL1, f/2.8 Olympus E-PL1, f/4.0
Panasonic G Macro 30 mm f/2.8 ASPH. MEGA O.I.S. - Vignetting Panasonic G Macro 30 mm f/2.8 ASPH. MEGA O.I.S. - Vignetting

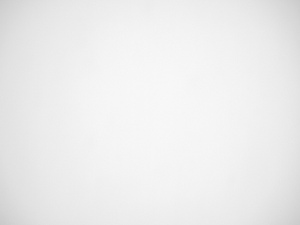

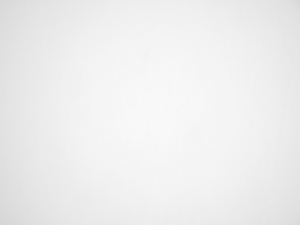

Olympus E-PL1, f/5.6 Olympus E-PL1, f/8.0
Panasonic G Macro 30 mm f/2.8 ASPH. MEGA O.I.S. - Vignetting Panasonic G Macro 30 mm f/2.8 ASPH. MEGA O.I.S. - Vignetting


At the maximum relative aperture you have to take into account the loss of 38% (−1.37 EV) of light in the frame corners. It is not a result to be proud of but also nothing to be ashamed of. It is more worrisome that the vignetting decreases quite slowly with the stopping down. By f/4.0 its value reaches 24% (−0.81 EV), and by f/5.6 it is 17% (−0.39 EV). Even by f/8.0 you get some chances to notice it as we got a value of 13% (−0.39 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The vignetting is by 1-3% higher for RAW files and it is mainly a result of a bit wider field of view, leaving some margin necessary for the distortion correction done by the software of the camera.

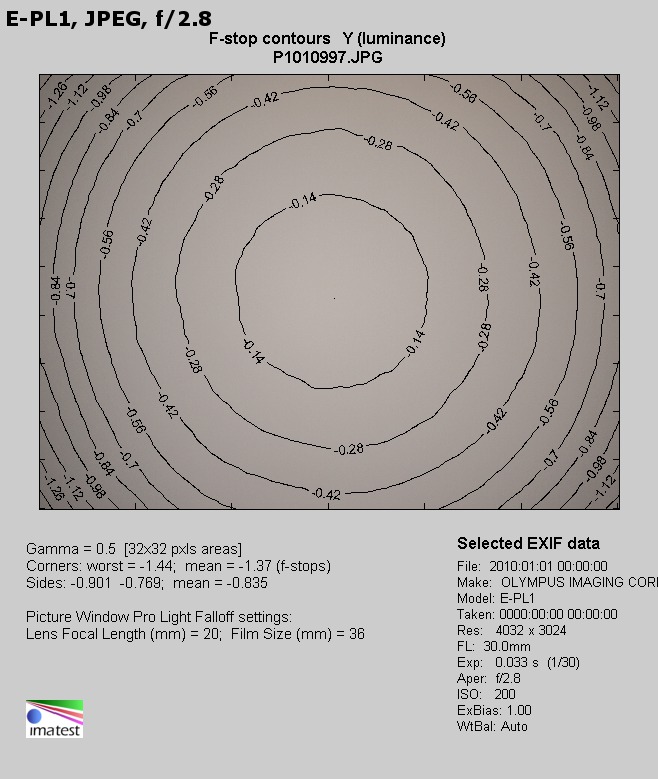

Panasonic G Macro 30 mm f/2.8 ASPH. MEGA O.I.S. - Vignetting
