Lens review

Panasonic G Macro 30 mm f/2.8 ASPH. MEGA O.I.S.

17 March 2016
Arkadiusz Olech

6. Distortion

In the case of lenses designed for mirrorless cameras the distortion correction is often left for the software of the body to deal with. Still in the case of the 30 mm focal length which, on the Micro 4/3 sensor provides an angle of view of 40 degrees so very close to the standard one, there should be no distortion-related problems whatsoever.

Indeed there are no problems but it doesn’t mean the aberration is completely invisible. For RAW files you can notice “pincushion” of +1.09%, which is corrected to +0.17% in the case of JPEG files.

It is interesting how the distortion result of the tested lens differs from the results of the Panasonic 1.7/25, tested by us not so long ago. In that case the focal length is just by 5 mm bigger and the distortion had not only an opposite sign but also its value, that of −1.99% was noticeably different too.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Olympus E-PL1, JPEG
Panasonic G Macro 30 mm f/2.8 ASPH. MEGA O.I.S. - Distortion

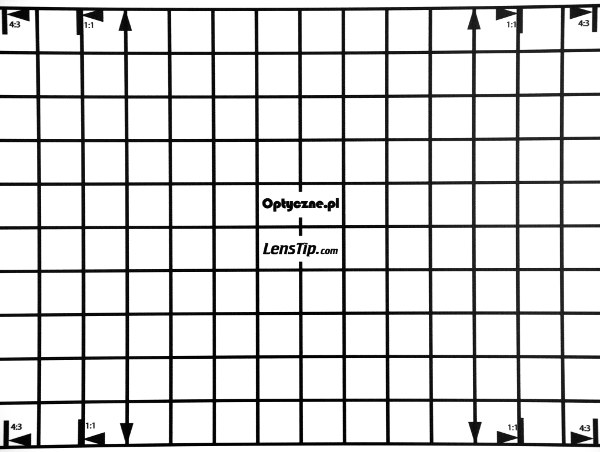

Olympus E-PL1, RAW
Panasonic G Macro 30 mm f/2.8 ASPH. MEGA O.I.S. - Distortion
