Tokina AT-X PRO FX SD 24-70 mm f/2.8 (IF)

8 April 2016
Arkadiusz Olech

8. Vignetting

First let’s check the vignetting of the tested lens on a small APS-C sensor of the Canon EOS 50D. Appropriate thumbnails are shown below.

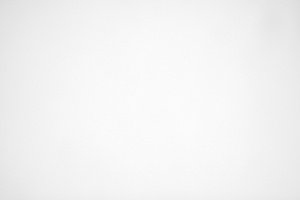

Canon 50D, 24 mm, f/2.8 Canon 50D, 24 mm, f/4.0
Tokina AT-X PRO FX SD 24-70 mm f/2.8 (IF) - Vignetting Tokina AT-X PRO FX SD 24-70 mm f/2.8 (IF) - Vignetting

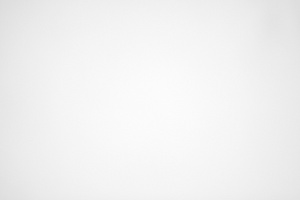

Canon 50D, 45 mm, f/2.8 Canon 50D, 45 mm, f/4.0
Tokina AT-X PRO FX SD 24-70 mm f/2.8 (IF) - Vignetting Tokina AT-X PRO FX SD 24-70 mm f/2.8 (IF) - Vignetting

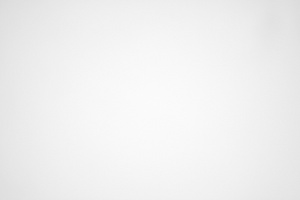

Canon 50D, 70 mm, f/2.8 Canon 50D, 70 mm, f/4.0
Tokina AT-X PRO FX SD 24-70 mm f/2.8 (IF) - Vignetting Tokina AT-X PRO FX SD 24-70 mm f/2.8 (IF) - Vignetting


After looking at these thumbnails you know that no matter what focal length you employ, there is practically no vignetting at all. Our measurements confirm that effect. At every focal length at the maximum relative aperture we got exactly the same result that of 11% (−0.34 EV). On stopping down the aperture by 1 EV you make the vignetting decrease by 1% at the shortest focal length and by 4-5% by the longer focal lengths.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Now let’s see how the situation changes when you attach the tested Tokina to the full frame EOS 5D Mark III.

Canon 5D MkIII, 24 mm, f/2.8 Canon 5D MkIII, 24 mm, f/4.0
Tokina AT-X PRO FX SD 24-70 mm f/2.8 (IF) - Vignetting Tokina AT-X PRO FX SD 24-70 mm f/2.8 (IF) - Vignetting

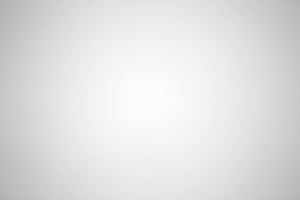

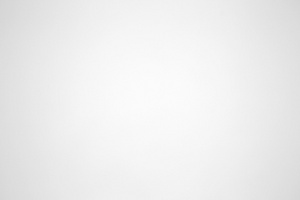

Canon 5D MkIII, 45 mm, f/2.8 Canon 5D MkIII, 45 mm, f/4.0
Tokina AT-X PRO FX SD 24-70 mm f/2.8 (IF) - Vignetting Tokina AT-X PRO FX SD 24-70 mm f/2.8 (IF) - Vignetting

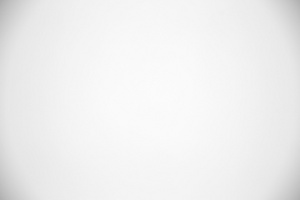

Canon 5D MkIII, 70 mm, f/2.8 Canon 5D MkIII, 70 mm, f/4.0
Tokina AT-X PRO FX SD 24-70 mm f/2.8 (IF) - Vignetting Tokina AT-X PRO FX SD 24-70 mm f/2.8 (IF) - Vignetting


The most difficult combination of wide angle and f/2.8 aperture causes the loss of 55% (−2.29 EV) of light in the frame corners. It is a lot but not more than in the case of competitors. For the same combination of parameters both the Canon 24-70 mm II and the Tamron 24-70 mm VC lost over 60% of light. The Nikkor 24-70 mm VR performed better with a result of 46%.

Stopping down the aperture helps with the vignetting correction but to a degree which could hardly be called satisfactory. By f/4.0 that aberration reaches 38% (−1.37 EV), by f/5.6 it is 30% (−1.02 EV), and by f/8.0 it still gets to a still significant level of 29% (−1.00 EV). Further stopping down doesn’t provide any measureable effects…

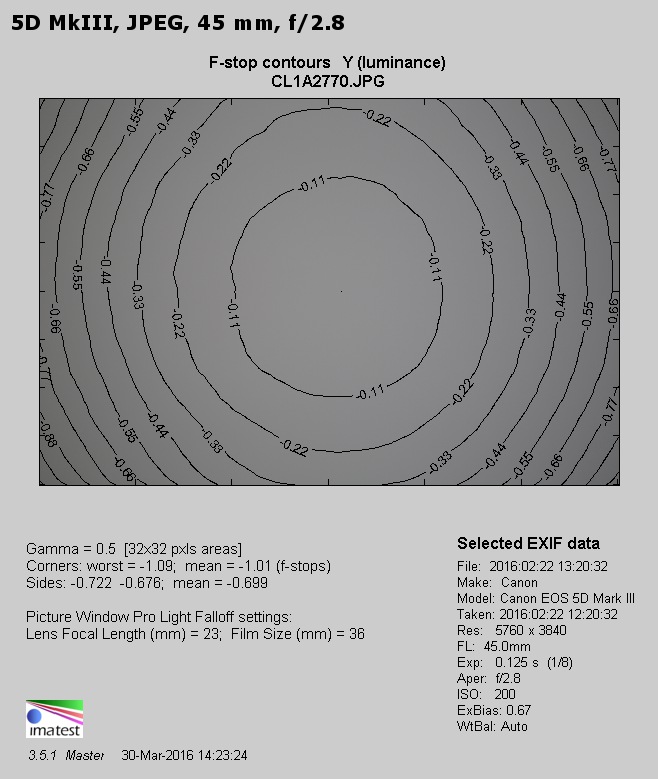

A significantly better situation might be observed in the middle of the focal range - at the maximum relative aperture, we assessed the vignetting effect as 29% (−0.99 EV). On stopping down to f/4.0 that aberration decreases to 15% (−0.46 EV) and, what’s interesting, stops reacting to further stopping down.

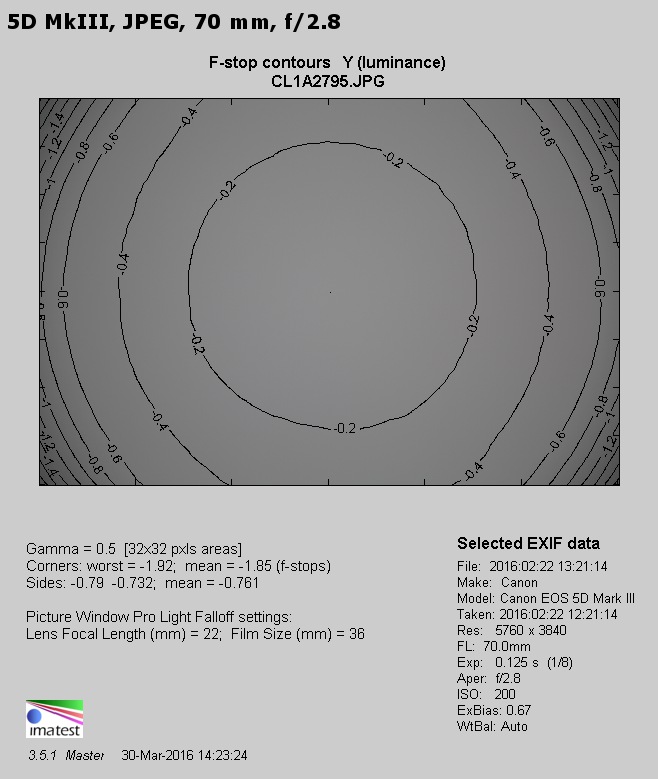

At 70 mm the situation is worse once again but not so bad as at 24 mm. The brightness loss in the frame corners amounts to 47% (−1.85 EV) and it decreases to 29% (−0.98 EV) on stopping down the aperture to f/4.0. Employing f/5.6 relative aperture means 20% (−0.66 EV) of vignetting and its level decreases to 14% (−0.42 EV) on further stopping down to f/8.0. By f/11 the reduction of brightness in the corners amounts to 12% (−0.38 EV).
