6. Distortion

The software of micro 4/3 bodies correct the distortion of lenses; in the case of the Olympus PRO 40-150 mm it is done very well. Distortion level remains practically zero at every focal length and exact values we got in our tests are as follow: +0.03%, −0.06%, +0.03% and +0.05%, for 40, 90, 150 and 210 mm (TC) focal lengths respectively.

Still if you want to see the real level of distortion of the tested lens you have to consult RAW files developed by dcraw program. The situation is no longer as rosy, especially at the 40 mm focal length where you observe a noticeable “barrel” of −2.02%. Fortunately at the longer end of the focal range the problems with deformations are not so distinct. At 90 mm the distortion disappears almost completely (+0.12%) and at 150 mm you deal with slight pincushion of +0.71%. After attaching the converter the distortion decreases to −0.09% so you can say there are no problems at all.

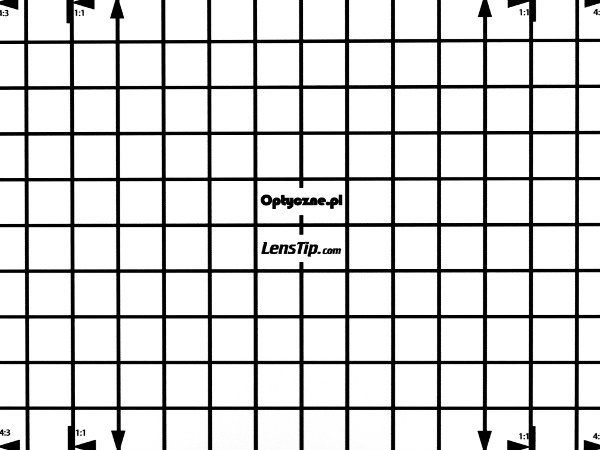

Olympus E-PL1, JPEG, 40 mm
Olympus M.Zuiko Digital 40-150 mm f/2.8 ED PRO - Distortion

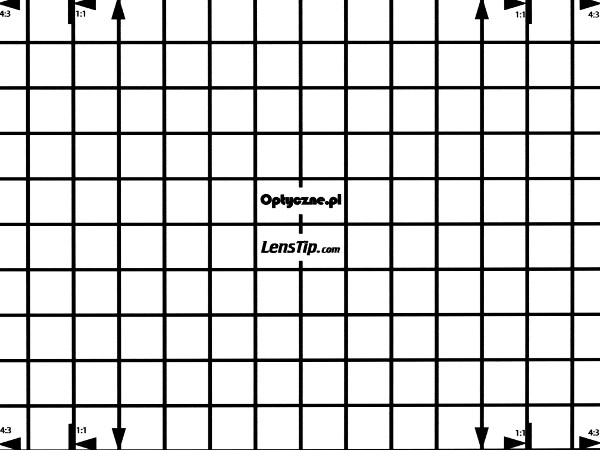

Olympus E-PL1, JPEG, 90 mm
Olympus M.Zuiko Digital 40-150 mm f/2.8 ED PRO - Distortion

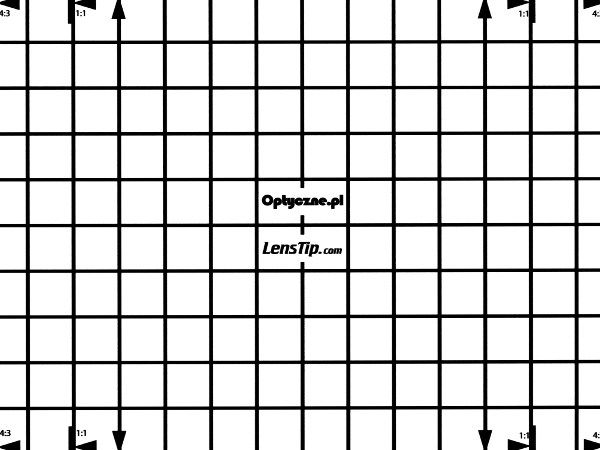

Olympus E-PL1, JPEG, 150 mm
Olympus M.Zuiko Digital 40-150 mm f/2.8 ED PRO - Distortion

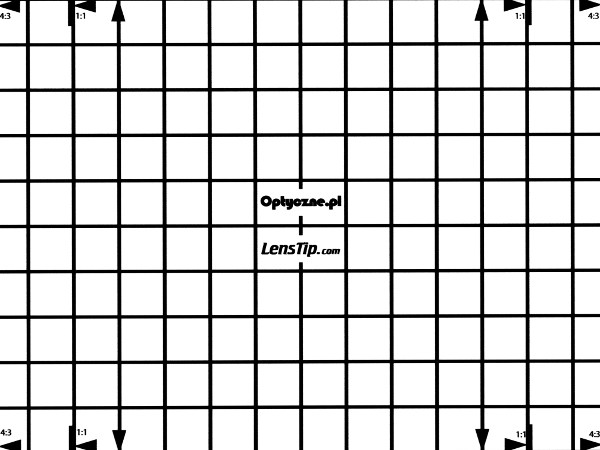

Olympus E-PL1, JPEG, 210 mm (TC)
Olympus M.Zuiko Digital 40-150 mm f/2.8 ED PRO - Distortion


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

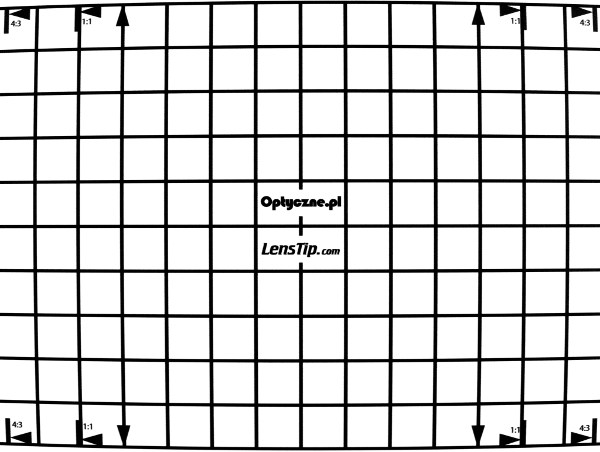

Olympus E-PL1, RAW, 40 mm
Olympus M.Zuiko Digital 40-150 mm f/2.8 ED PRO - Distortion

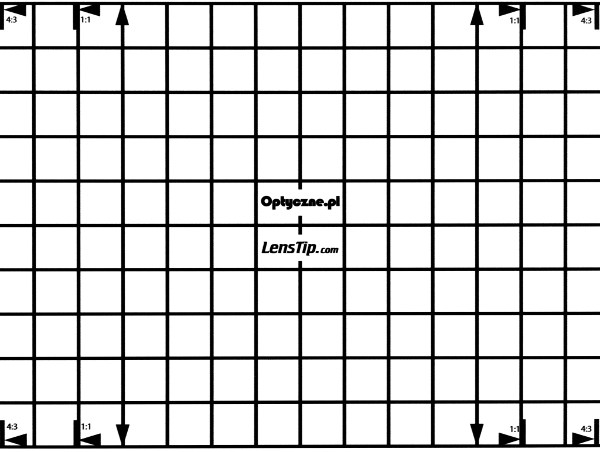

Olympus E-PL1, RAW, 90 mm
Olympus M.Zuiko Digital 40-150 mm f/2.8 ED PRO - Distortion

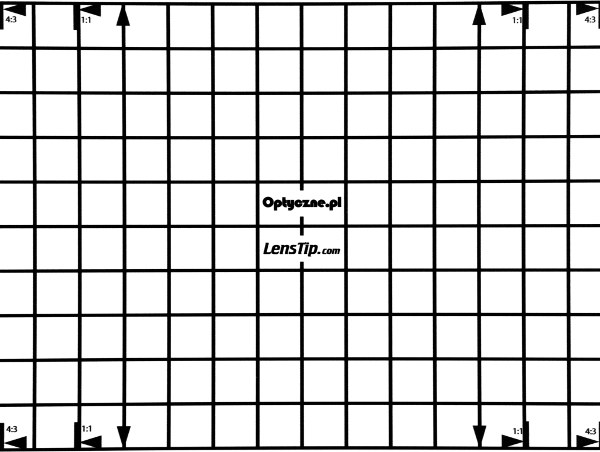

Olympus E-PL1, RAW, 150 mm
Olympus M.Zuiko Digital 40-150 mm f/2.8 ED PRO - Distortion

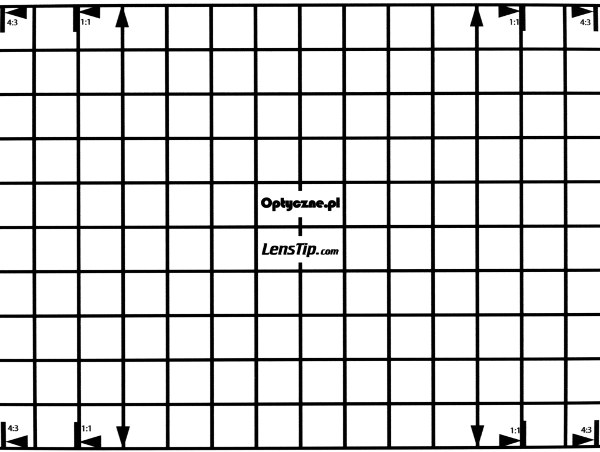

Olympus E-PL1, RAW, 210 mm (TC)
Olympus M.Zuiko Digital 40-150 mm f/2.8 ED PRO - Distortion
