LensTip.com

Lens review

Carl Zeiss Batis 25 mm f/2

15 September 2016
Arkadiusz Olech

6. Distortion

24-25 mm fixed focal length lenses usually show barrel distortion reaching even −2%. The Zeiss Distagon T* 25 mm f/2.0 ZE/ZF.2 was a good example of that tendency; even on the APS-C sensor its distortion amounted to −1.11% and it increased to −1.96% on full frame.

Compared to that the results of the Batis 2/25 are looking very well because on the smaller sensor we got −0.68%, and on the bigger one +0.06%. If those values look strange at first glance you have to know they are a result of moustache distortion featured by the tested lens. On the APS-C detector you see just slight barrel distortion but on full frame the lines bend the other way so the averaged out results across the whole area provide values close to zero.

On the one hand you can complain about the moustache distortion Zeiss employed here but on the other hand it is so slight that almost imperceptible. It means your photos most likely will be devoid of any geometric deformations.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Sony A7R II, APS-C, RAW
Carl Zeiss Batis 25 mm f/2 - Distortion

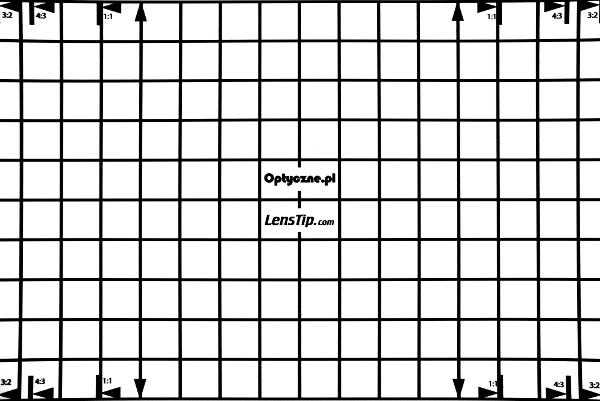

Sony A7R II, FF, RAW
Carl Zeiss Batis 25 mm f/2 - Distortion
