LensTip.com

Lens review

Olympus M.Zuiko Digital ED 25 mm f/1.2 PRO

10 January 2017
Arkadiusz Olech

8. Vignetting

Let’s glance at thumbnails below to assess the vignetting performance of the tested lens for JPEG files from the Olympus O-MD E-M5 Mark II.

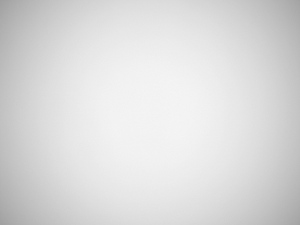

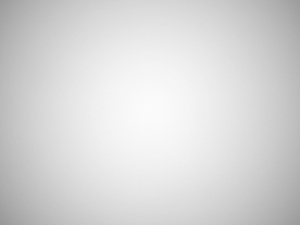

Olympus E-M5 II, f/1.2 Olympus E-M5 II, f/1.4
Olympus M.Zuiko Digital ED 25 mm f/1.2 PRO - Vignetting Olympus M.Zuiko Digital ED 25 mm f/1.2 PRO - Vignetting

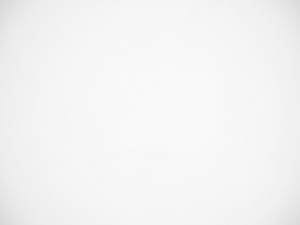

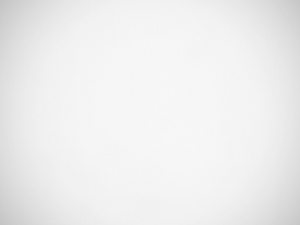

Olympus E-M5 II, f/2.0 Olympus E-M5 II, f/2.8
Olympus M.Zuiko Digital ED 25 mm f/1.2 PRO - Vignetting Olympus M.Zuiko Digital ED 25 mm f/1.2 PRO - Vignetting

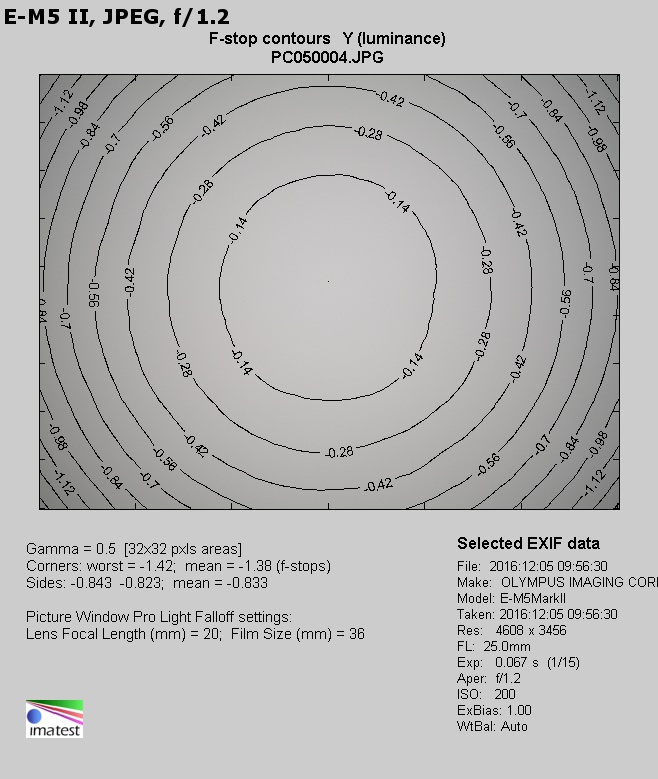

At the maximum relative aperture the vignetting reaches 38% (-1.38 EV). It is a distinct level but, taking into account the fastness of the lens, still acceptable. The vignetting of the slower Panaleica 1.4/25 was definitely higher (49%). On stopping down the aperture to f/1.4 the vignetting decreases to 33% (-1.15 EV), becoming moderate by f/2.0 where it reaches just 19% (-0.62 EV). Problems practically end by f/2.8 and f/4.0 where we got the following results: 13% (-0.39 EV) and 8% (-0.25 EV) respectively.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

When it comes to RAW files the vignetting level was a bit higher due to a slightly bigger area they cover. Still the differences between them and JPEG files didn’t exceed 2% so were bordering margin of error.

Olympus M.Zuiko Digital ED 25 mm f/1.2 PRO - Vignetting
