5. Chromatic and spherical aberration

Chromatic aberration

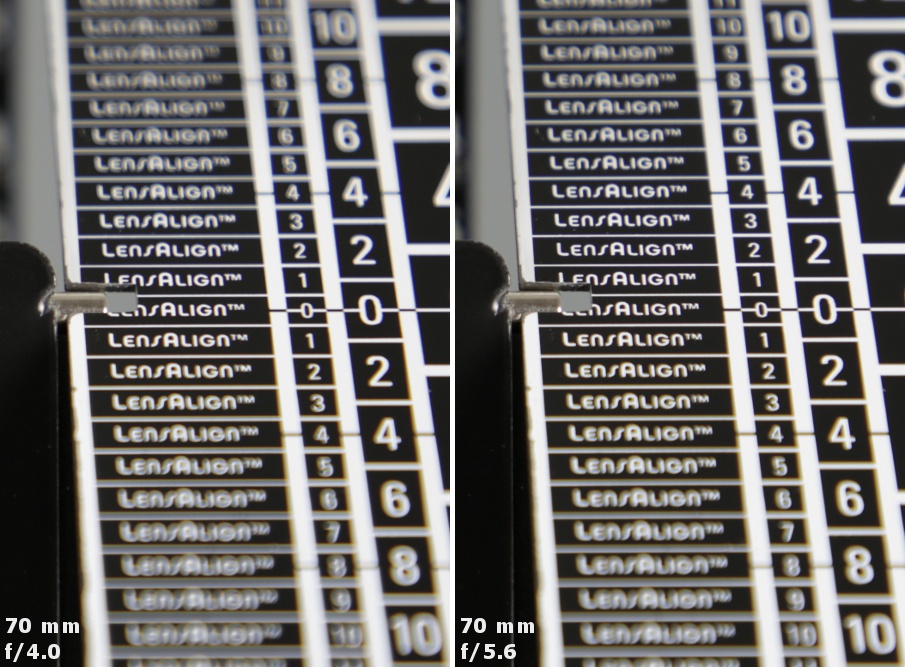

Photos below prove the tested lens doesn’t have any serious problems concerning the longitudinal chromatic aberration. A slight colouring of out-of-focus images is visible but only slightly. It would be difficult to notice in real life photos.

Canon EF 24-105 mm f/4L IS II USM  - Chromatic and spherical aberration

Canon EF 24-105 mm f/4L IS II USM  - Chromatic and spherical aberration



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

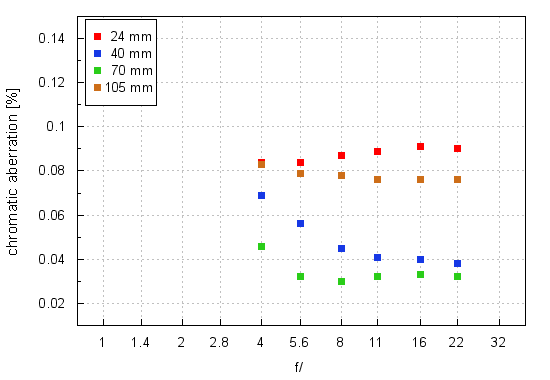

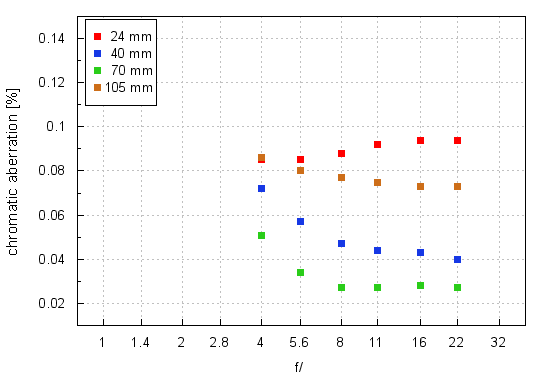

Now let’s check the performance concerning the lateral chromatic aberration – graphs below present the results of the Canon 24-105 mm II respectively on the edge of the APS-C sensor and on the edge of full frame.

Canon EF 24-105 mm f/4L IS II USM  - Chromatic and spherical aberration

Canon EF 24-105 mm f/4L IS II USM  - Chromatic and spherical aberration

At both ends of the range of focal legths you see the highest level of that aberration, with results amounting to 0.08–0.09%. Still such a level should be considered slight. In the middle of the range of focal lengths there are no chromatic aberration problems whatsoever.

In this category the new Canon prevailed over its rivals. The older version of that lens could get as high as over 0.14%; the Sigma 24-105 mm OS had a level of aberration close to 0.16% and the worst results belong to the cheaper Canon 24-105 mm STM as they oscillated near 0.12%.

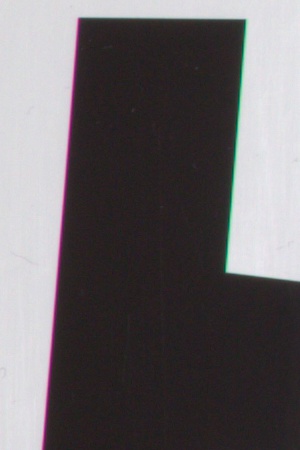

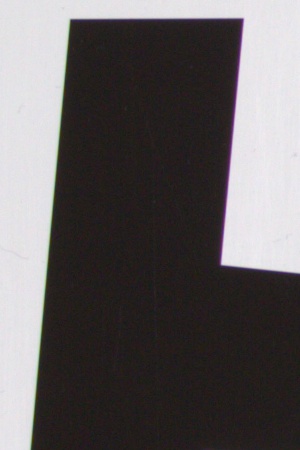

Canon 5D III, RAW, 24 mm, f/16 Canon 5D III, RAW, 70 mm, f/8
Canon EF 24-105 mm f/4L IS II USM  - Chromatic and spherical aberration Canon EF 24-105 mm f/4L IS II USM  - Chromatic and spherical aberration


Spherical aberration

First photos of this chapter don’t show any ‘focus shift’ effect. Circles of light we got in front of and behind the focus aren’t identical but the differences between them can hardly be called huge. It seems spherical aberration problems of the tested lens are smaller than those of the Canon EF 24-105 mm STM or the Sigma 24-105 mm OS.

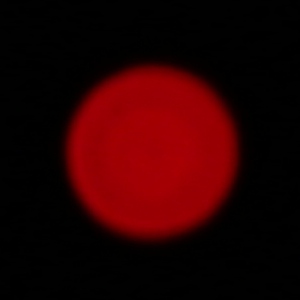

Canon 5D III, 70 mm, f/4.0, in front of Canon 5D III, 70 mm, f/4.0, behind
Canon EF 24-105 mm f/4L IS II USM  - Chromatic and spherical aberration Canon EF 24-105 mm f/4L IS II USM  - Chromatic and spherical aberration

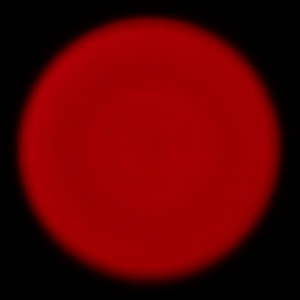

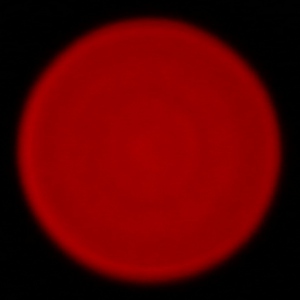

Canon 5D III, 105 mm, f/4.0, in front of Canon 5D III, 105 mm, f/4.0, behind
Canon EF 24-105 mm f/4L IS II USM  - Chromatic and spherical aberration Canon EF 24-105 mm f/4L IS II USM  - Chromatic and spherical aberration
