Lens review

Canon EF 24-105 mm f/4L IS II USM

14 March 2017
Arkadiusz Olech

6. Distortion

On the small sensor of the Canon 50D distortion is visible only at 24 mm focal length where you deal with its ‘barrel’ kind of −1.69%. Near the 35 mm focal length that aberration’s level becomes zero (officially being +0.25%), and at 50 mm it increases to +0.72%. On longer focal lengths the distortion remains the same within the margin of error, amounting to +0.75%, +0.70% and +0.73% respectively at 70, 85 and 105 mm focal lengths.

More distinct problems are visible on full frame where, at the widest angle of view, the deformations reach −3.97%. They become zero right before 35 mm and then they change the sign, at 35 mm reaching an imperceptible level of +0.35%. Then the value of pincushion distortion increases swiftly, at 50 mm getting at +1.58%, and at 70 mm to +1.70%. Practically the same value (+1.69%) we measured at 85 mm; at 105 mm the distortion decreased slightly to +1.58%.

In this category again the new Canon fares better than its rivals. The distortion level of the cheaper Canon 24-105 mm STM, even if it was helped by the moustache variety, still reached −4.31%. The Sigma 24-105 mm OS was weaker than the Canon tested here on both ends of range of focal lengths.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Canon 50D, 24 mm
Canon EF 24-105 mm f/4L IS II USM  - Distortion
Canon 50D, 35 mm
Canon EF 24-105 mm f/4L IS II USM  - Distortion

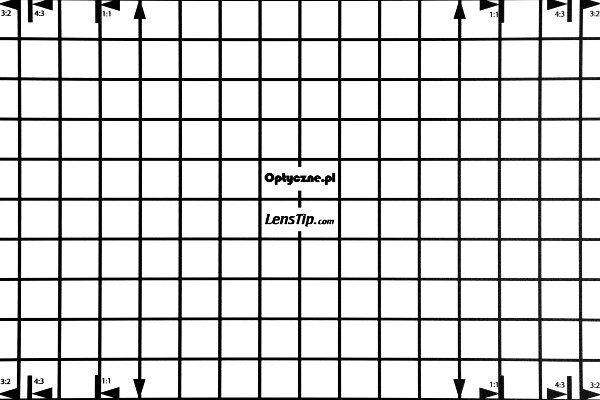

Canon 50D, 50 mm
Canon EF 24-105 mm f/4L IS II USM  - Distortion
Canon 50D, 70 mm
Canon EF 24-105 mm f/4L IS II USM  - Distortion
Canon 50D, 85 mm
Canon EF 24-105 mm f/4L IS II USM  - Distortion

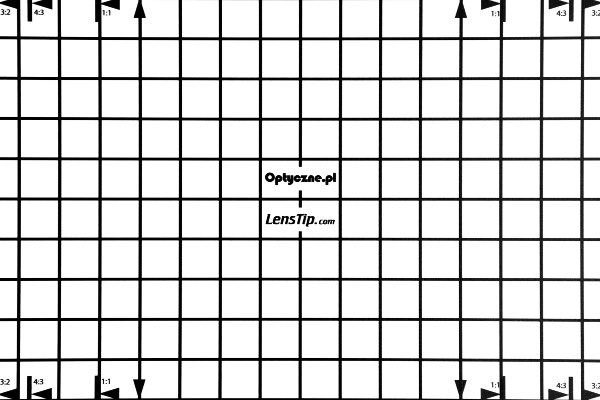

Canon 50D, 105 mm
Canon EF 24-105 mm f/4L IS II USM  - Distortion


Canon 5D Mk III, 24 mm
Canon EF 24-105 mm f/4L IS II USM  - Distortion

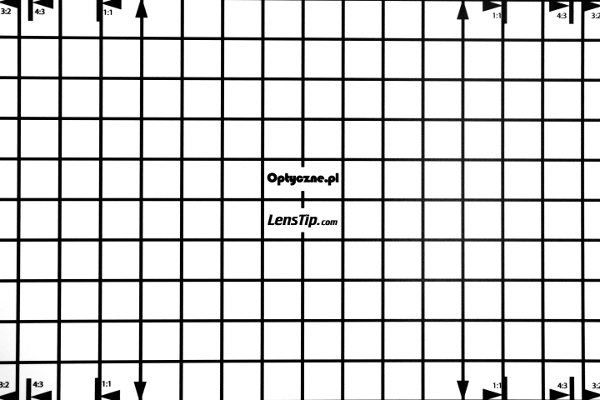

Canon 5D Mk III, 35 mm
Canon EF 24-105 mm f/4L IS II USM  - Distortion

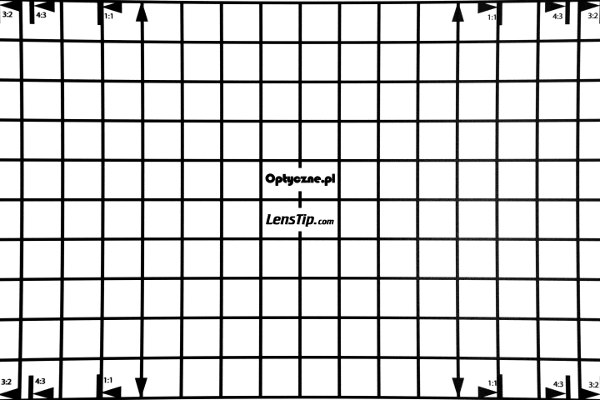

Canon 5D Mk III, 50 mm
Canon EF 24-105 mm f/4L IS II USM  - Distortion
Canon 5D Mk III, 70 mm
Canon EF 24-105 mm f/4L IS II USM  - Distortion

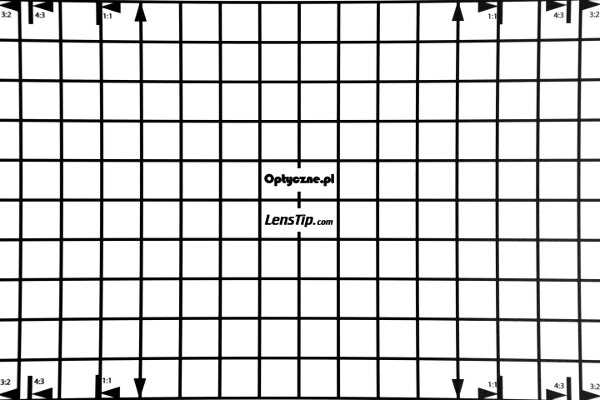

Canon 5D Mk III, 85 mm
Canon EF 24-105 mm f/4L IS II USM  - Distortion

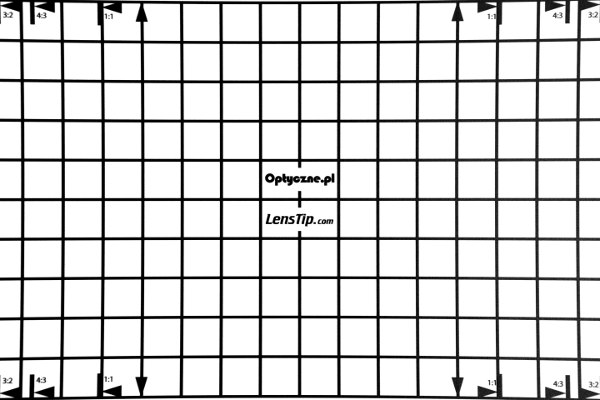

Canon 5D Mk III, 105 mm
Canon EF 24-105 mm f/4L IS II USM  - Distortion
