Canon EF 24-105 mm f/4L IS II USM

14 March 2017
Arkadiusz Olech

8. Vignetting

First, let’s check the performance of the Canon EF 24–105 mm f/4L IS II USM on the smaller APS-C sensor of the Canon 50D – appropriate thumbnails are shown below.

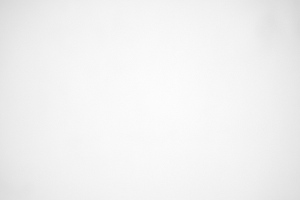

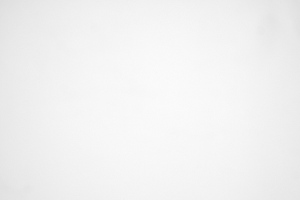

Canon 50D, 24 mm, f/4.0 Canon 50D, 24 mm, f/5.6
Canon EF 24-105 mm f/4L IS II USM  - Vignetting Canon EF 24-105 mm f/4L IS II USM  - Vignetting

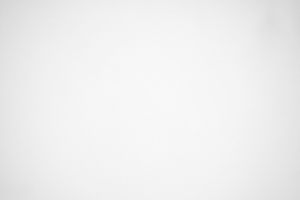

Canon 50D, 40 mm, f/4.0 Canon 50D, 40 mm, f/5.6
Canon EF 24-105 mm f/4L IS II USM  - Vignetting Canon EF 24-105 mm f/4L IS II USM  - Vignetting

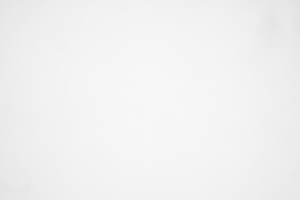

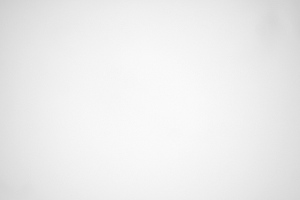

Canon 50D, 70 mm, f/4.0 Canon 50D, 70 mm, f/5.6
Canon EF 24-105 mm f/4L IS II USM  - Vignetting Canon EF 24-105 mm f/4L IS II USM  - Vignetting

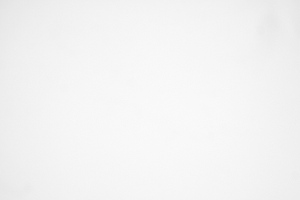

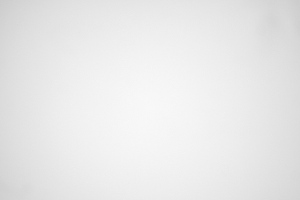

Canon 50D, 105 mm, f/4.0 Canon 50D, 105 mm, f/5.6
Canon EF 24-105 mm f/4L IS II USM  - Vignetting Canon EF 24-105 mm f/4L IS II USM  - Vignetting


It is clear that there are no problems whatsoever. Only at the maximum relative aperture you might get a chance to notice any vignetting at all – in that case at 24, 40, 70 and 105 mm we got respectively 13% (−0.41 EV), 13% (−0.42 EV), 15% (−0.48 EV) and 16% (−0.51 EV). On stopping down the aperture to f/5.6 you see the vignetting decrease to an imperceptible level of 7–10%.

Now let’s see how the situation changes on a much more demanding full frame – below we present photos shot with the lens attached to the Canon EOS 5D Mark III.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

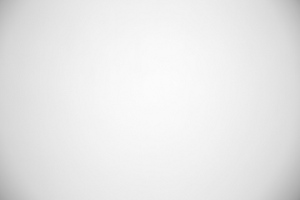

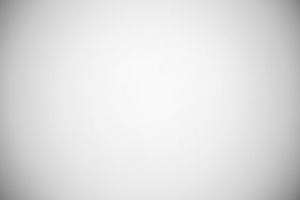

Canon 5D MkIII, 24 mm, f/4.0 Canon 5D MkIII, 24 mm, f/5.6
Canon EF 24-105 mm f/4L IS II USM  - Vignetting Canon EF 24-105 mm f/4L IS II USM  - Vignetting

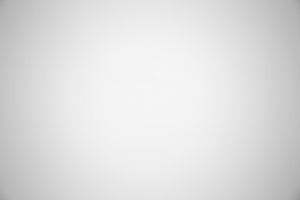

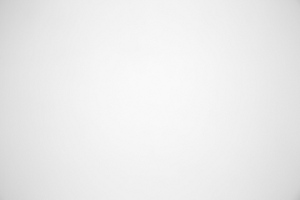

Canon 5D MkIII, 40 mm, f/4.0 Canon 5D MkIII, 40 mm, f/5.6
Canon EF 24-105 mm f/4L IS II USM  - Vignetting Canon EF 24-105 mm f/4L IS II USM  - Vignetting
Canon 5D MkIII, 70 mm, f/4.0 Canon 5D MkIII, 70 mm, f/5.6
Canon EF 24-105 mm f/4L IS II USM  - Vignetting Canon EF 24-105 mm f/4L IS II USM  - Vignetting

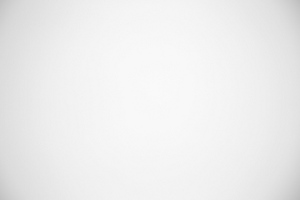

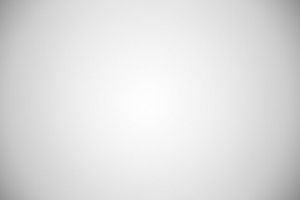

Canon 5D MkIII, 105 mm, f/4.0 Canon 5D MkIII, 105 mm, f/5.6
Canon EF 24-105 mm f/4L IS II USM  - Vignetting Canon EF 24-105 mm f/4L IS II USM  - Vignetting


At a difficult combination of wide angle and f/4.0 you lose 47% (−1.86 EV) of light in the frame corners. It is a lot but that result still remains better than that of the Sigma 24-105 mm OS and the Canon 24-105 mm STM. What’s interesting, it is exactly the same value as in the case of the Canon EF 24-70 mm f/4L IS USM; mind you its task was easier because of a narrower range of focal lengths. Overall, in this category the tested lens compares favourably to its rivals.

After stopping down the aperture to f/5.6 the vignetting decreases to 33% (−1.14 EV). By f/8.0 and f/11.0 relative apertures we got respectively 25% (−0.84 EV) and 22% (−0.70 EV). Further stopping down didn’t have any measureable influence on vignetting.

At 40 mm focal length the vignetting was lower than at 24 mm and by the maximum relative aperture it amounted to 34% (−1.18 EV); then it decreased to 18% (−0.59 EV) on stopping down the aperture to f/5.6. Another stopping down by 1 EV meant a lower brightness loss in the frame corners amounting to 14% (−0.43 EV).

A slight increase of vignetting level can be observed at the longer end of the focal lengths spectrum. At 70 mm and by f/4.0 that aberration reached 42% (−1.56 EV); then it decreased to 23% (−0.75 EV) and 12% (−0.38 EV) by f/5.6 and f/8.0. At a combination of 105 mm and f/4.0 aperture we got 41% (−1.54 EV); that level decreased to 22% (−0.72 EV) by f/5.6 and to 10% (−0.31 EV) by f/8.0.

Even though the vignetting levels at longer focal lengths can be hardly called low, the tested Canon still fared better than the rival Sigma.

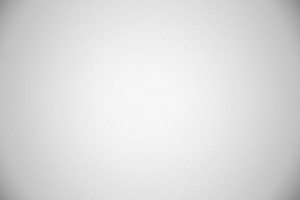

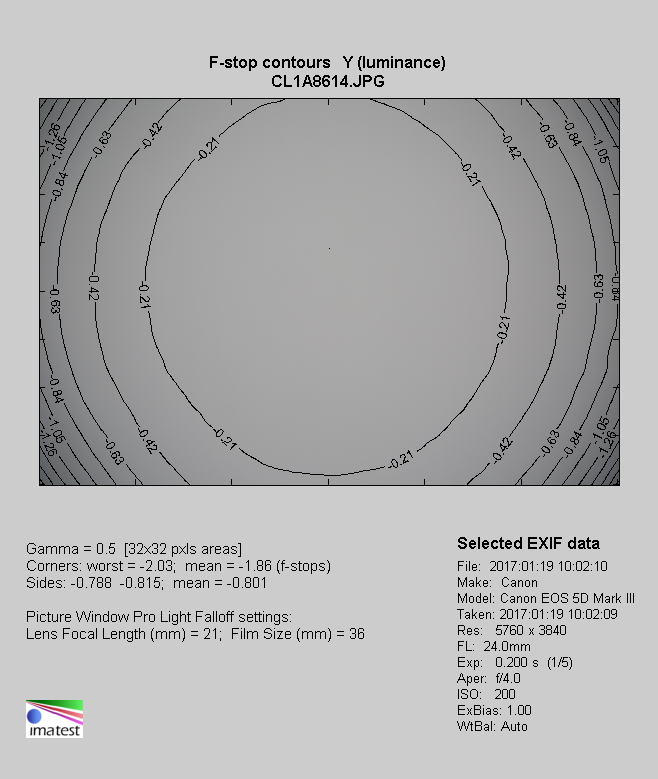

Canon 5D Mk III, 24 mm, f/4.0
Canon EF 24-105 mm f/4L IS II USM  - Vignetting
Canon 5D Mk III, 40 mm, f/4.0
Canon EF 24-105 mm f/4L IS II USM  - Vignetting

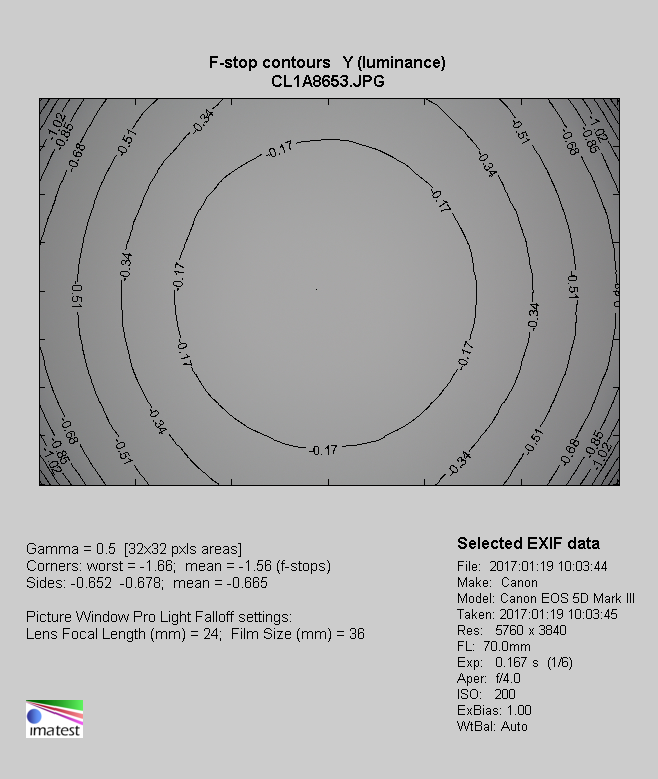

Canon 5D Mk III, 70 mm, f/4.0
Canon EF 24-105 mm f/4L IS II USM  - Vignetting

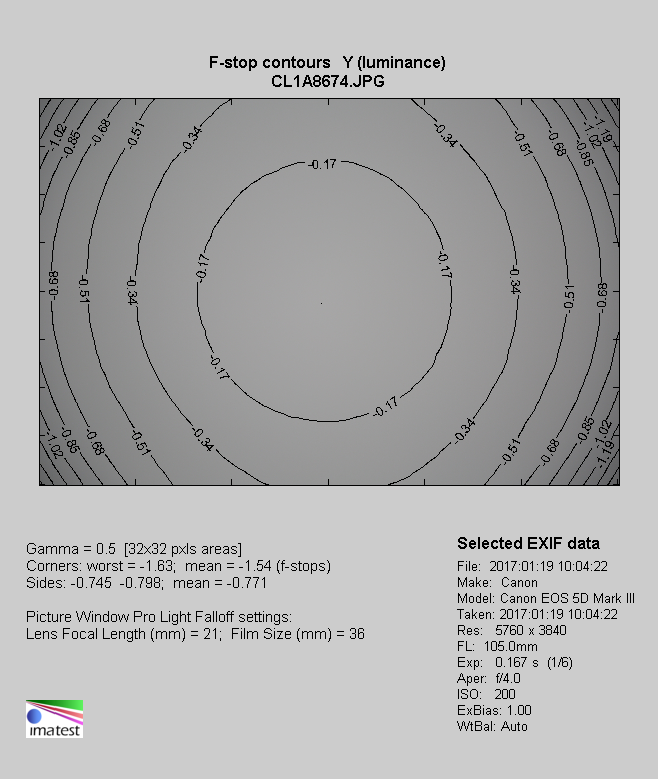

Canon 5D Mk III, 105 mm, f/4.0
