Lens review

Panasonic Leica DG Summilux 12 mm f/1.4 ASPH

11 July 2017
Arkadiusz Olech

8. Vignetting

Let’s glance at thumbnails below to assess the vignetting performance of the tested lens. We are going to examine JPEG files from the Olympus O-MD E-M5 Mark II.

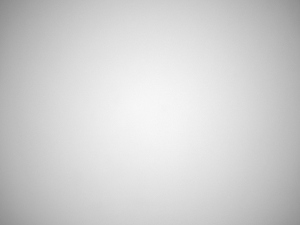

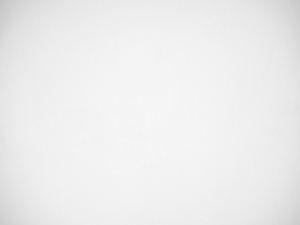

Olympus E-M5 II, f/1.4 Olympus E-M5 II, f/2.0
Panasonic Leica DG Summilux 12 mm f/1.4 ASPH - Vignetting Panasonic Leica DG Summilux 12 mm f/1.4 ASPH - Vignetting

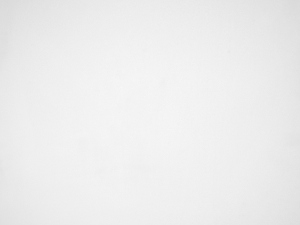

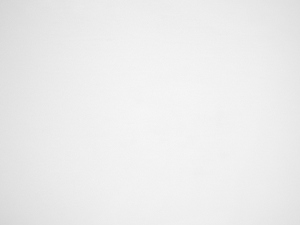

Olympus E-M5 II, f/2.8 Olympus E-M5 II, f/4.0
Panasonic Leica DG Summilux 12 mm f/1.4 ASPH - Vignetting Panasonic Leica DG Summilux 12 mm f/1.4 ASPH - Vignetting


At the maximum relative aperture the vignetting is distinct, reaching 41% (−1.53 EV). Still the result is not especially high if you compare it to similar devices designed for bigger sensors. The Fujinon XF 16 mm f/1.4 R WR lost as much as 49% light in corners and the Canon EF 24 mm f/1.4L II USM as much as 78%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

A very swift decrease of vignetting on stopping down is another asset of the Panaleica. By f/2.0 its level is just 17% (−0.55 EV), and by f/2.8 it becomes almost imperceptible, amounting to 10% (−0.29 EV).

Vignetting level for RAW files seems to be just slightly higher than for JPEG files. A difference amounting to 1-3% mainly stems from cropping JPEGs after distortion correction.

Below we present averaged out values of brightness loss shown in concentric circles as you move further away from the frame centre. The numerical value for every image, expressed in percents, shows the area limited from the top and right by 100% and from the bottom by the presented curve. The area indicates how much light overall is lost due to the vignetting effect. Please don’t mix these percentages with the values given at the beginning of the chapter because they aren’t directly connected.

Panasonic Leica DG Summilux 12 mm f/1.4 ASPH - Vignetting

f/1.4 f/2 f/2.8

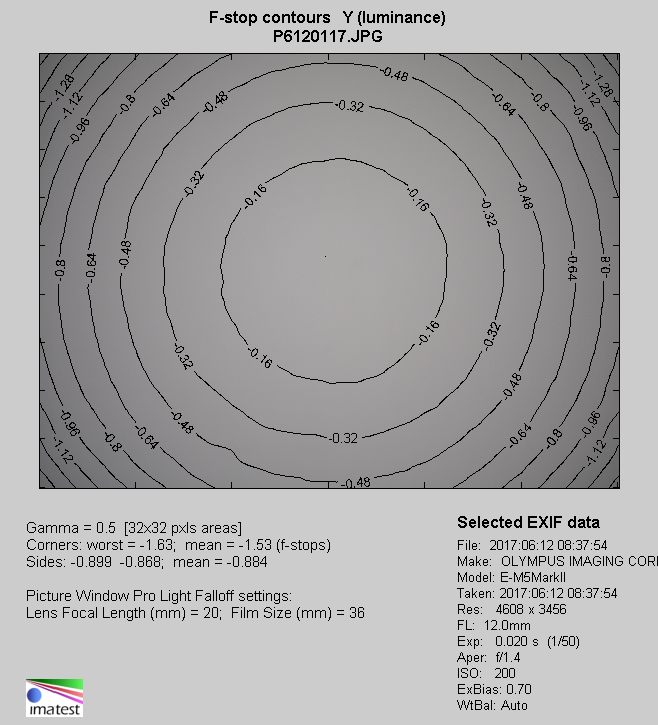

Olympus O-MD E-M5 II, JPEG, f/1.4
Panasonic Leica DG Summilux 12 mm f/1.4 ASPH - Vignetting
