Panasonic Leica DG Summilux 12 mm f/1.4 ASPH

11 July 2017
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

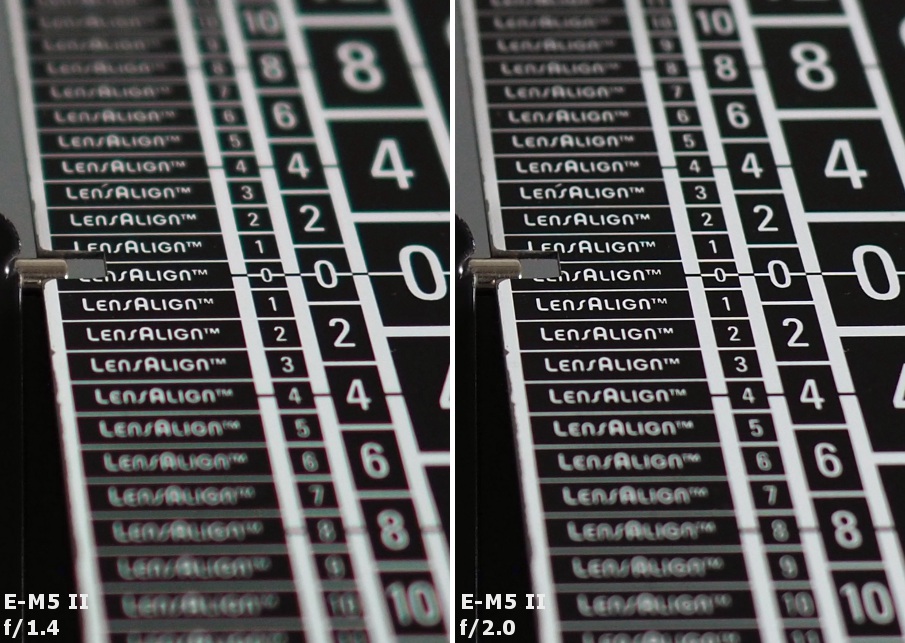

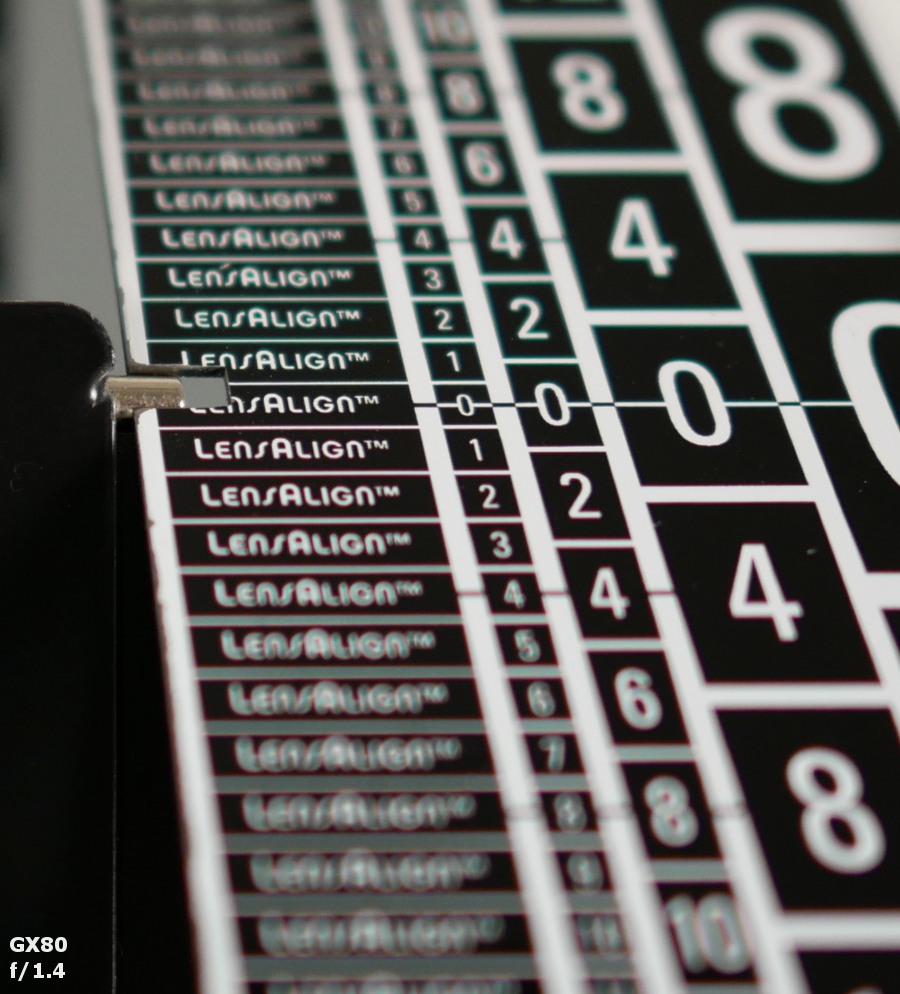

The tested lens experiences noticeable problems with longitudinal chromatic aberration. That aberration is more distinct in the case of the Panasonic GX80 than in the case of the Olympus E-M5 Mark II due to differences in filters transmittance but you can notice it in both cases and it remains quite visible.

Panasonic Leica DG Summilux 12 mm f/1.4 ASPH - Chromatic and spherical aberration

Panasonic Leica DG Summilux 12 mm f/1.4 ASPH - Chromatic and spherical aberration

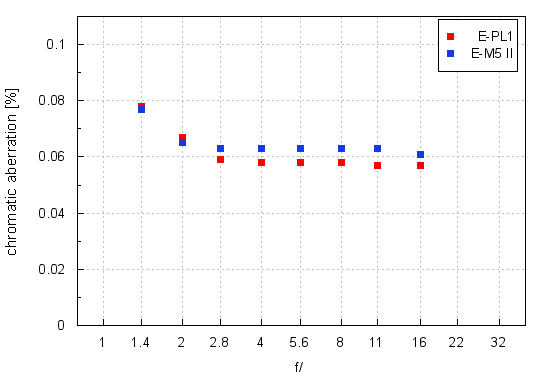

The lateral chromatic aberration is not bothersome at all for a change and the graph below shows it pretty well.
Panasonic Leica DG Summilux 12 mm f/1.4 ASPH - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

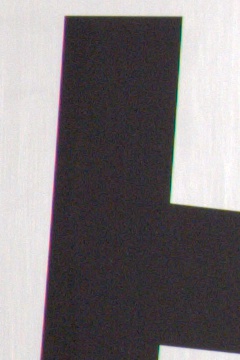

Its highest level can be observed at the maximum relative aperture where we got almost 0.08%; still for most of other apertures the results were closer to 0.06% so you deal here with values we consider to be low.

Olympus E-PL1, RAW, f/1.4 Olympus E-PL1, RAW, f/5.6
Panasonic Leica DG Summilux 12 mm f/1.4 ASPH - Chromatic and spherical aberration Panasonic Leica DG Summilux 12 mm f/1.4 ASPH - Chromatic and spherical aberration


Spherical aberration

First photos from this chapter don’t feature any ‘focus shift’ effects so the tested lens cannot have big spherical aberration problems. Still the circles of light, shown below, prove that aberration is not corrected in a perfect way – they are not identical, the one we got before the focus has darker centre and the one after the focus is lighter inside.

Olympus E-M5 II, f/1.4, in front of Olympus E-M5 II, f/1.4, behind
Panasonic Leica DG Summilux 12 mm f/1.4 ASPH - Chromatic and spherical aberration Panasonic Leica DG Summilux 12 mm f/1.4 ASPH - Chromatic and spherical aberration
