Lens review

Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH.

21 August 2017
Arkadiusz Olech

6. Distortion

As long as you work with JPEG files the distortion won’t be very bothersome – the photos below prove that much.

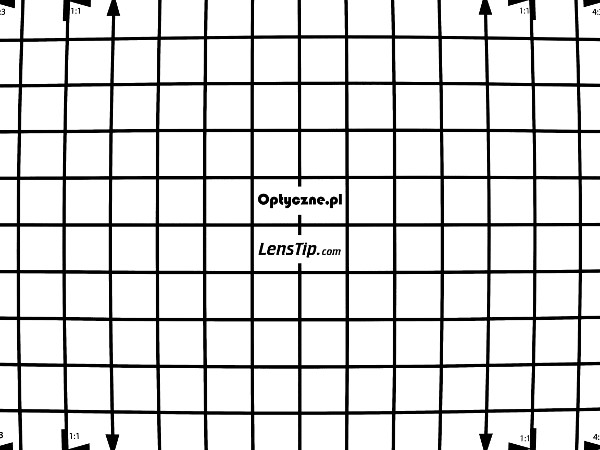

Olympus E-M5 II, JPEG, 8 mm
Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Distortion

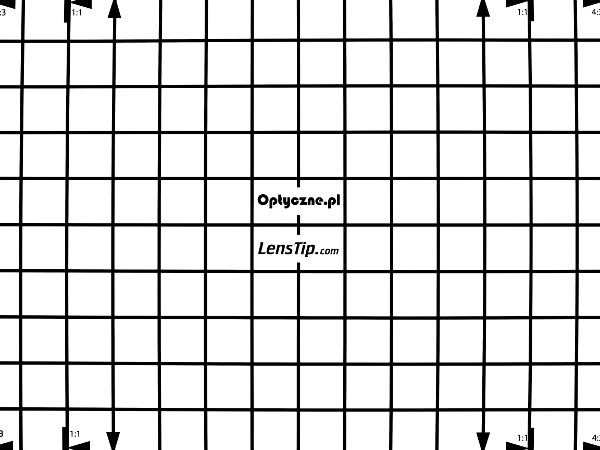

Olympus E-M5 II, JPEG, 10 mm
Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Distortion

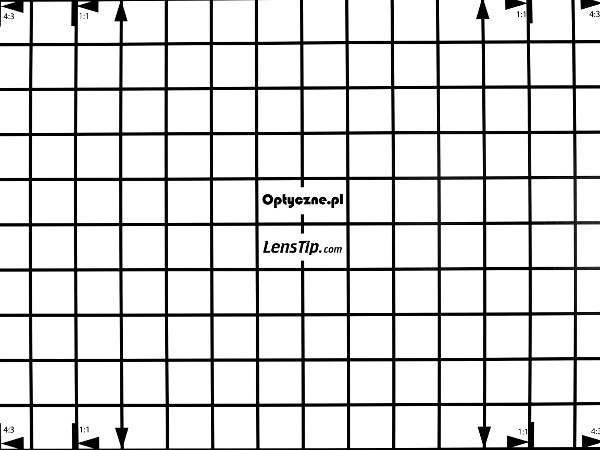

Olympus E-M5 II, JPEG, 13 mm
Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Distortion

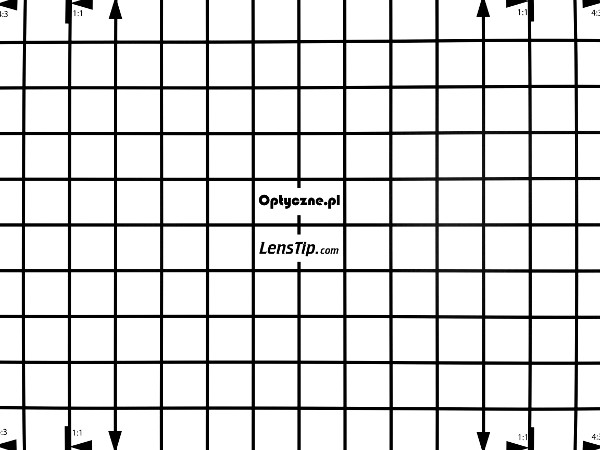

Olympus E-M5 II, JPEG, 18 mm
Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Distortion

At the shortest focal length you deal with a ‘barrel’ variety of that aberration, amounting to −1.59%. At 10 mm it decreases to an imperceptible level of −0.37%. At 13 mm you still deal with barrel distortion but, within the margin of error, the results are equal with zero (official result being −0.14%). Pincushion distortion is negligible as well, amounting to +0.32; you can observe that effect only at the maximum focal length.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

After passing to RAW files the situation changes dramatically and photos below show it very well.

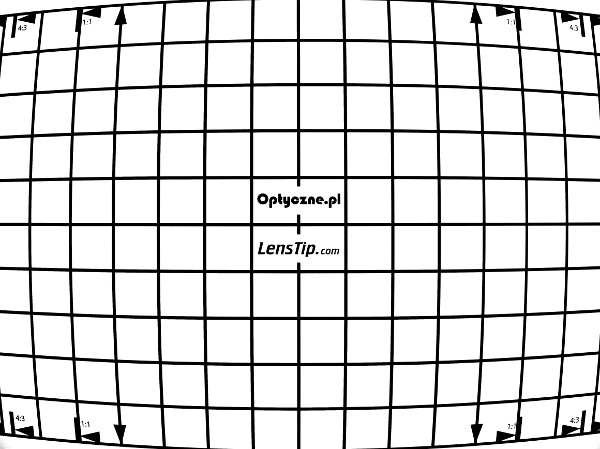

Olympus E-M5 II, RAW, 8 mm
Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Distortion

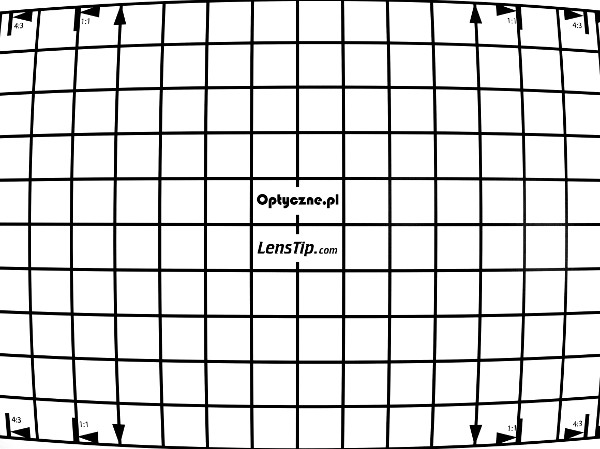

Olympus E-M5 II, RAW, 10 mm
Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Distortion

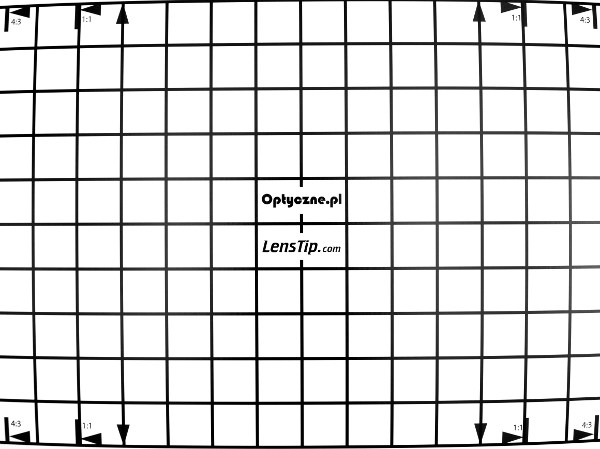

Olympus E-M5 II, RAW, 13 mm
Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Distortion

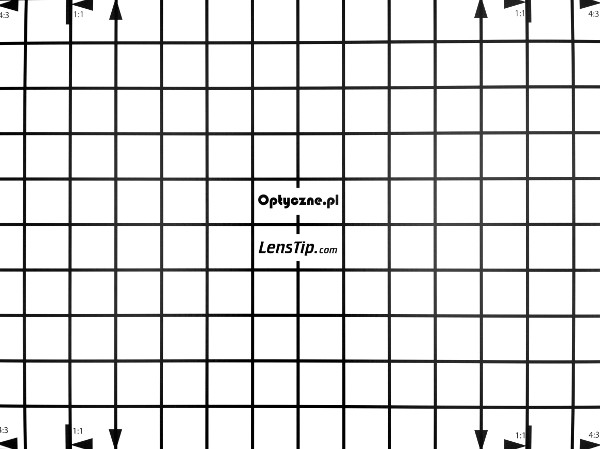

Olympus E-M5 II, JPEG, 18 mm
Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Distortion

At 8 mm distortion is huge. You deal with its barrel variety and its level amounts to as much as −6.59%. Of course it can be corrected but only at a cost. Firstly, the field of view has to be cropped but it is a smaller problem than you might think because, fortunately, the Micro 4/3 optics producers state fields of view already after distortion correction. Another effect might be a more serious problem, though.

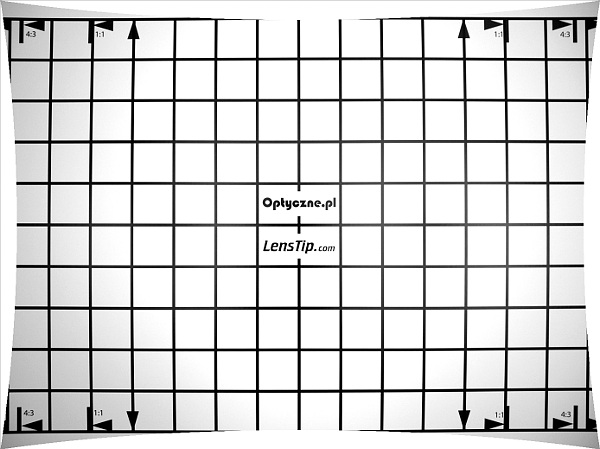

Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Distortion

As you can notice in the photo taken at 10 mm, after distortion correction and image cropping from original 16.1 million pixels, offered by the E-M5 Mark II, you are left with 13.4 million. If you deal with JPEG files or RAW files developed by a program which corrects distortion automatically, almost 3 million pixels have to be added.

Unfortunately the Panaleica’s 8-18 mm distortion level decreases quite slowly with the increase of the focal length. At 10 mm you deal with a still high level of −4.51%. Barrel distortion is also noticeable at 13 mm where it reaches −1.68%. Only at 18 mm you see just slight ‘pincushion’ of +0.32%.
