Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH.

21 August 2017
Arkadiusz Olech

7. Coma, astigmatism and bokeh

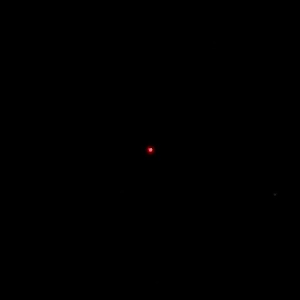

We don’t have the slightest reservations concerning the coma correction of the Panasonic 8-18 mm. The image of a diode, after shifting to the frame corner, increases a bit its size but there are no distinct deformations. Here the lens manages quite well.

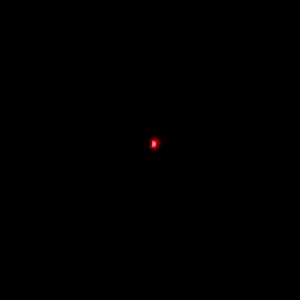

E-M5 II, 8 mm, f/2.8, center E-M5 II, 8 mm, f/2.8, corner
Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh

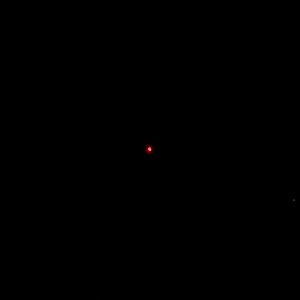

E-M5 II, 13 mm, f/3.5, center E-M5 II, 13 mm, f/3.5, corner
Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh

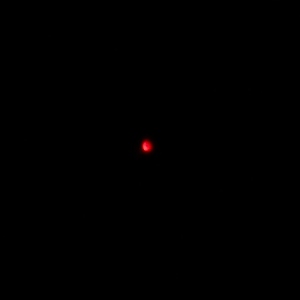

E-M5 II, 18 mm, f/4.0, center E-M5 II, 18 mm, f/4.0, corner
Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh


Astigmatism, understood as an average difference between vertical and horizontal MTF50 function values, amounted to 10% so can be called medium. Still the maximum focal length is the biggest contributor to that value as the astigmatism level at that point reaches 14%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

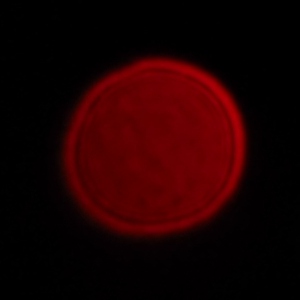

Taking into account the fact that you deal here with an ultra wide-angle zoon lens we cannot criticize the blurry areas too harshly. Only features that stick out in a negative way are a lighter rim and deformations of the circle due to the lens’s mapping. After all out-of-focus areas are not a feature you expect from a lens with such angles of view, additionally offered for a small Micro 4/3 camera format.

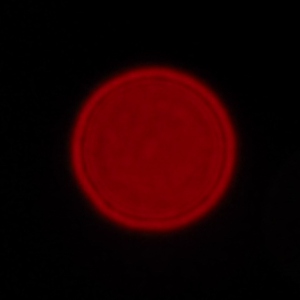

E-M5 II, 18 mm, f/4.0, center E-M5 II, 18 mm, f/4.0, corner
Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh

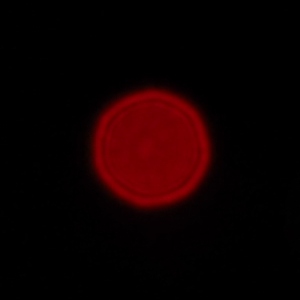

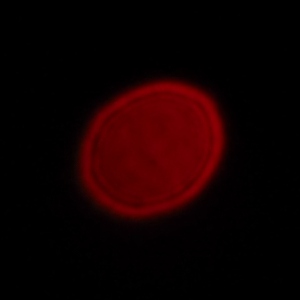

E-M5 II, 18 mm, f/5.6, center E-M5 II, 18 mm, f/5.6, corner
Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh

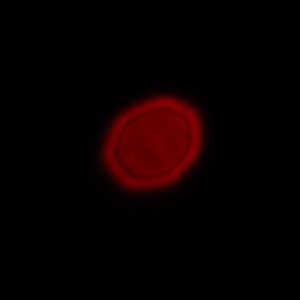

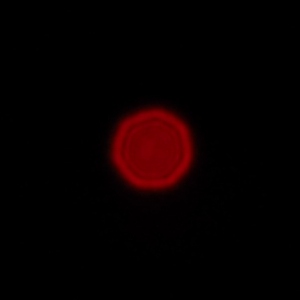

E-M5 II, 18 mm, f/8.0, center E-M5 II, 18 mm, f/8.0, corner
Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh Panasonic Leica DG Vario-Elmarit 8-18 mm f/2.8-4 ASPH. - Coma, astigmatism and bokeh
